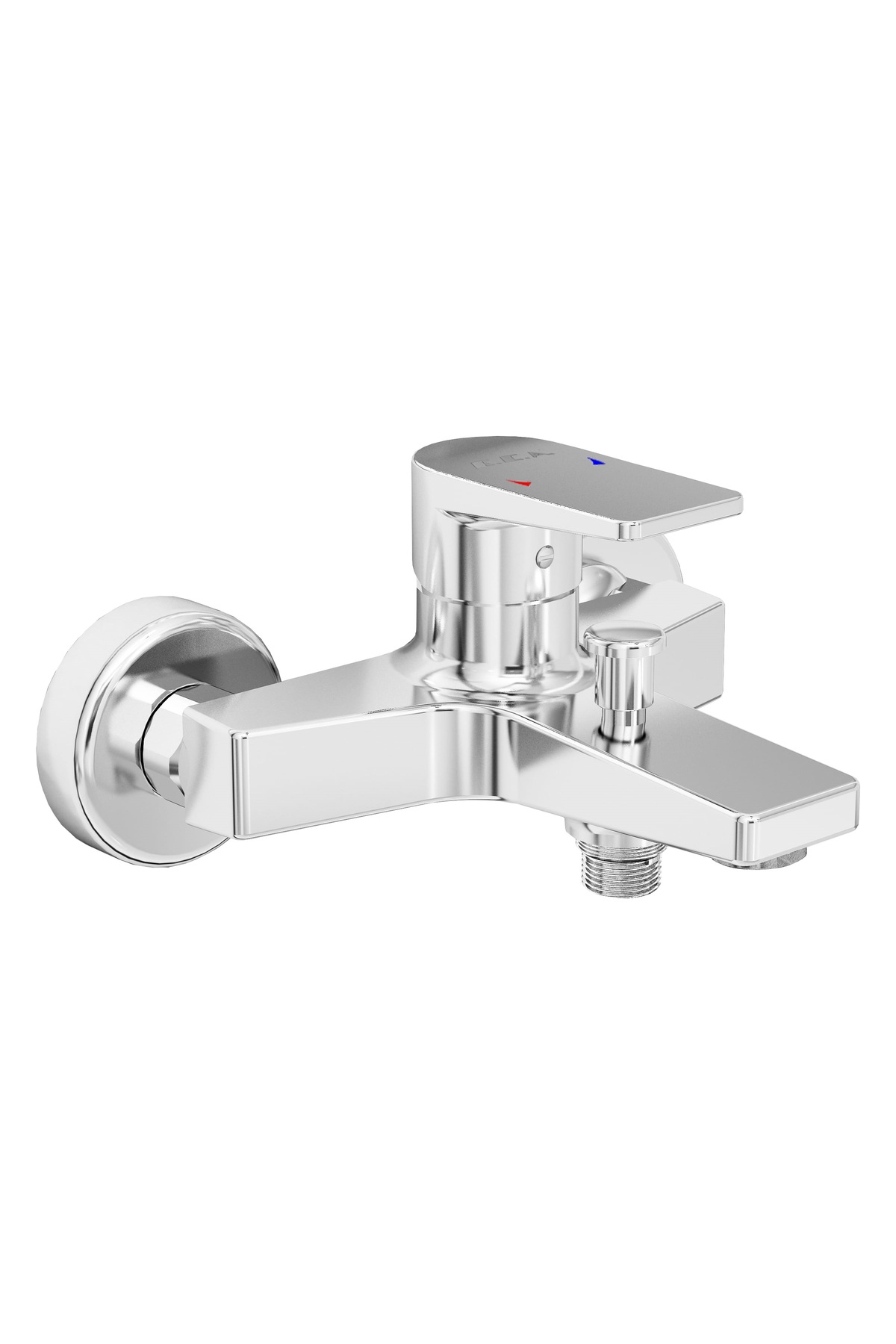

ECA Dalia Bathroom Faucet   Product Code: 102102488 Warranty Period: 20 Years Warranty.

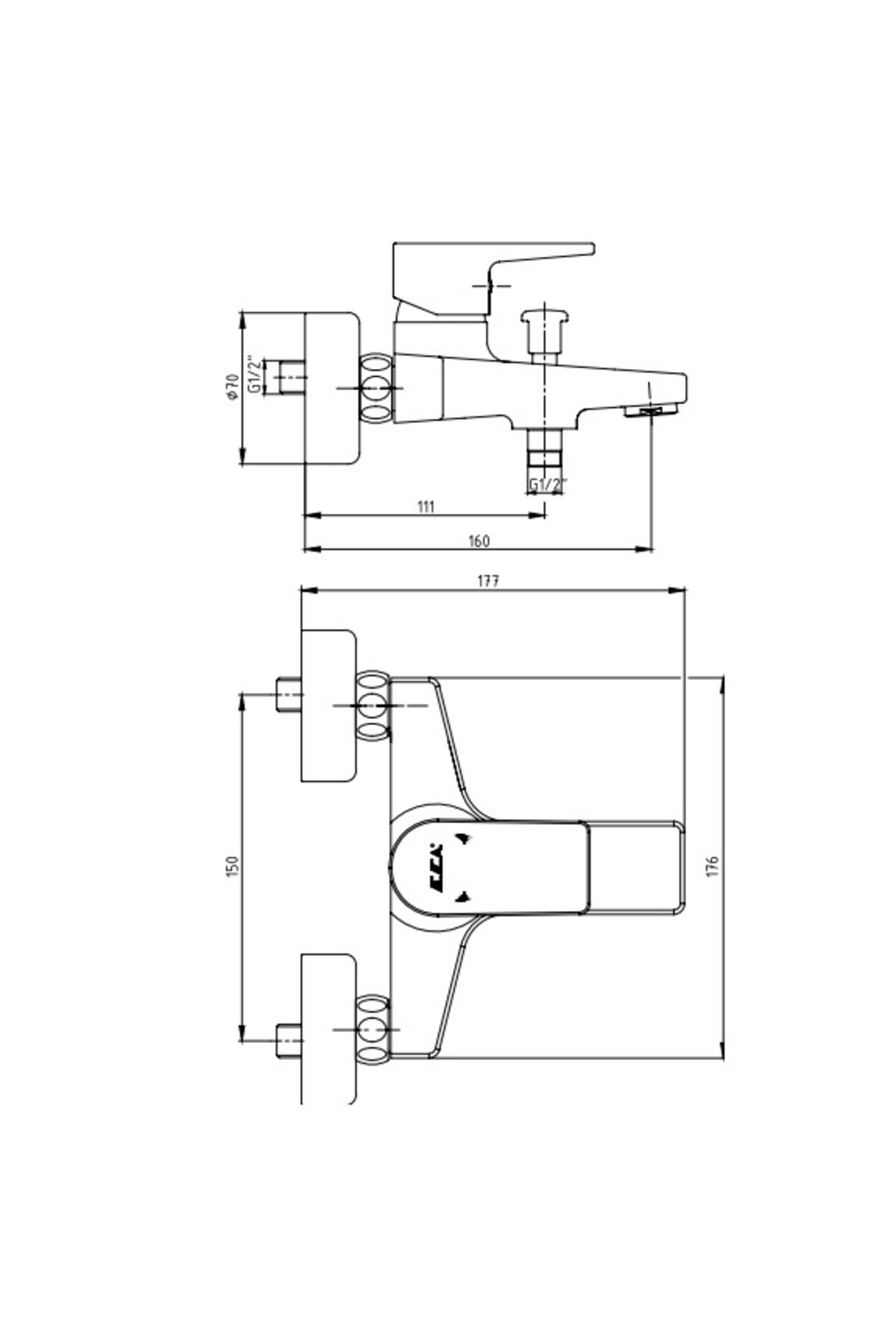

Authorized Service No: 444 0 322     Technical Specifications   Nozzle Length is 160 mm.

Upper Tool Connection is G 1/2.

Lockable Diverter     Coating   Chrome     Before Mounting Review the manual before mounting your armature in its place.

Keep your manual for the warranty period of your armature.

Keep your fixture in its original packaging until it is installed.

If the mains pressure is above 5 bar, working at this pressure for a long time will shorten the life of your armature.

Therefore, to the installation entrance E.

C-

Use A pressure reducing regulator.

To the entrance of the installation where you will connect your armature.

C-

Install A filter.

Before connecting your armature to the installation, clean the inside of the pipes by draining some water.

To connect the sink and sink faucets to the installation E.

C-

Use intermediate tap with A filter.

Do not use chrome-plated aramatures in places such as hot springs, etc.

Do not leave your armature attached for a long time in buildings under construction, such as construction mortar, lime, etc.

materials can be poured on the armature.

In addition, chemicals in the air may combine with the humidity of the air and cause deterioration on the luminaire surface.

If such materials fall on the armature during construction and stick to it, do not scrape them using hard objects.

If the luminaire will stay in the buildings under construction for a long time, put a bag on the luminaire and isolate it from the middle.

Your luminaire is designed to operate between 5°C and 65°C ambient temperature.

Take the necessary precautions to prevent your armature from being affected by frost, especially under environmental conditions below 5°C.

Do not let the switch, especially the pipe switch, come into contact with the surfaces of your armature during the installation of your armature.

For easy and smooth installation of bathroom sink and sink faucets on the wall, use an installation template during the installation of pipelines.

Never use a key when mounting the flexible connection hoses of the sink and sink faucets to the body.

The sealing element (O-ring) at the end of the hoses entering the body is sufficient for sealing.

Make sure that the hoses are properly mounted on the body.

After connecting your armatures to the installation, open the valve and observe whether there is a leakage at the connection points of the armature.

If there is a leakage atthe connection points, make a proper arrangement to seal the connection.

Do not use the luminaire without checking for leakage.

During use, wiping and drying your fixture with a soapy cloth is sufficient for cleaning.

In places where water hardness is high, you can prevent gray spots on the surface by wiping the luminaire surface more frequently.

To clean the luminaire surfaces, do not use green sponges or dishwashing strands on one side containing abrasive and hard materials, or cleaning agents containing acid.

Wipe your fixtures once every six months or with a soft cloth when necessary.

In case of malfunctions that may arise from all kinds of environmental conditions and usage errors, the original E.

C-

Use spare parts.

Cleaning The cleaning process is the process of cleaning the surface from foreign substances.

Chrome surfaces can maintain their appearance for a long time with regular cleaning and maintenance.

Dust-dried stains on the surface and residues that create similar pollution should be cleaned with a wet cloth.

If the cleaning water is calcareous, it may stain the chrome surface.

For this, a cloth that is not hard-grained and fibrous has to be used during cleaning.

Liquid cleaners can be used to clean glass surfaces for fingerprints remaining on the surface of the chromed material.

After cleaning, the surface must be completely dried.

The use of chlorine-containing chemicals, especially salt spirit and bleach, should be strictly avoided for cleaning.
