User Advantages High flexibility, high economy Power and flexibility for screwing and drilling 2-speed gearbox provides high efficiency and excellent torque Electronic Cell Protection for longer battery life and increased durability Technical Specifications Battery voltage* 12 V Weight without battery 0.9 kg Torque (soft/hard/max.

) 14/30/-Nm Idle speed (1st gear / 2nd gear) 0 – 400 / 0 – 1,500 rpm Battery type Lithium Ion Pulse number, max.

22,500 pulses/min Chuck diameter, min.

Max.

1,5 / 10 mm Torque steps 20+2 Insert input Three-jaw chuck Drilling diameter Drilling diameter in wood, max.

Drilling diameter at 20 mm Steel, max.

Drilling diameter at 10 mm Wall, max.

8 mm Screw diameter, max.

7 mm Screwing diameter Drilling diameter in wood, max.

Drilling diameter at 20 mm Steel, max.

Drilling diameter at 10 mm Wall, max.

8 mm Screw diameter, max.

7 mm Total vibration value (Drilling in metal) Vibration emission value ah 1.4 m/s² Tolerance K 1.5 m/s² Total vibration value (Impact drilling in wall) Vibration emission value ah 10.2 m/s² Tolerance K 1.5 m/s² Total vibration value (Screwing) Vibration emission value ah 0.8 m/s² Tolerance K 1.5 m/s² * Highlighted Data The A-rated noise level of the power tool typically has the following values: Sound pressure level 82.5 dB(A)

Sound performance level 93.5 dB(A).

K uncertainty= 3 dB.

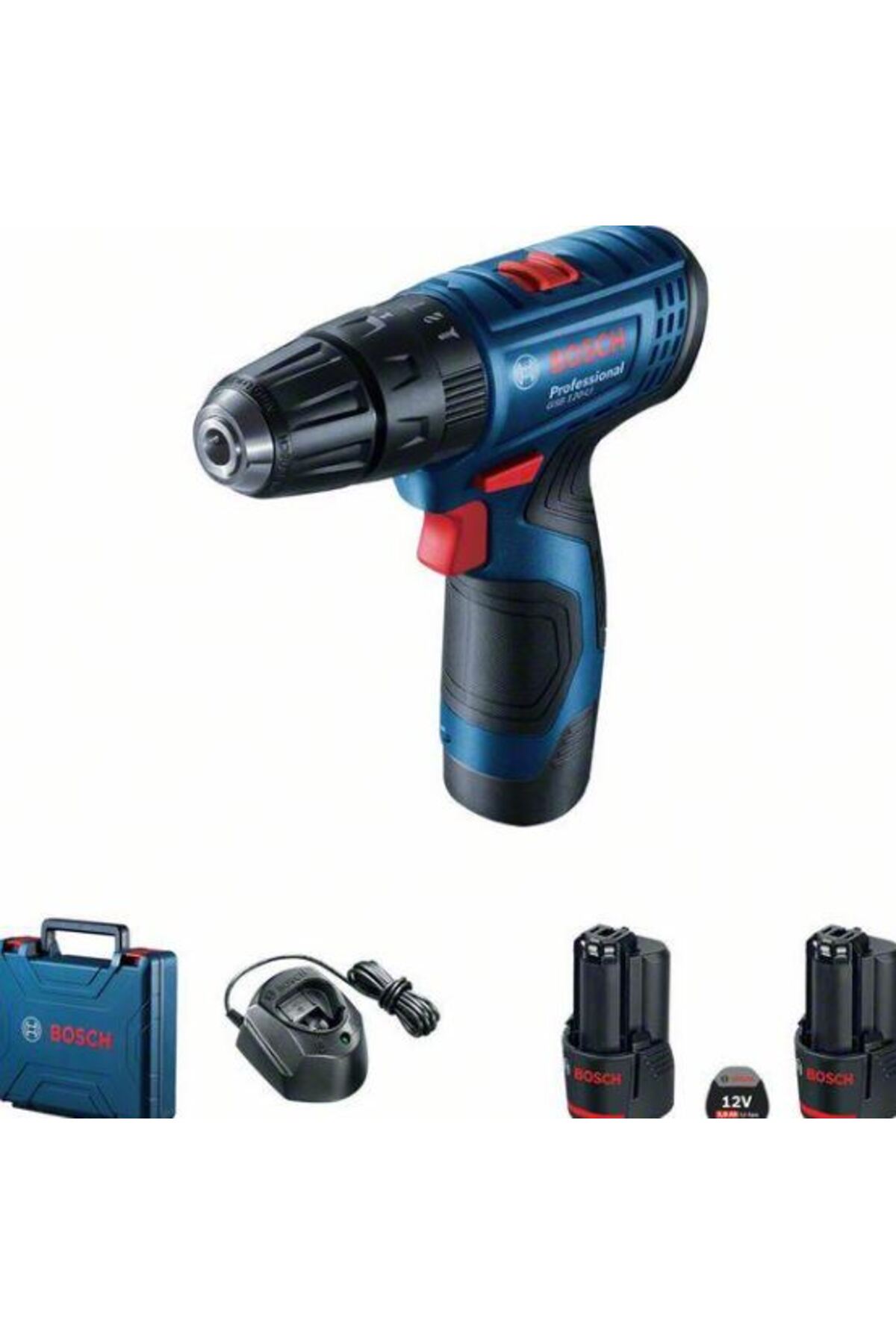

Package Includes 2 x batteries GBA 12V 2.0Ah 1 600 Z00 02X GAL 1210 CV Professional charger Tool case
