Precise Cut Line (PCL): Precise shadow cut line that does not require readjustment thanks to the smartly placed led.
-
Soft Start: For long service life.
-
Disc Braking System: Fast braking system for increased safety with quick stopping of the tool in use.
-
Rotary table with quick and precise adjustment of common angles using stop points.
-
Large cutting capacity thanks to the radial cutting function for large workpieces.
-

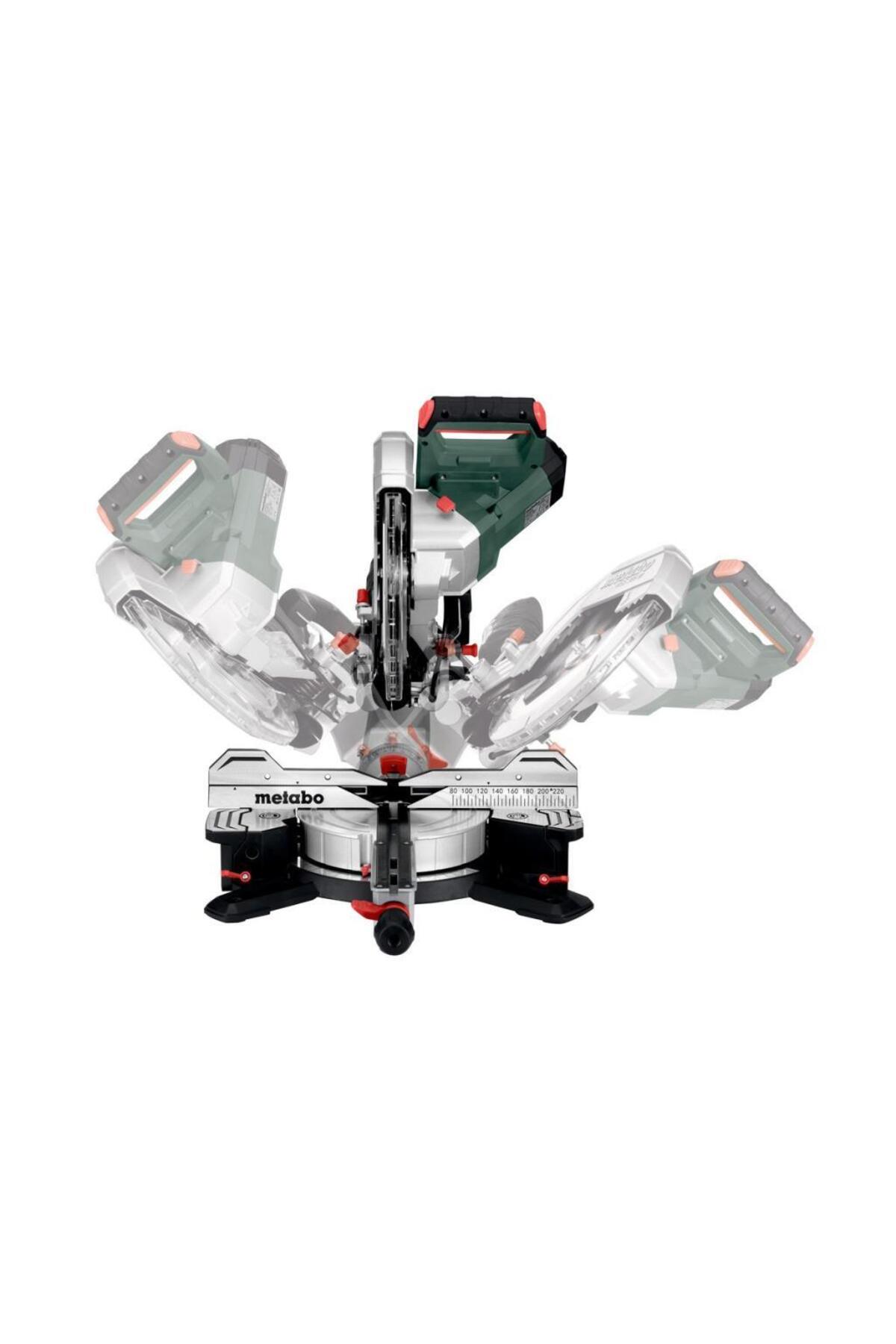

Saw blade tilt up to 47° on both sides for maximum flexibility.
-
Robust aluminum die-cast design for the highest demands.
-

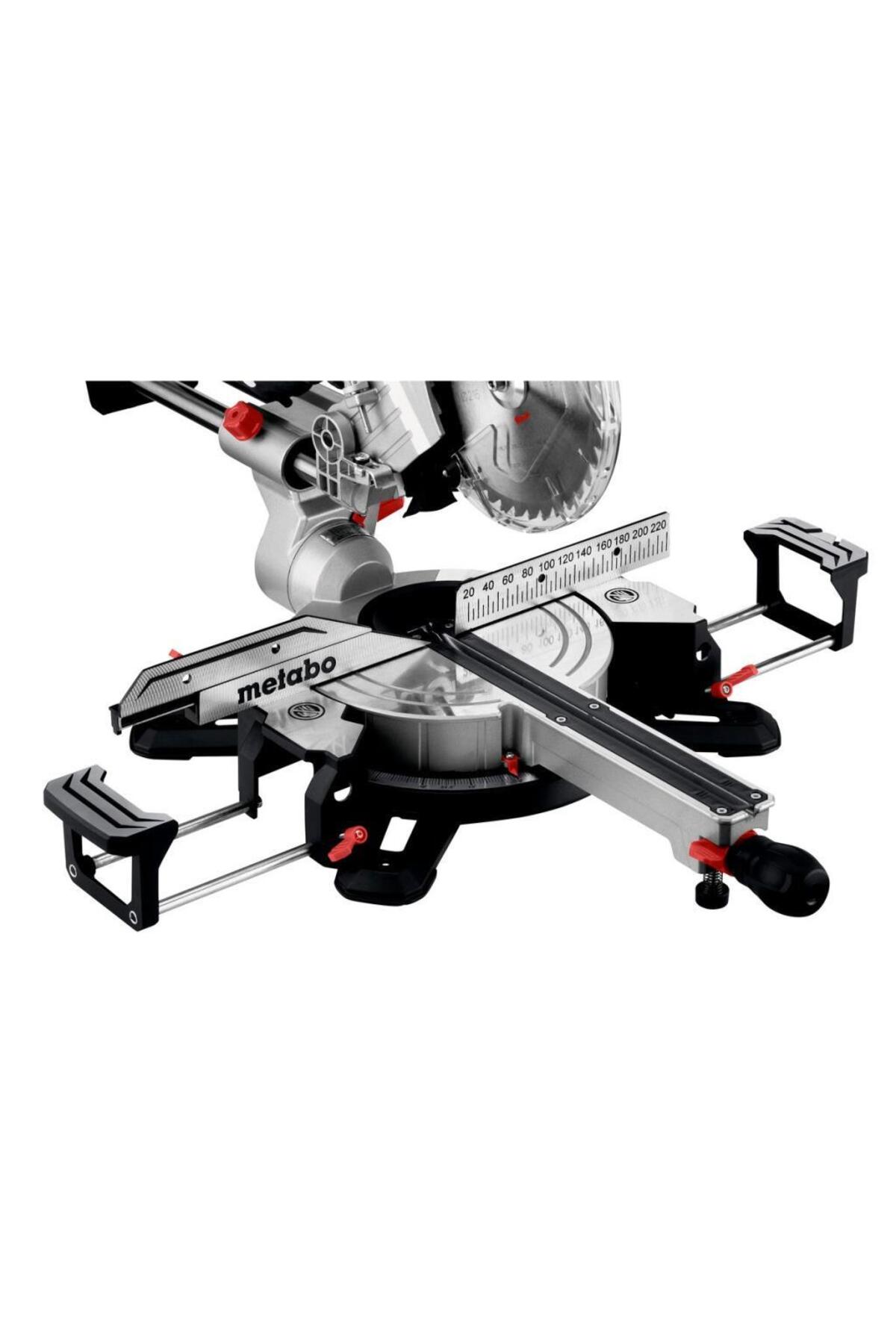

Extendable table width extensions can also be removed to put under very long workpieces.
-
Quick-acting clamp for secure fixing of workpiece from top or front.
-
Ergonomic handle for carrying with one or two hands.
-
Technical SpecificationsInput Power (S6 20%):2.000 W Operating Voltage:220-240 V / 50-60 HzNo load Speed:3.700 rpm.
-
/min
-
Turnover on Load:3,000 rpm.
-
/min
-
Max.
-
Cutting Speed:59 m/sCutting Width 90º / 45º:305 / 215 mmCutting Depth 90º / 45º:110 / 67 mmBlade Size: 305x30 mmBlade Rotation Size (Right/Left):50º /60ºBlade Lay Size (Right/Left): +47º/-47ºBlade Size:345 x 770 mmDimensions: 780x500x657 mmWeight: 18.6 kg Sound EmissionSound Pressure Level:87 dB(A)Sound Power Level (LwA):100 dB(A)Measurement Uncertainty K:3 dB(A)
