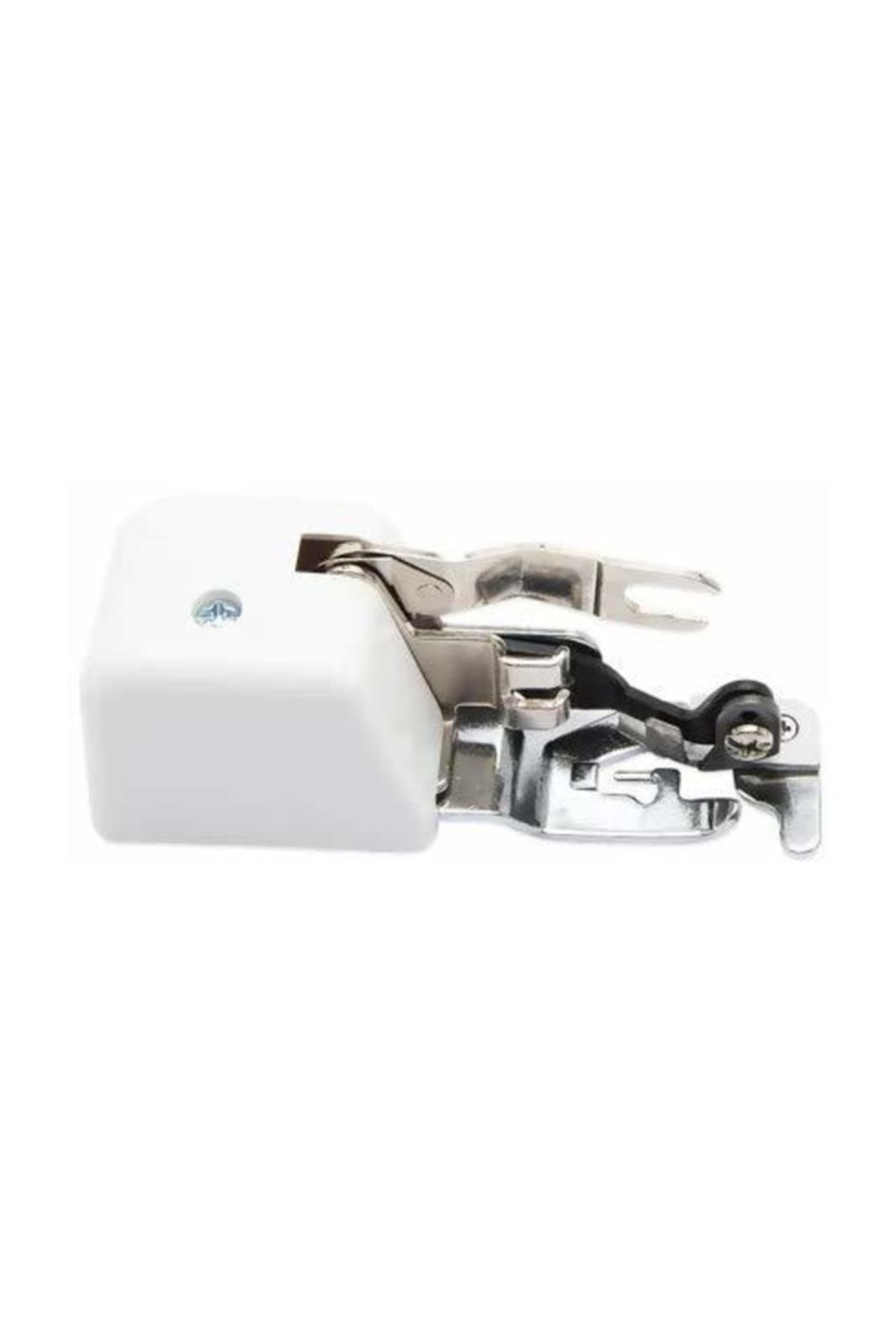

Overlock Foot with Knife * Thanks to the knives on the front, it cuts the fabric from the front, and the zigzag leaf from the back gives the appearance of a smooth overlock stitch.

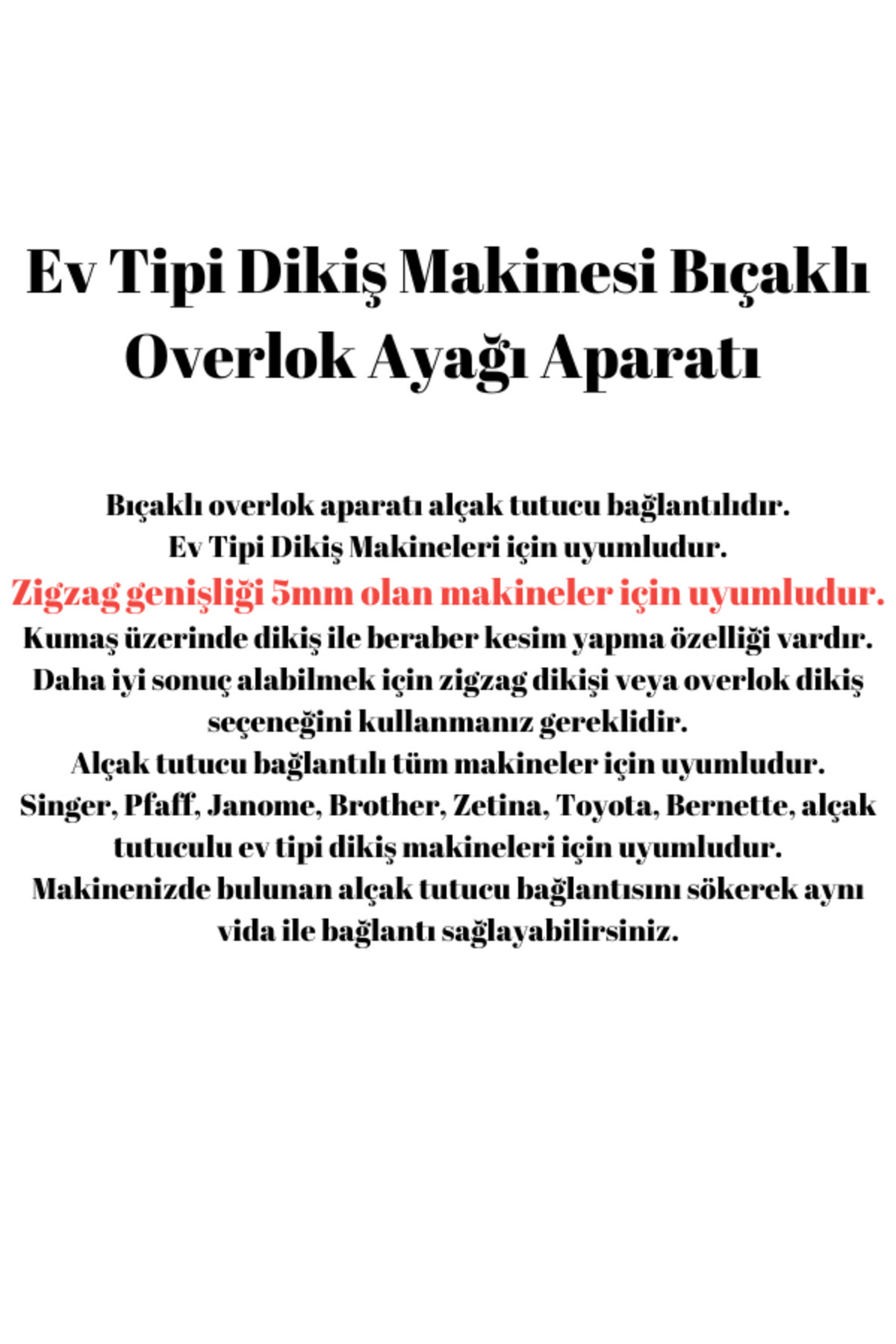

Suitable for simple use The blade overlock bracket has a low holder connection.

Compatible for machines with a zigzag width of 5mm.

It has the feature of cutting with stitching on the fabric.

For better results, you need to use zigzag stitching or overlock stitching option.

Compatible for all machines with low gripper connection.

Suitable for Singer, Pfaff, Janome, Brother, Zetina, Toyota, Bernette, household sewing machines with low grippers.

You can connect with the same screw by removing the low holder connection in your machine.

Overlock Foot with Knife: Household Sewing Machine Overlock Feet ? Overlock Bladed Foot Prices R-CT 10L Spare Parts, Overlock Spare Parts, Household Overlock Spare PartsOVERLOK foot attachment To install the 423S overlock foot, the settings on the machine are first brought to the position shown in the picture.

(zigzag width can be 4-5) Then, the attached feet are removed and brought to the condition shown in the picture.

The overlock leg to be attached The fork part of the overlock leg, which comes to the upper side, is attached to the bar standing in the horizontal position on the machine (as shown by the red line), and the side compression legs of the foot are attached to the outside of the foot-mounted bar in the vertical subject as shown in the picture and the screw is tightened.

After installing the overlock foot, an image will be formed as in the picture.

We installed the overlock foot and came to test, DİKKAT: If it is not installed as shown in the upper picture, do not operate it to prevent damage to your machine, check the process steps and renew it from the beginning. As seen in the picture, placing the fabric after cutting 2 cm will make it easier for the machine to pull the fabric.

Then, as seen in the picture, the fabric is placed.

Stitches are made.

And the result NOTE: In order for the overlock foot to work, the hook on the needle should be removed or tilted downwards.

Product Code: R-CT10L
