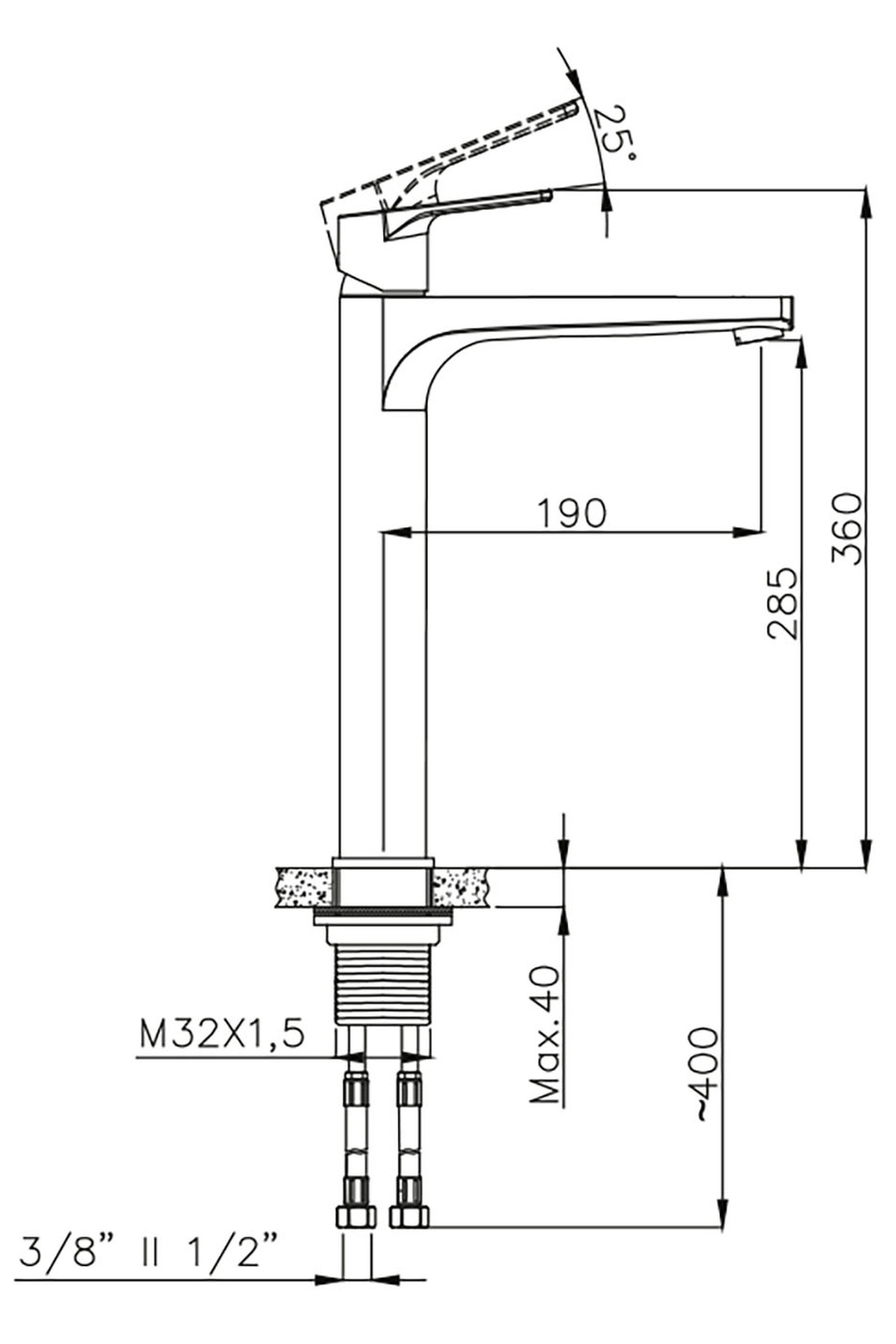

Technical Information Product Standard TS EN 817 (Single Control) Manufacturer Warranty 6 Years (Painted And Coated Products For 2 Years) Color / Finish Chrome Aerator Type M24X1 Male Threaded Flow Rate 7.5 - 9 Lt / Min (3 Bar) Operation Type Ceramic Disc Cartridge Ø35 mm With Leg Direct Flex Inlet Installation Connection Type Countertop Body Raw Material Brass Spout Length 190 mm Spout Height 225 mm Water Connection Flex Dimension 3/8" Water Connection Flex Length 60 cm Number Of Control Handle Single Material Of Control Handle Metal Dimension Of Base Rosette 50 mm x 50 mm Number Of Loom Holes For Assembly 1 Loom Hole Diameter Ø33±1 mm Max.

Loom Thickness 40 mm Max.

Performance Temperature 80°C Suggested Performance Temperature 60°C Max.

Performance Pressure 10 Bar Suggested Performance Pressure 3 Bar Min.

Performance Pressure 0.5 Bar Suggested Min.

Pressure 1 Bar Spout / Pipe Type Fix Product Total Height 330 mm Resources TS EN 817 Certificate
