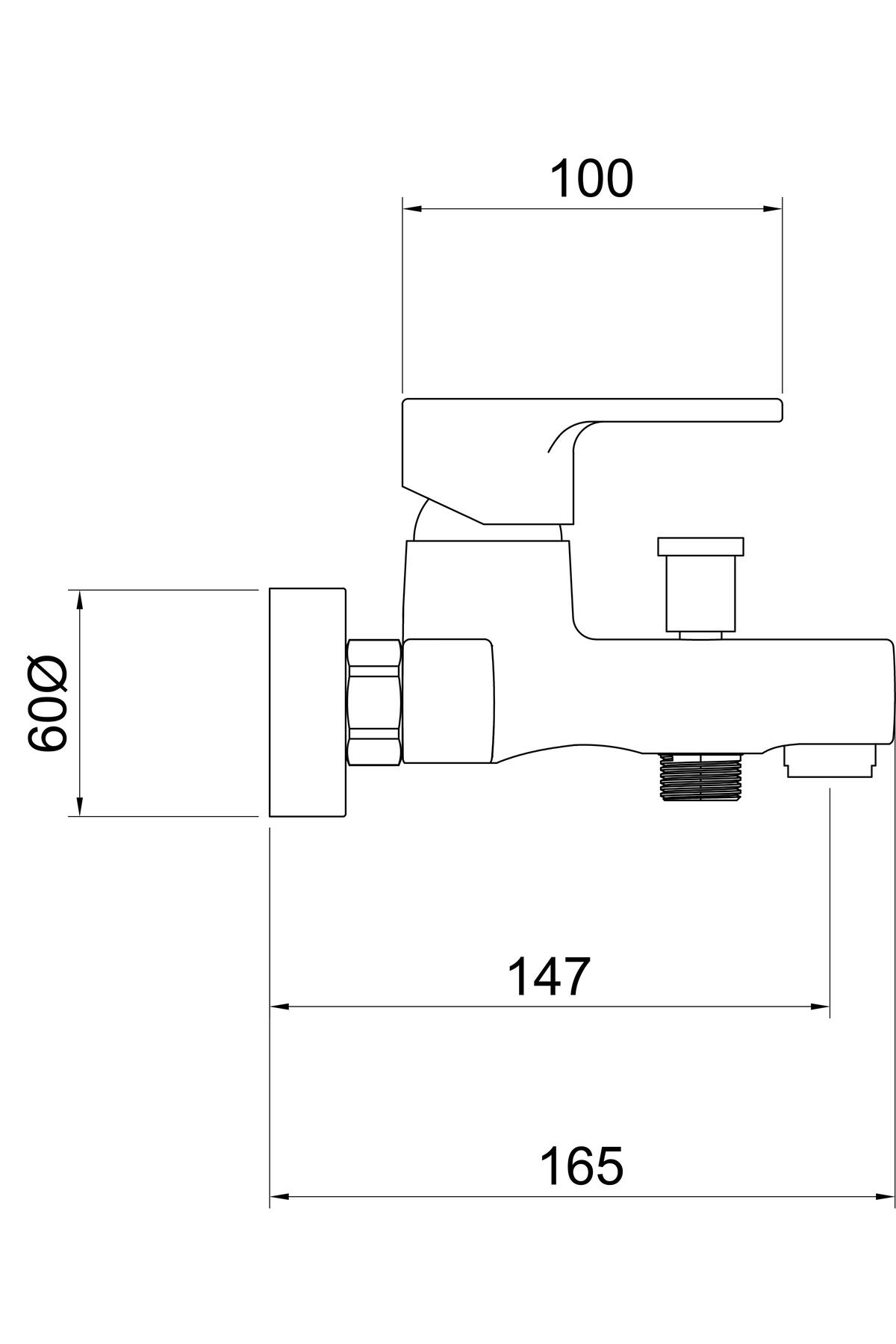

Technical Information Product Standard TS EN 817 (Single Control) Manufacturer Warranty 6 Years (Painted And Coated Products For 2 Years) Color / Finish Chrome Aerator Type M24X1 Male Threaded Flow Rate 7.5 - 9 Lt / Min (3 Bar) Operation Type Ceramic Disc Cartridge Ø35 mm With Leg Acoustic Class U Installation Connection Type From The Wall Body Raw Material Brass Shower Connection G1/2" Wall Connection Axis Dimension 150±1 mm Dimension Of Wall Rosette Ø60 mm Number Of Control Handle Single Material Of Control Handle Metal Shower Diverter Type Automatic 1/2" Wall Connection Thread Type 1/2" Max.

Performance Temperature 80°C Suggested Performance Temperature 60°C Max.

Performance Pressure 10 Bar Suggested Performance Pressure 3 Bar Min.

Performance Pressure 0.5 Bar Suggested Min.

Pressure 1 Bar Product Total Height 100 mm Spout-Wall Distance 168 mmResources
