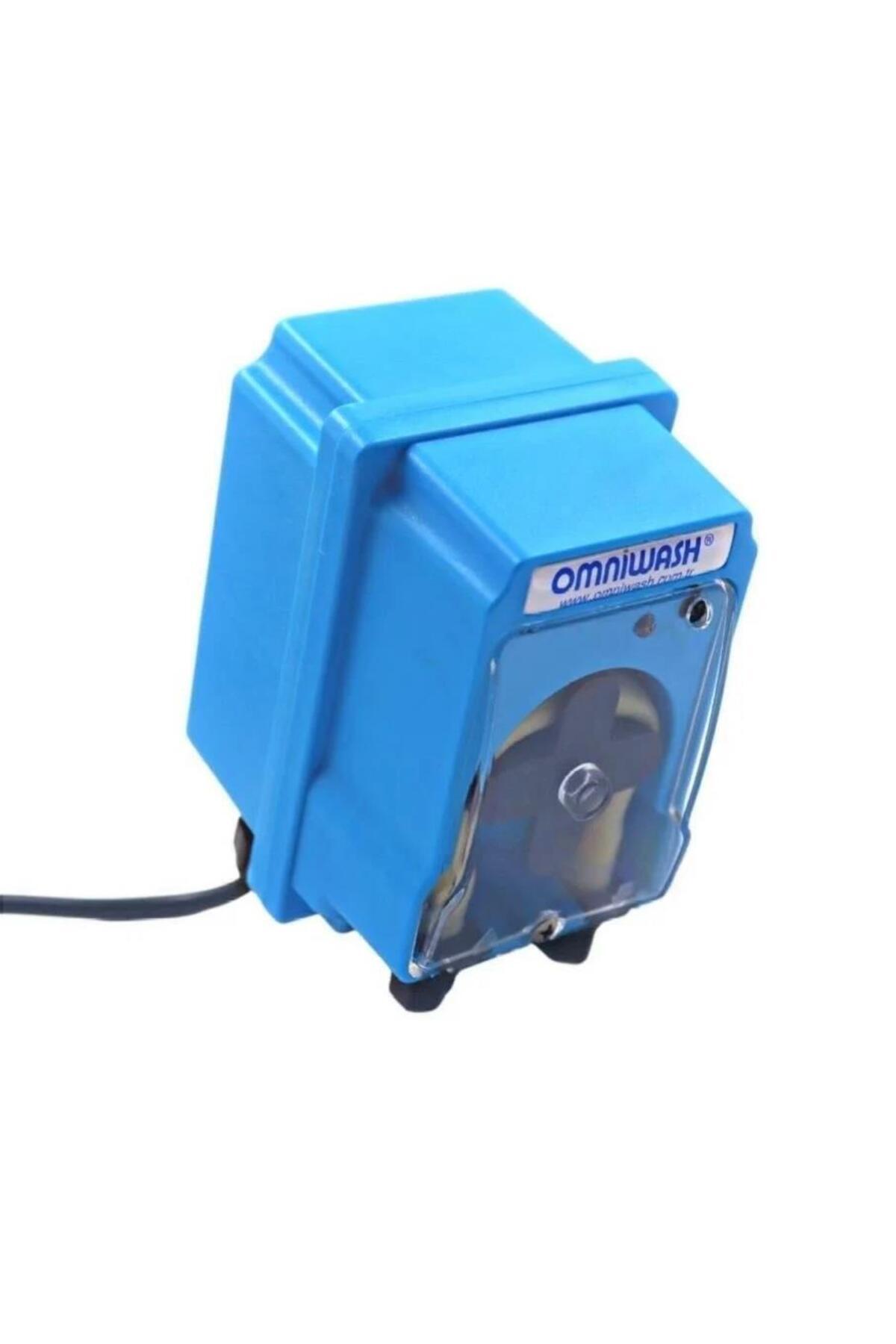

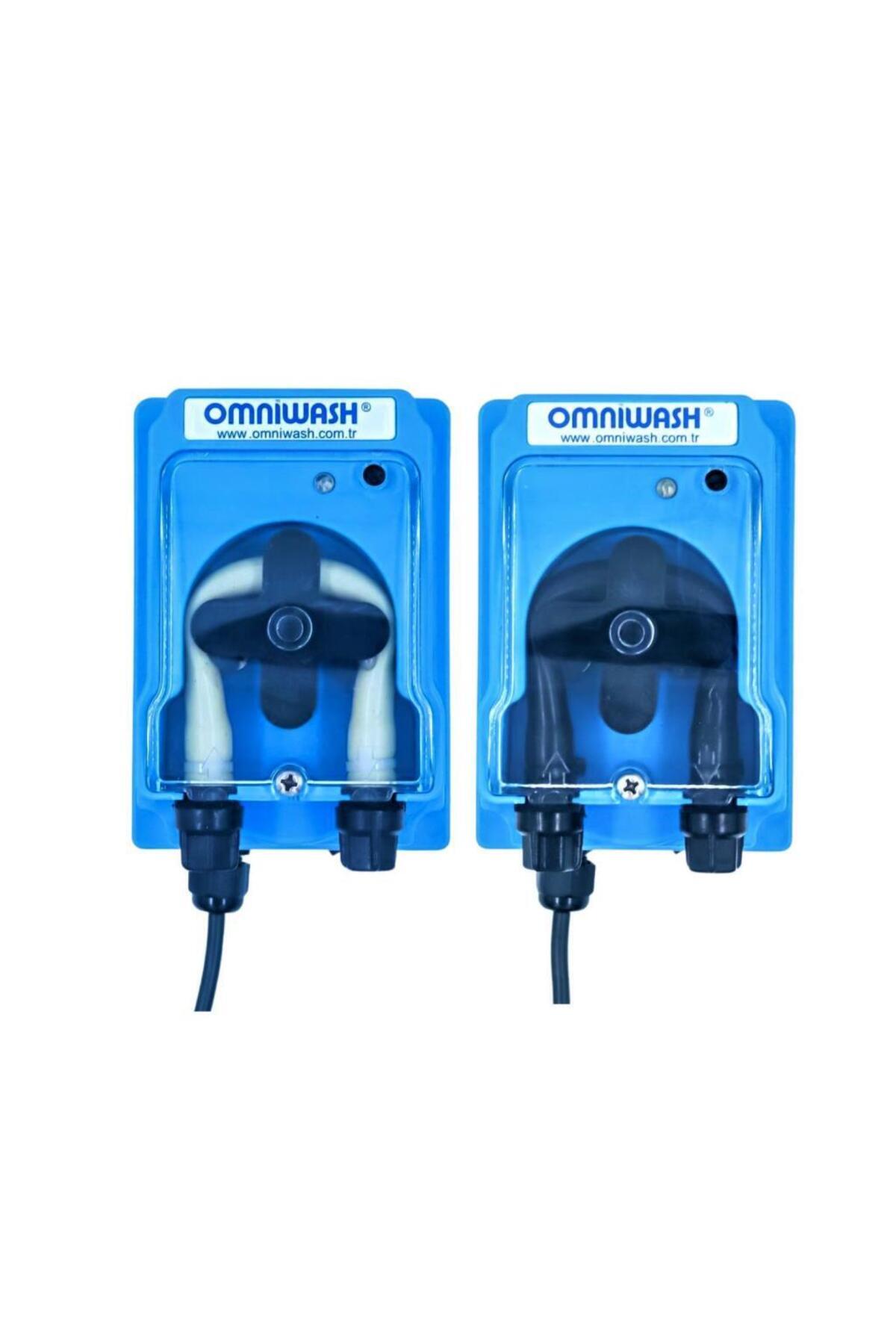

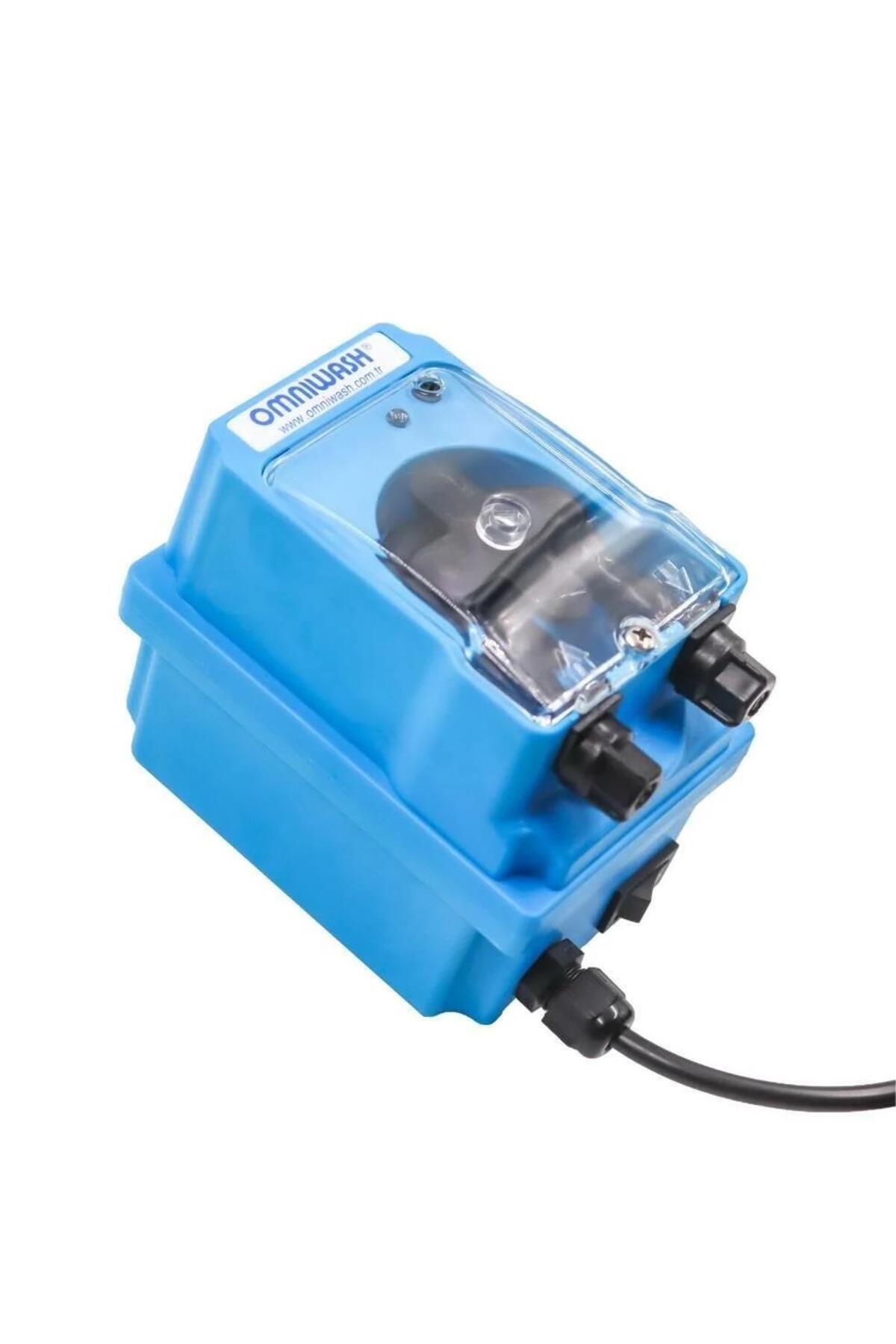

Omniwash Dishwasher Detergent and Shine Dosing Pump These are peristaltic pumps used for detergent and shine dosing in industrial dishwashers.

It can also be used for dosing liquids with detergent or similar density.

You can reduce and increase the flow rate of the pump through the peristaltic dosing pump.

Thanks to its durable roller system, engine and hose structure, it offers the opportunity to work in all conveyor, guillotine and undercounter machines.

Used to transfer fluids safely and quickly.

Since there is no liquid contact with the inner part of the pump, it is frequently preferred in medical and food applications.

Box Contents ( Detergent ) 1 Detergent Dosing Pump 1 Polisher Dosing Pump 1 Detergent Connection Hose 4 Meters 1 Polisher Connection Hose 4 Meters 2 Wall Hanging Connection Bracket 1 Detergent Inlet Elbow 2 Hose Weight Plastic 1 T Fitting Bracket 1 Check Valve Stainless Properties ( Detergent ) Adjustable flow rate rotation speed Chemical-resistant body On-Offswitch Long life spool system Easy to assemble and disassemble thanks to the rear cover slide (0-100%) Easy to use thanks to led flashes. 0.1 Bar Pressure 3.5 Liters / hour (max)Power supply 230 Vac 50-60 Hz (24 Vac 50-60 Hz)Power consumption 3.5 W2 Year Warranty .

Box Contents ( Polisher ) Polisher Dosing Pump 4x6 mm PVC Polisher Connection Hose (4 Meters)Wall Connection Apparatus Machine T Fitting Plastic Hose Weight Plastic Fitting Features ( Polisher ) Adjustable flow rate rotation speed Chemical-resistant body On-Offswitch Long life spool system Easy assembly and disassembly thanks to the rear cover slide The flow rate adjustment is adjusted by motor rotation speed (0-100%) Easy to use thanks to led flashes.3 Bar Pressure3.1 Liters / hour (max)Power supply 230 Vac 50-60 Hz (24 Vac 50-60 Hz)Power consumption 3.5 W2 Years Warranty .

Peristaltic pumps are also called hose pumps, dosing pumps or transfer pumps.

Peristaltic pumps, which are derivatives of positive displacement transfer pumps, are part of different processes such as pumping various liquids, chemical transfers, pharmaceutical processing, mine applications, wastewater treatment.

Peristaltic pumps are unique in design.

In the principle of operation, a drive system rotates a pressure mechanism called a series of cylinders or shoes, and as a result of this rotation, the flexible hose is jammed and released.

In this process, a vacuum mechanism is formed to draw the liquid into the hose.

The flexible hose is the only part that comes into contact with the fluid during the process.

Peristaltic pumps offer great advantages in terms of ease of use.
