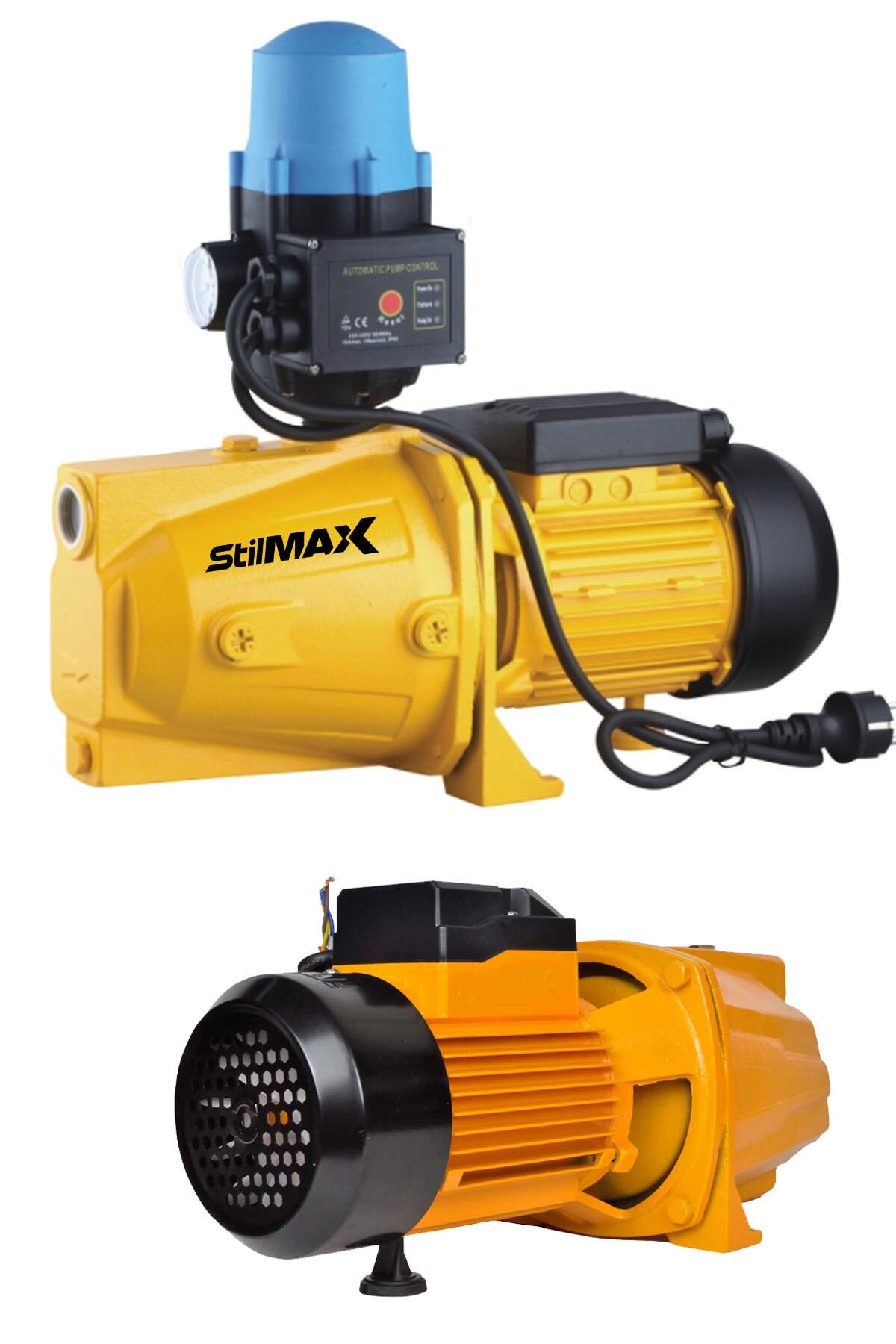

Stilmax germany design multi jet 1500 metal gear system 1.5 hp large size water pump with full copper wrap

It is an automatic system and has a long service life

8 mt suction power available

Multi jet 150 metal gear system 1.5 hp large water pump with full copper winding

Power: 1.100kw - 1.5 hp

Inlet diameter (inch): 1

outlet diameter (inch): 1

max. flow (m³/h): 3.5

max. Discharge height: 48 m

Discharge height (tons/meter): 0.3-46/0 .6 -45.50.9-44/1 .2-43 1.5-41/1 .8-38 2.1-34/2 .4 -29.5 2.7-24/3-16

Suction depth (m): 8 max

max. Pressure: in the range of 2-5 bar

Dimension (mm): 475x190x220

weight: 14.5 kg

The motor part is copper-wound, different from market products
