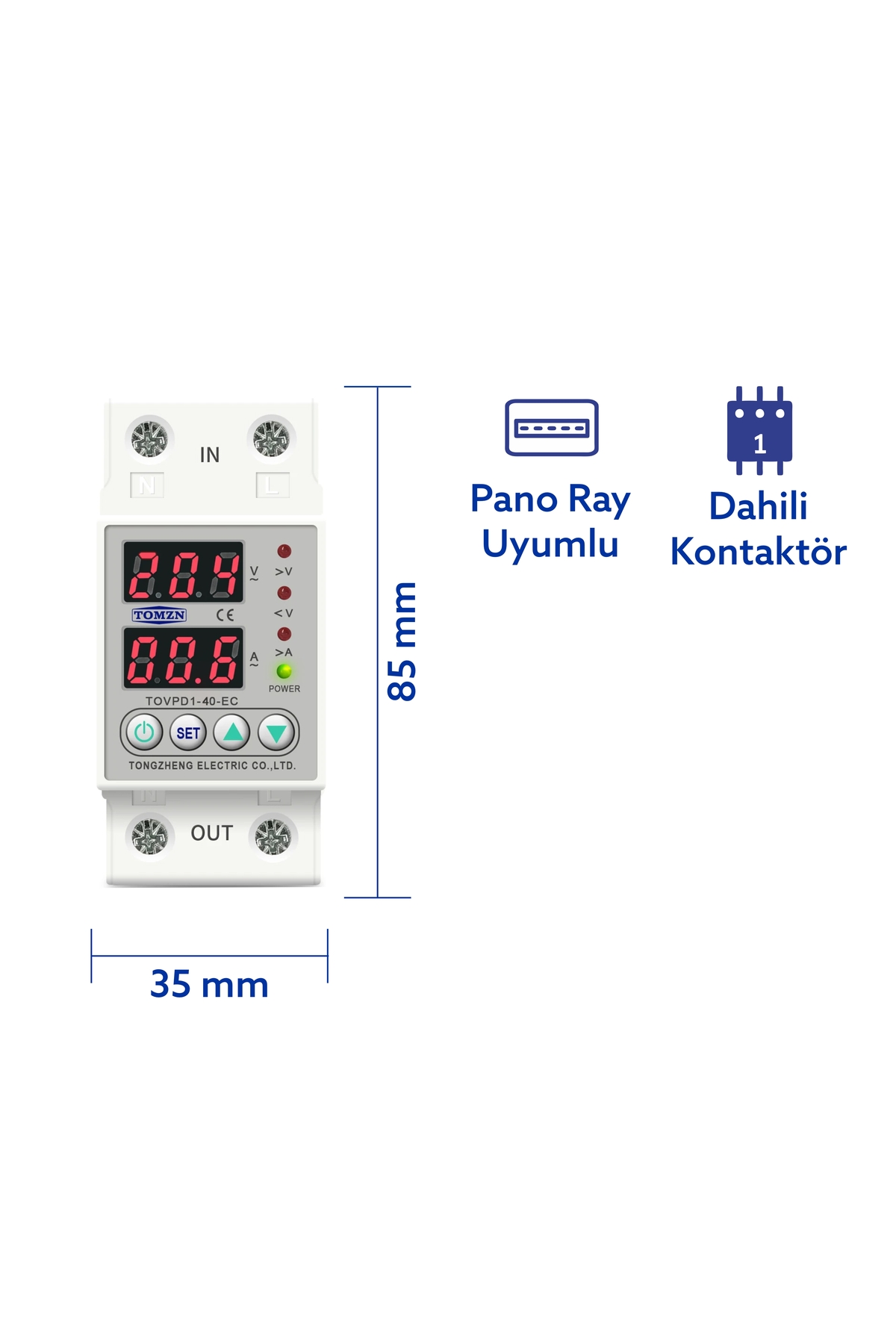

TOMZN Voltage and Current Protection Relay High Low Voltage Current Lightning Protective Monophase 40a Electric Guard Product features In case of single-phase line overvoltage failure, undervoltage failure or overcurrent failure, the product can turn off the line and automatically restore the connection of the line with a time delay after the voltage or current of the line returns to normal state.

In case of transient overvoltage in the line, the product can protect the equipment against faulty operation.

The product will cut the line in case of sudden shutdown and opening due to unstable voltage exposure of the line or loose connection or other failure.

When the fault voltage of the line reaches its peak, the product itself is not damaged

Normal use and installation conditions The Protective Panel has to be installed in a place where it will not be affected by rain and snow.

Protective shall be installed in an environment where there is no risk of explosion.

There will be no gas and conductive dust in the environment that will corrode the metal and affect the insulation effect.

Installation conditions It can be mounted vertically or horizontally inside the protective cabinet.

In case of special need, special orders must be made.

Pollution Level: 3

Weather conditions, Humidity, Ambient air temperature +40C 0 relative air humidity at the installation site should not be more than 50%

Relative humidity may be high in low temperature conditions.

For example, when the average minimum temperature in the wettest month is +20C 0, the average maximum relative humidity in the month can reach 90%.

Condensation caused by temperature change shall be prevented by taking appropriate measures.

Altitude, height of installation place shall not exceed 2000 m.

The ambient air temperature should not be more than +55C 0, -20C less than 0, and the 24-hour average temperature should not be more than +35C 0.

Ambient temp.

Normal conditions of use
