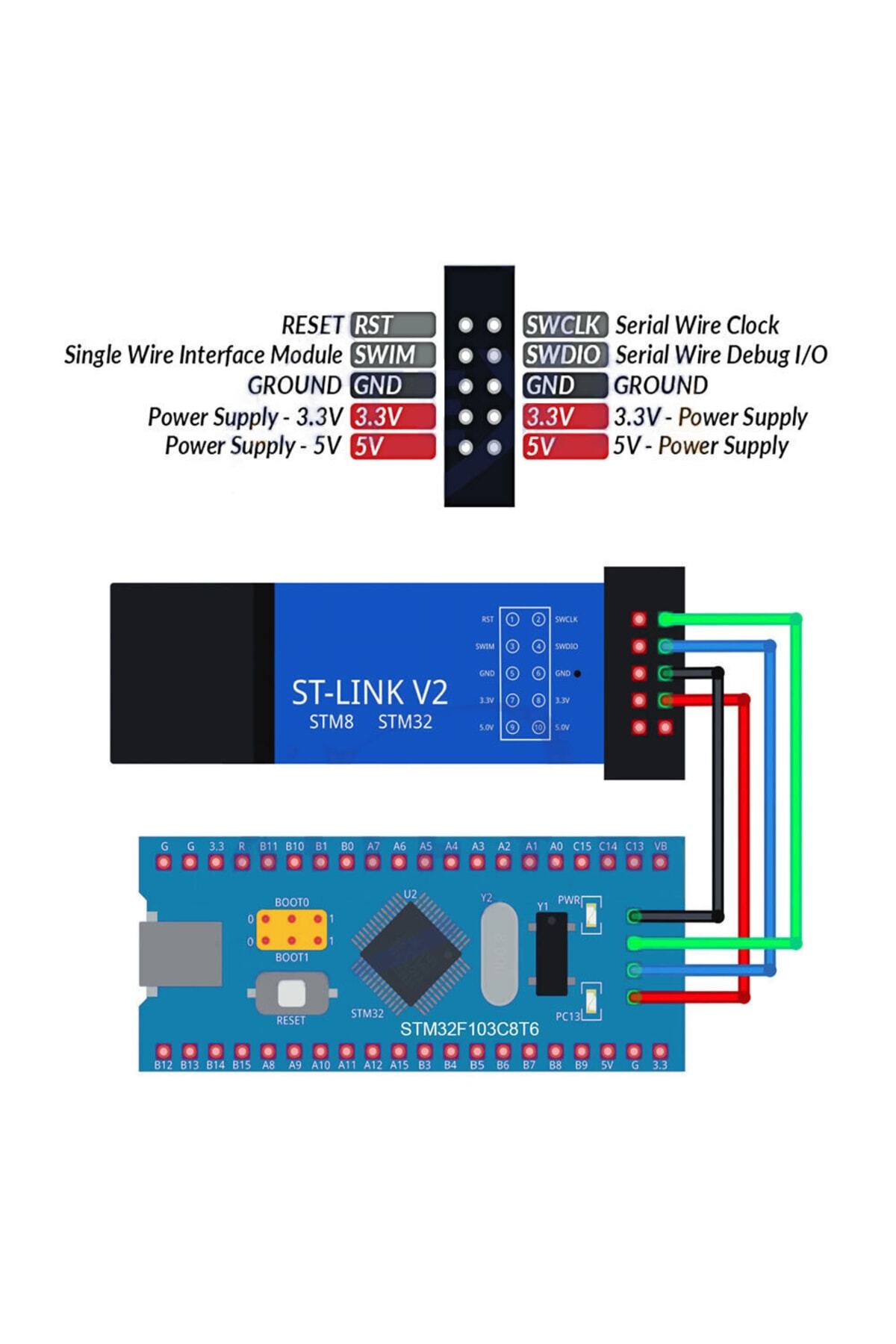

Stlink v2 mini clone jtag programmer Product description: mini st-Link v2, fully consistent with the official version, support for automatic upgrades, support the full range stm32 swd (only 4pins including swclk, swdıo, and power) and a full range stm8 swim (only 4pins including swim, reset and power) download and debug.

Tested with our stm8s003f3p6 min.

Board in the iar ewstm8 environment.

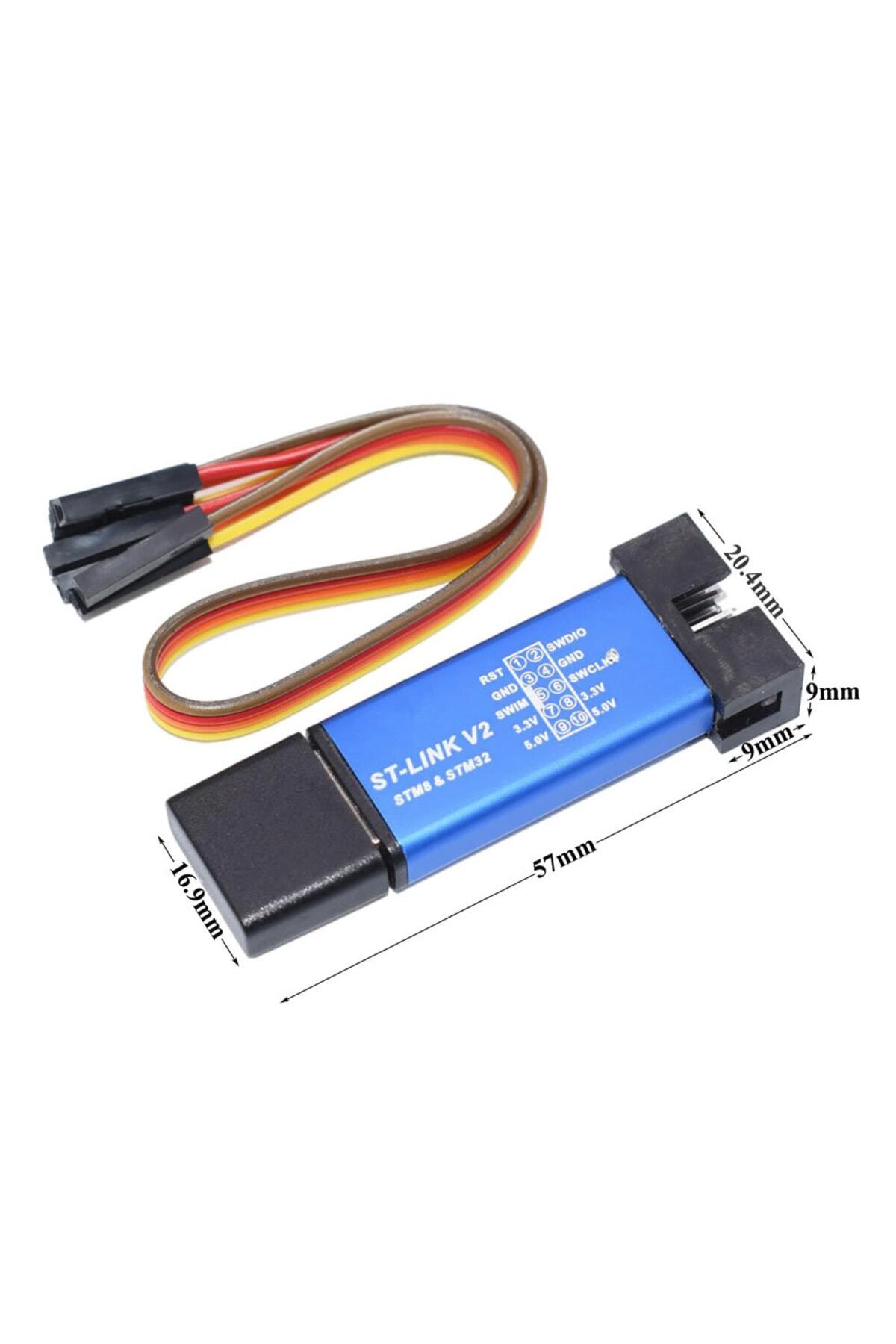

Features: Pcb installed inside of aluminum alloy u disk shell, portable, safe and reliable!

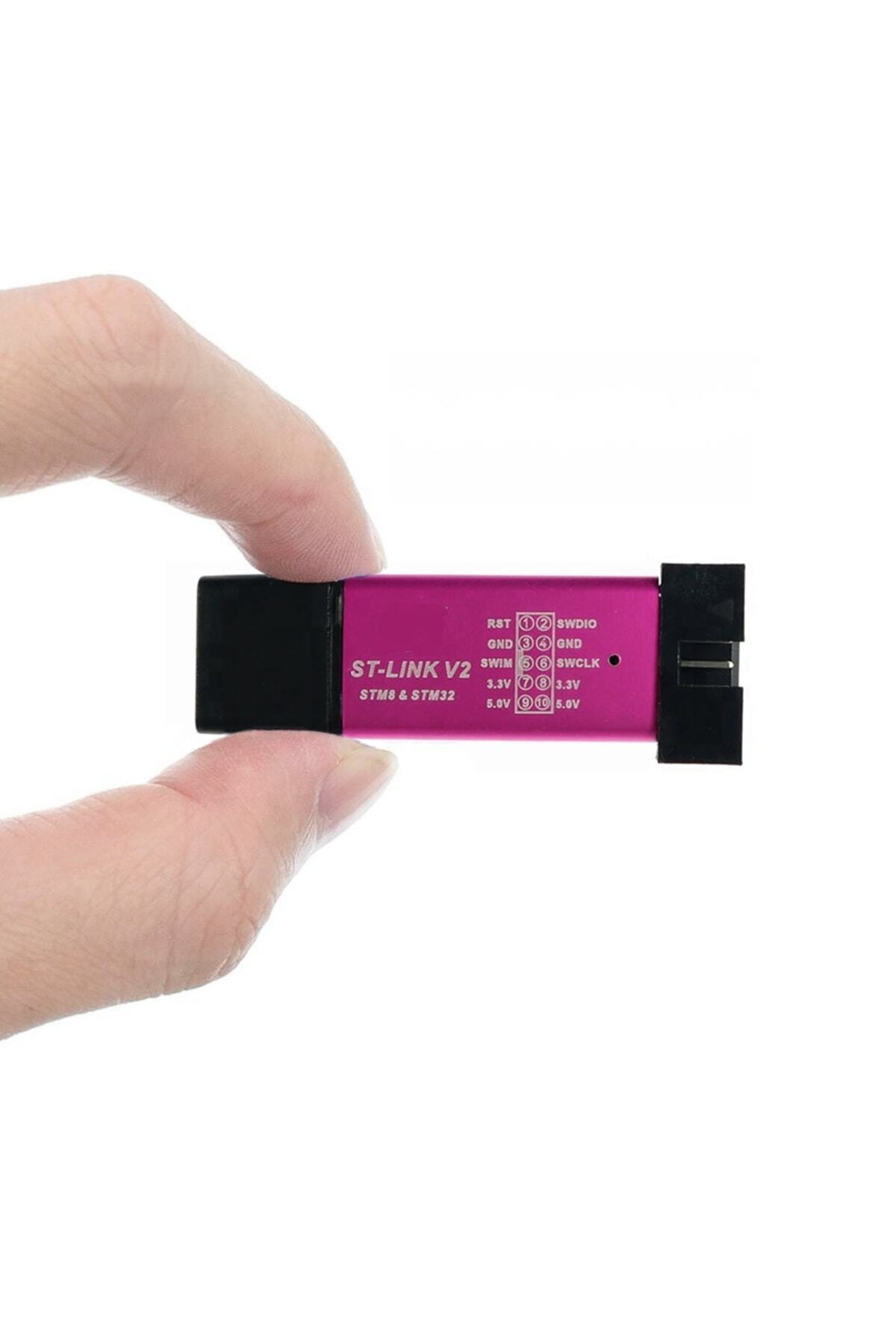

Interface definition is directly marked on the shell, clear, convenient and practical!

5v, 3.3v offers in the same time, allowing you to program your target board with both 5v and 3.3v

Shell characters using laser engraving, never fade off! Permanent clarity!

500ma internal resettable fuse, complete protection of your expensive computer motherboard!

Red and blue color led indicator, allowing you to always observe st-Link v2 working condition!

With 4 dupont lines, so you can easily respond to different target board line order!

Use anti-Static bag packaging.

Supports for st-Link v2: St-Link utility 2.0 and above

Stvd 4.2.1 and above

Stvp 3.2.3 and above

Iar ewarm v6.20 and above

Iar ewstm8 v1.30 and above

Keil rvmdk v4.21 and above

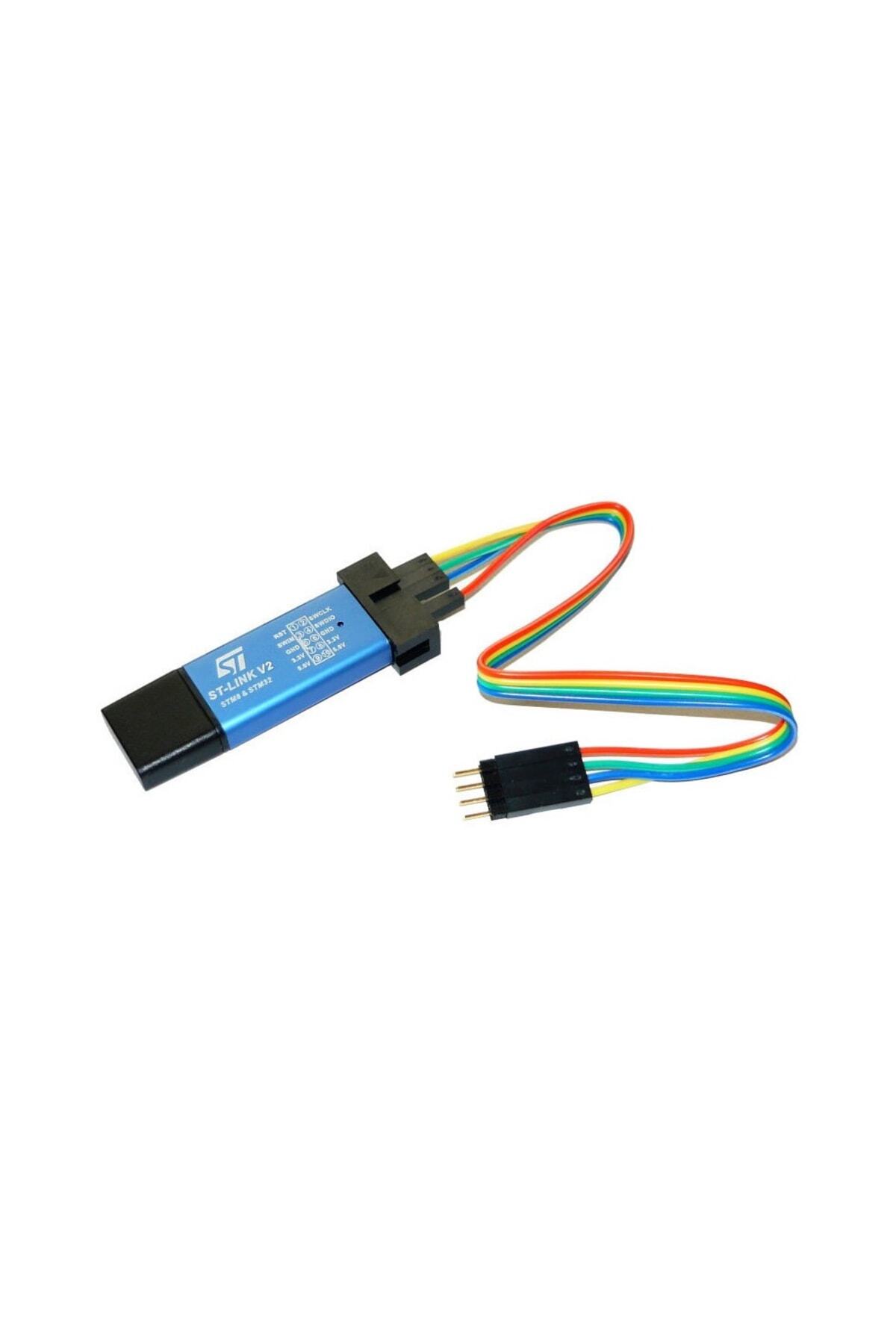

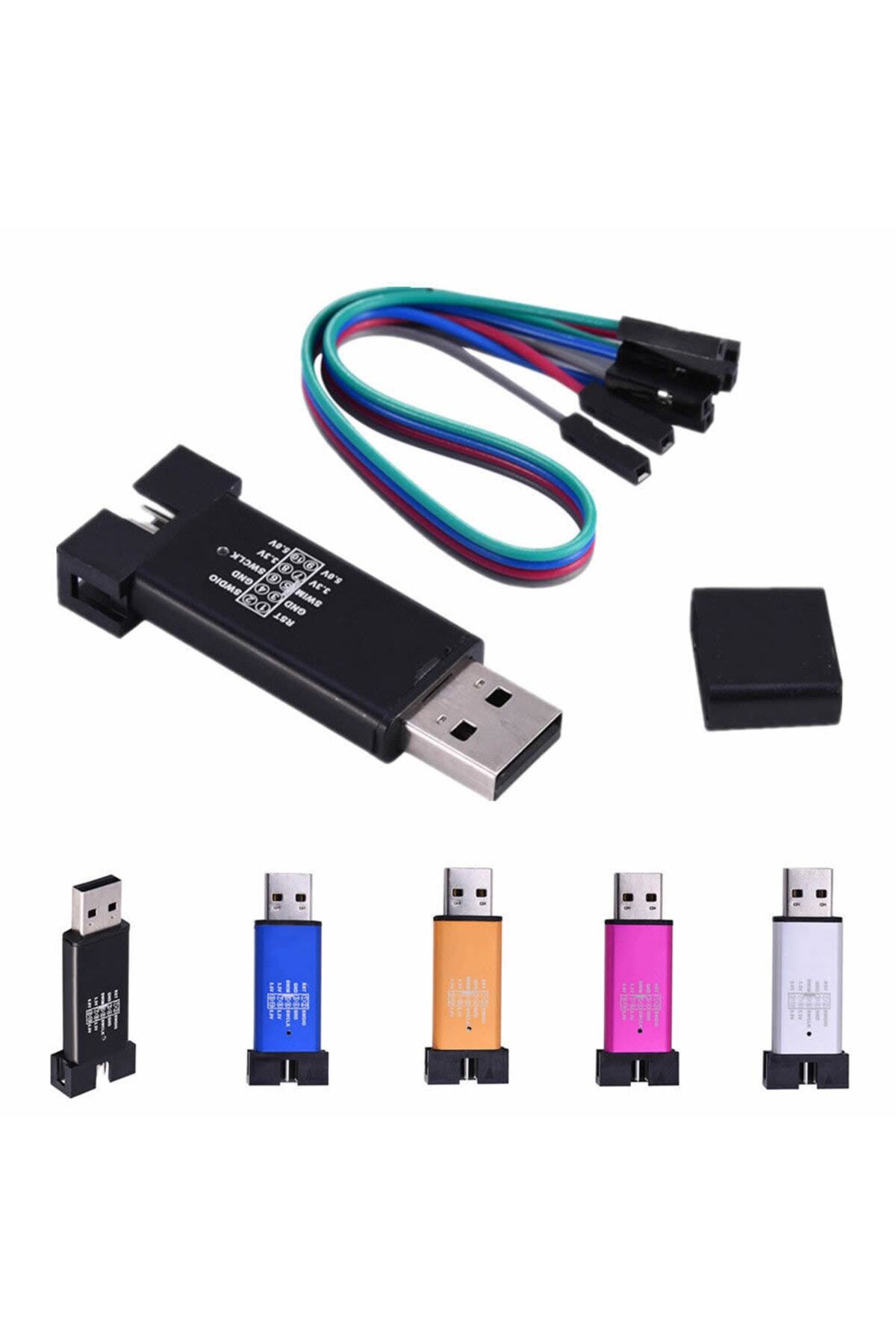

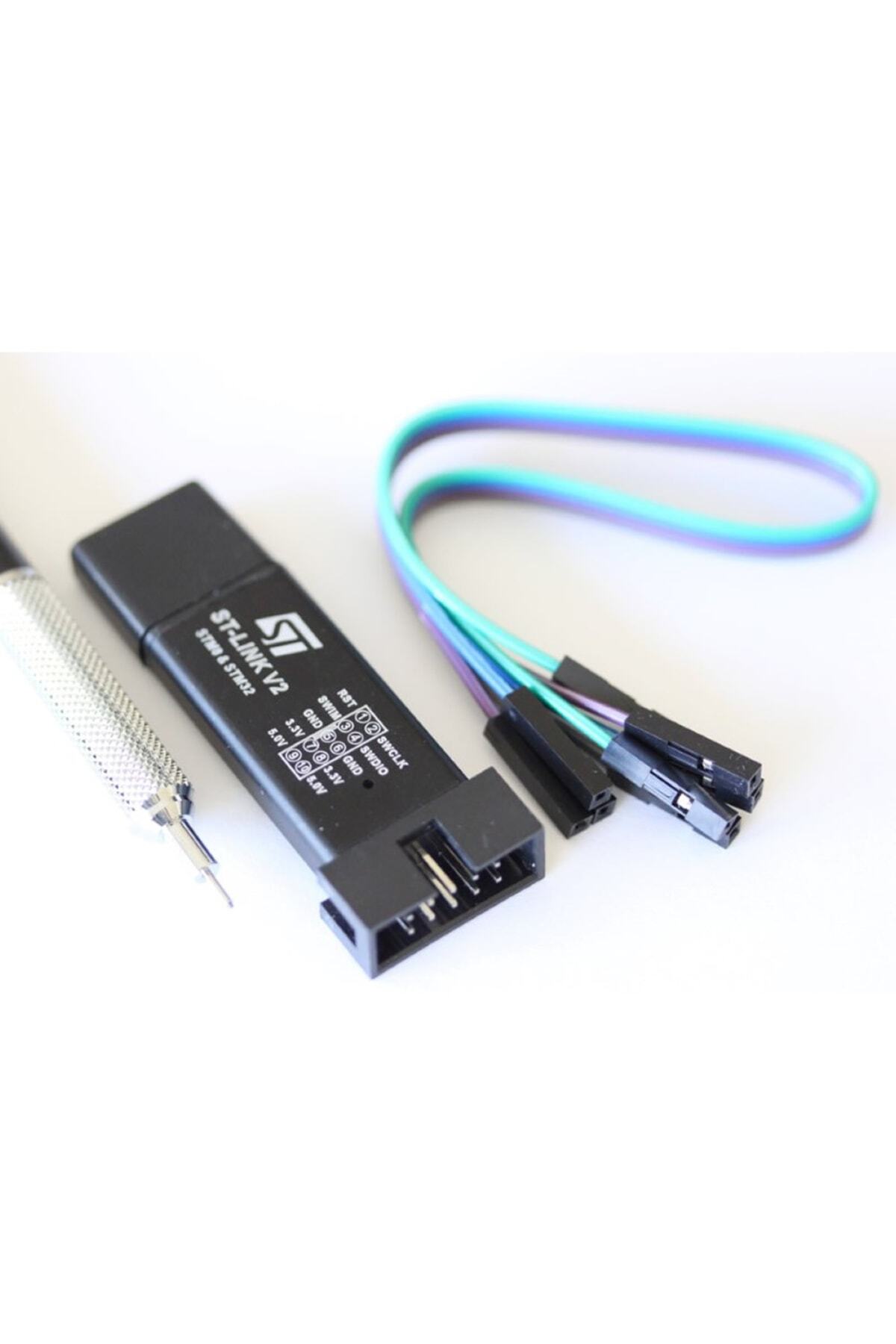

Package Included : 1 x stlink v2 mini stm32 arm jtag programmer

1 pc 4 pin 15cm dupont cable
