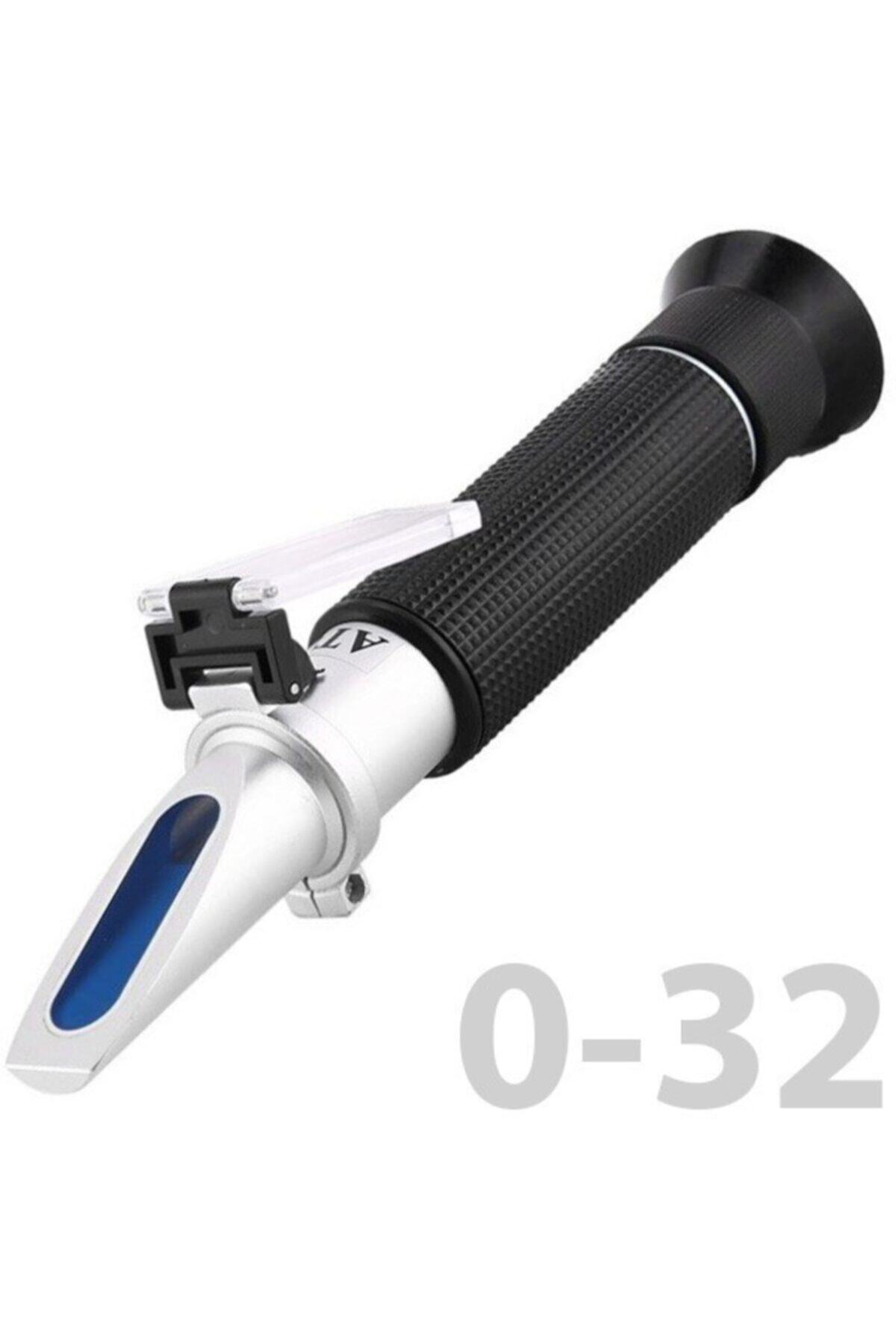

Loyka 0-32 Brix Binoculars Handheld RefractometerLOYKA ATC 0-32 BRİX METER REFRAKTOMETRELoyka 0-32 brix binoculars handheld refractometer
-
0..
-
.32 Precision refractometer with Brix measuring range.
-
These refractometers are most often used for measuring the density of each solution that is not very dense, such as fruit juices, milk, carbonated beverages, etc.
-
It is used to measure the brix value of products such as -.
-
LOYKA (0-32 BRİX) refractometer SPECIFICATIONS -LOYKA 0-32 brix refractometer
-
It is a binocular type measuring device that can measure the brix of samples between 0% and 32%.
-
This refractometer device, which does not require any power source, is very easy to use.
-
Materials you can measure on this refractometer
-
juice, milk, carbonated drinks, etc.
-
materials such as -.
-
In order to read the measurement results more easily, you need to make sure that the prism receives enough light.
-
Reset adjustment is made with the calibration fluid provided with the device and focus adjustment is made from the point of view of the binoculars.
-
This refractometer device has ATC feature.
-
ATC compensation range 10°C.
-
.20°C.
-
The prism of the refractometer must be protected from impacts and scratches.
-
With a scratch-free prism, you always get clear results.
-
For better quality and clearer results, the measuring prism should be cleaned with a soft cloth after each use.
-
Accessories included with the refractometer
-
calibration fluid, rigid transport box, small screwdriver for calibration adjustment, plastic dropper, cleaning cloth and user manual.
-
Normal Sugar(°Bx) Values in the Measured Solution: In a solution with a value of 25°Bx at a weight of 100 grams
-
It means that there is 25 grams of sugar.
-
In other words, 25 grams of the 25°Bx solution weighing 100 grams is sugar and 75 grams is water.
-
HOW TO MEASURE? Hold the REFRACTOMETER by the body with the side of the inclined prism on which the sample on the tip is dripped facing the light and while the cover is in the closed position, position the binocular part of the device in your eye and try to read the value in the measurement table you see.
-
If the values you see are not clear, you can adjust the focus by turning the measurement table to the left and right by turning the adjustment ring just above the binoculars.
-
Zero Adjustment: First open the prism cover and drip 1-2 drops of distilled water on the inclined prism surface and close the cover slowly.
-
This completes !
-
a thin layer of water will remain between the prism surface and the cover.
-
Dark-Light color separation image seen around the 0(zero) line of the measurement table, if not
-
For full overlap with the dimensional table zero line, turn the Calibration Screw with the help of a screwdriver to ensure that the Dark-Light separation fully overlaps with the dimensional table zero line.
-
TECHNICAL SPECIFICATIONS MEASUREMENT Range:0 .
-
32 °BxResolution:0.2 ° BxATC Feature: VarSize:27 x 40 x 170 mmWeight:126 gr.
