Magmaweld Monostick 200i 200 A Inverter Electrode Welding Machine Features Works with 1 Phase 230V-50/60 Hz mains voltage and generators, tolerates voltage fluctuations up to 15%.

Thanks to inverter technology, energy efficiency is high compared to conventional machines.

Excellent welding characteristic for Rutile and Basic electrodes.

TIG welding can also be done by rubbing with a TIG torch with a tap.

The current adjustment scale is arranged according to the electrode diameter for easy adjustment.

It is designed to be used outdoors and has an IP 23 protection class.

Although it is lightweight and easily portable, it can withstand harsh working conditions for a long time.

Thanks to the wider floor areas, they do not easily tip over from the scaffolds.

The welding current is not affected by mains fluctuations and long cable connections.

Fan cooled and thermally protected against overheating.

Standard Accessories come with the machine.

Technical Specifications Power Supply

Mains Voltage (1 Phase) 230 V

Mains Drawn Power 9.7 (14%) kVA

Input Current 15.8 (14%) A

Welding Current Setting Field 10 - 200 A

Rated Welding Current 200 (14%) A

Open Circuit Voltage 65 V

Electrode Diameter 1.60 - 4.00 mm

Dimensions (L x W x H) 467 x 160 x 312 mm

Weight 10.5 Kg

The protection class

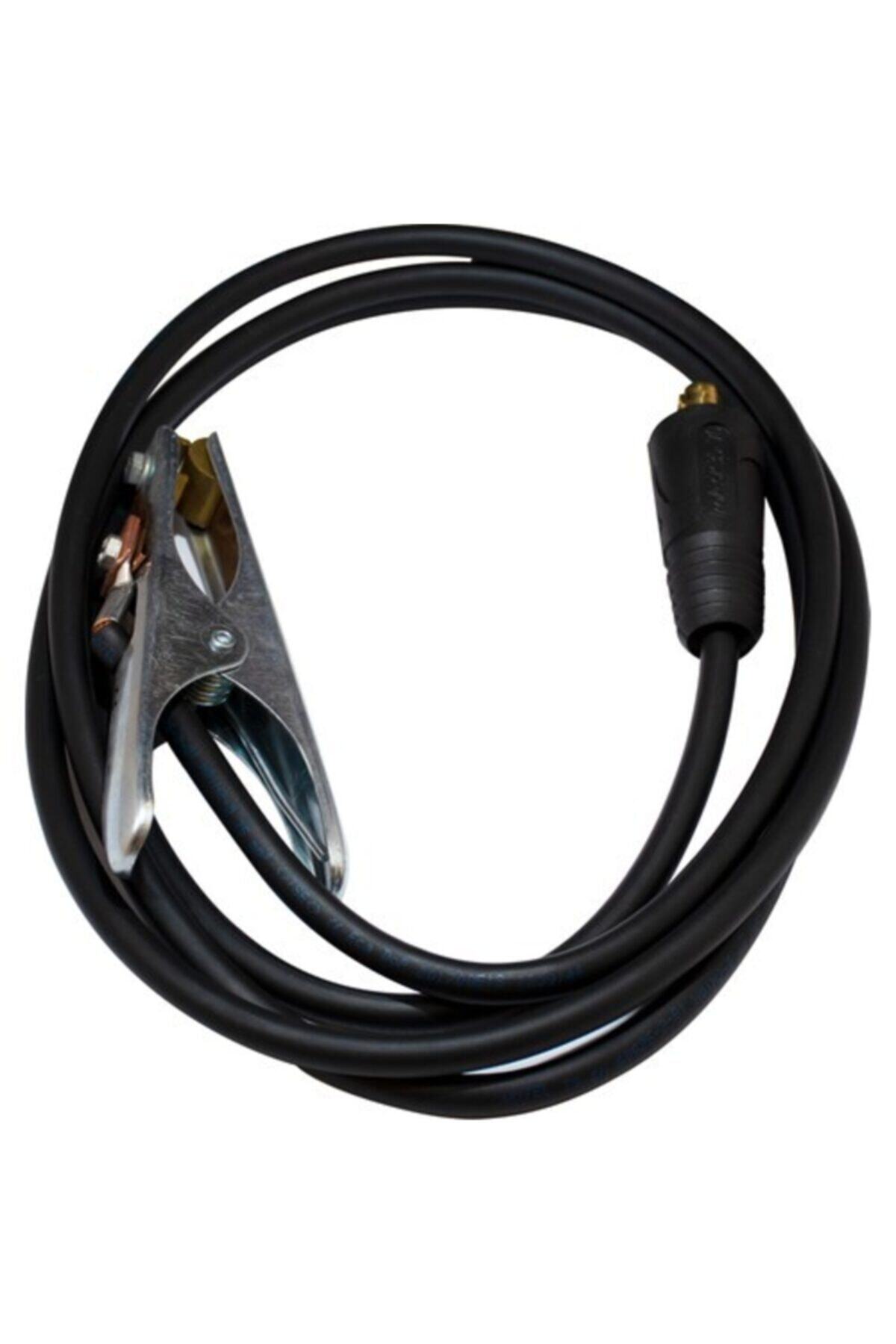

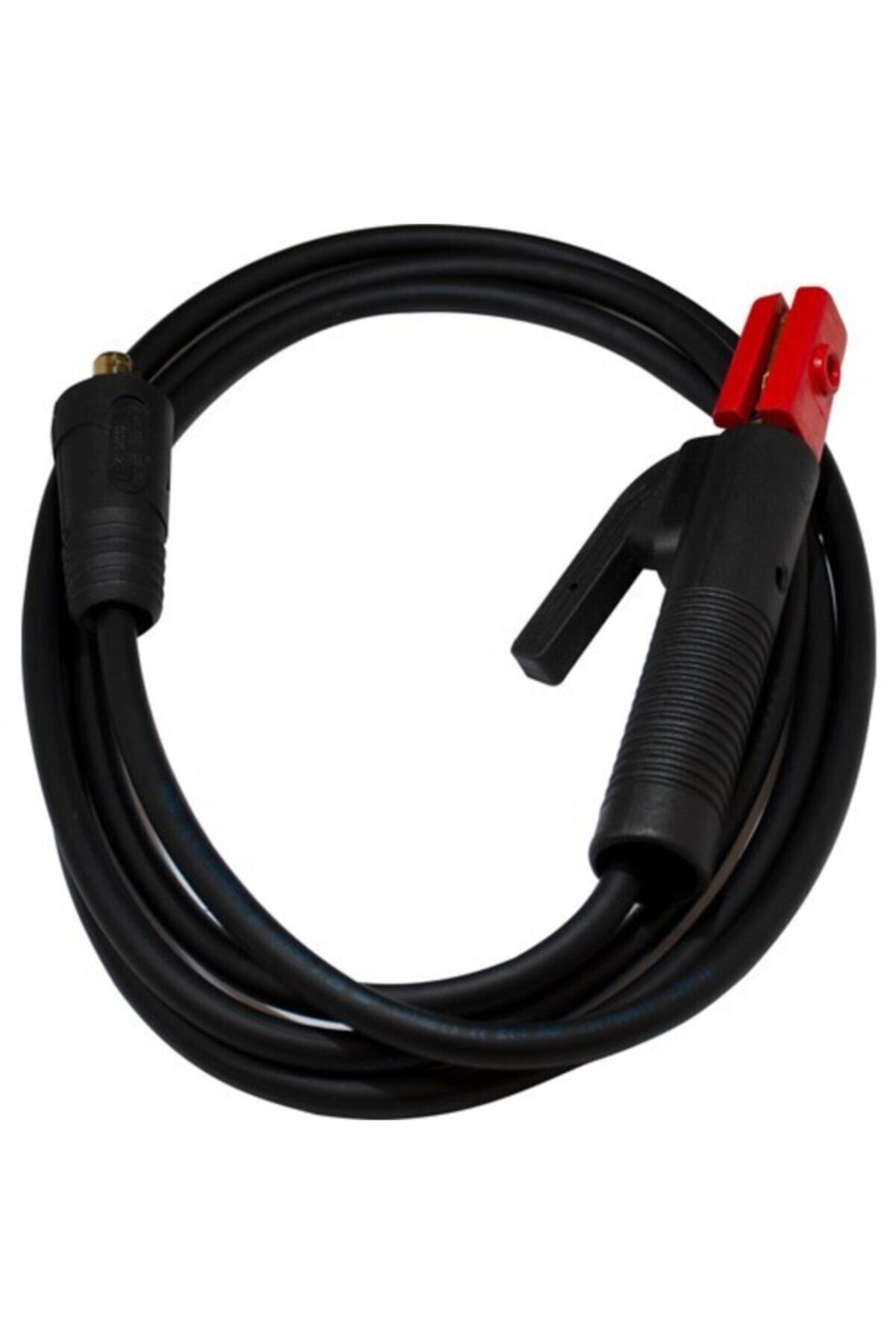

Standard Accessories 906201603 - ELECTRODE PLIERS and CABLE - 16mm2/3mt (35 socket) 7905201603 - EARTH PLIERS and CABLE - 16mm2/3mt (35 socket)
