MAGMAWELD Ministick 140 AMP WELDING MACHINE + Carton Boxed Ministick 3.25 MM ELECTRODE BURNS 20 PCS NON-STOP material: TURKEY GENERAL FEATURES 1 Phase 230V( ± 15%) It works with 50/60 Hz mains voltage.

It has low and high input voltage protection feature. It allows smooth operation with generators.

Provides excellent welding characteristic with Rutile and Basic electrodes.

It has the smallest dimensions of its family with its 4 kg weight and compact design.

The current adjustment scale is arranged according to the electrode diameters.

Provides ease of use in the open air.

It gives excellent results in TIG welding by rubbing even in thin materials with its use starting from 5 Amps.

It provides welding without loss of performance with long welding and electrical cables.

Protected against overheating by fan cooling.

TECHNICAL SPECIFICATIONS Power Supply Mains Voltage (1 Phase) 230 V 11,51 Max.

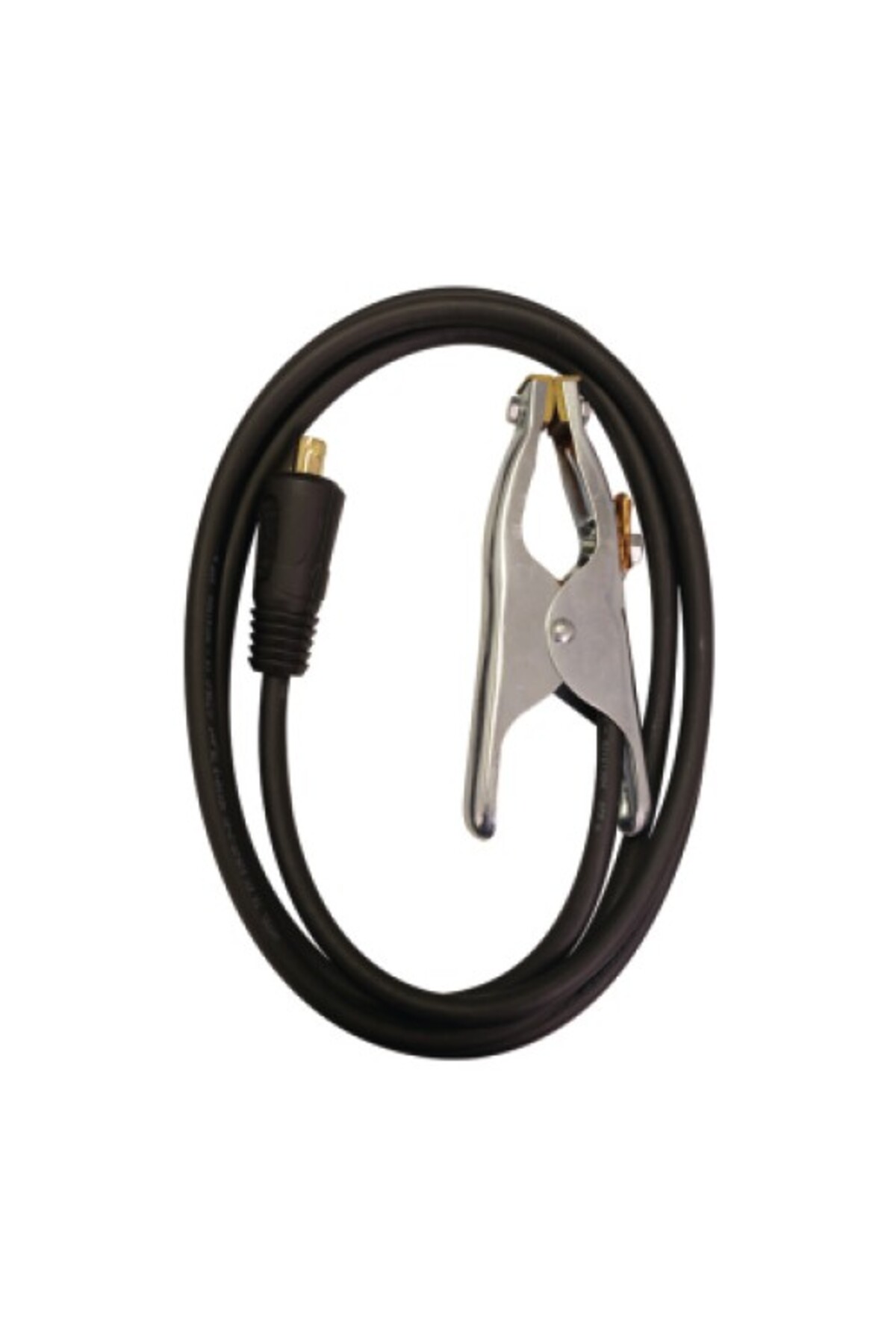

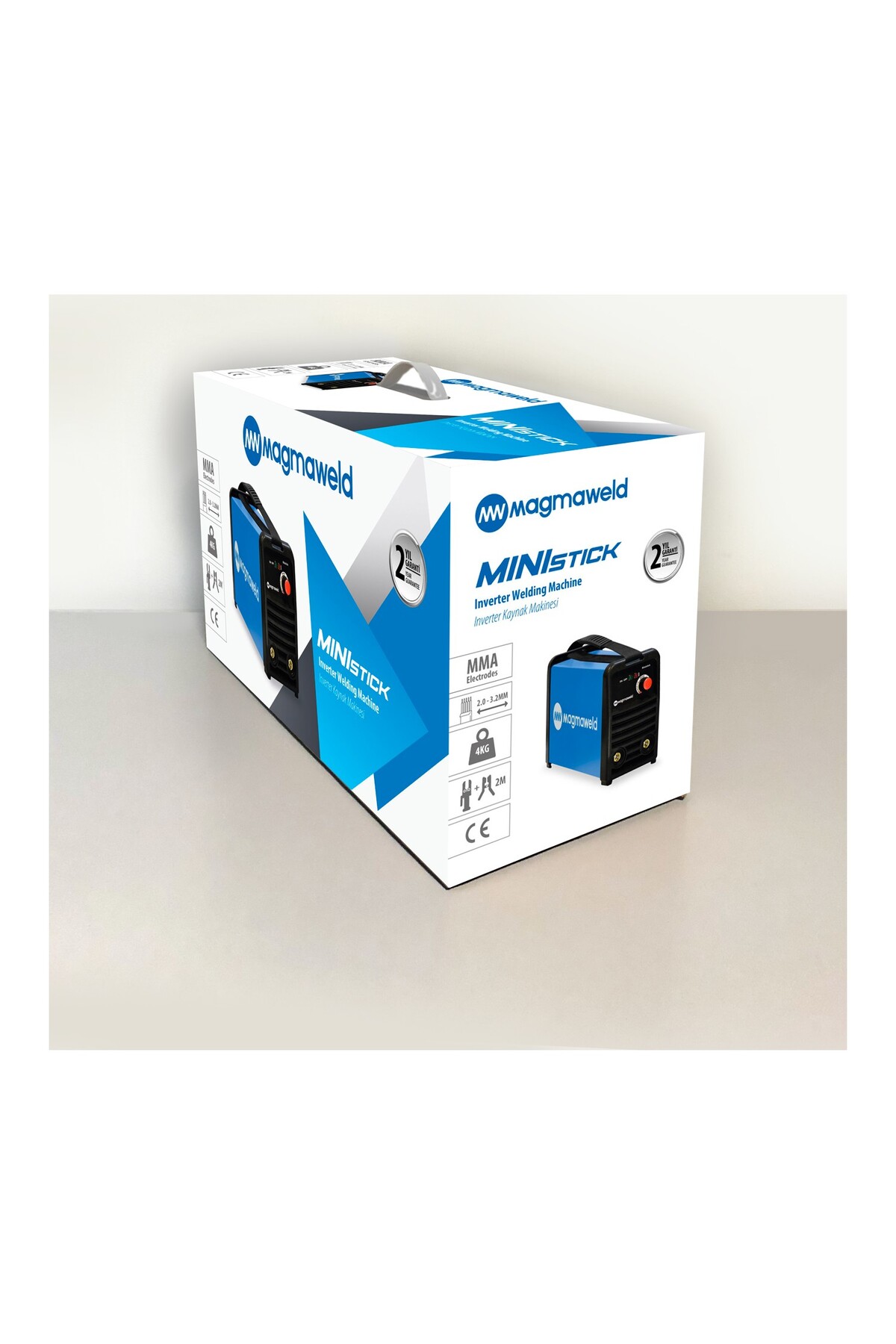

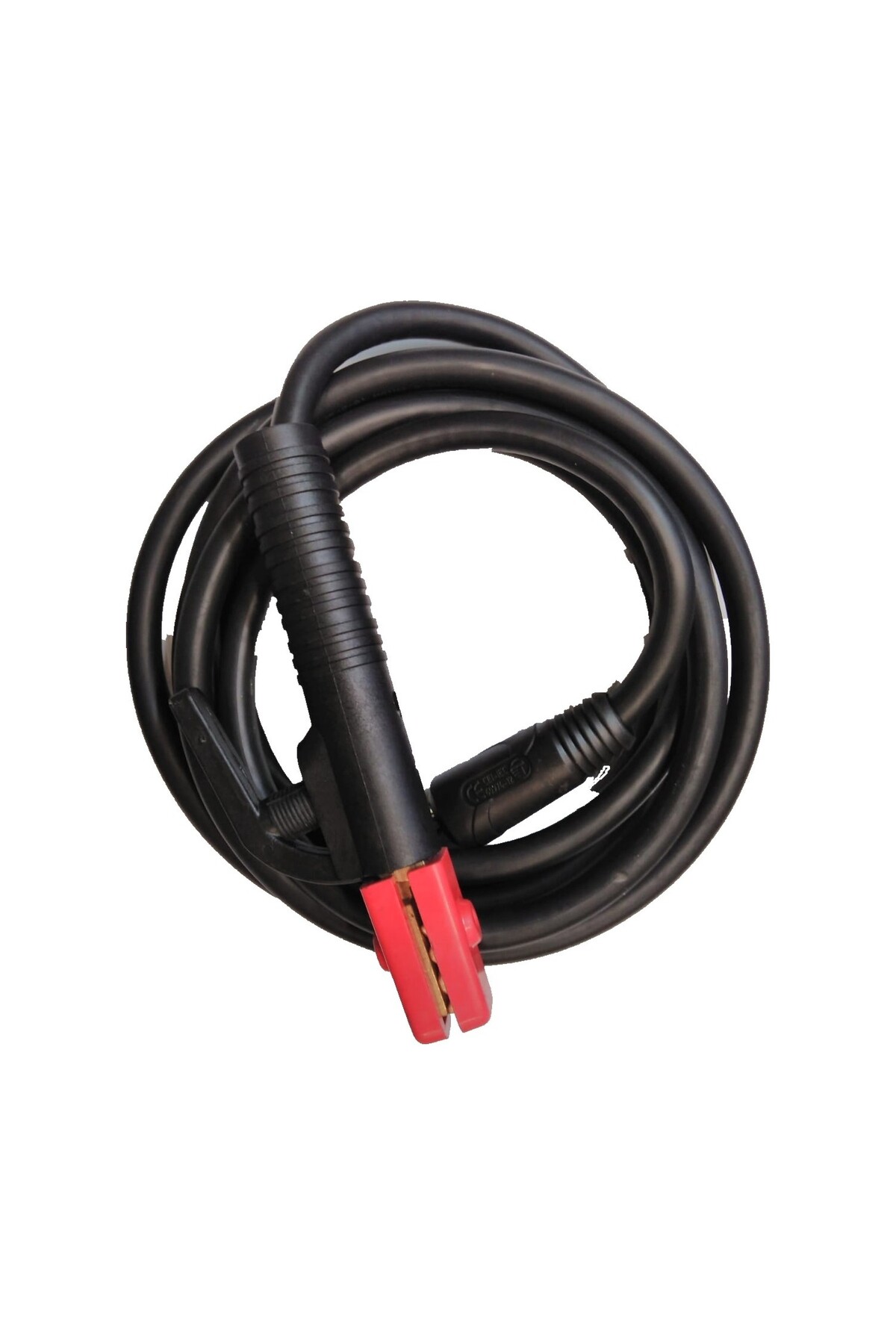

Current (MMA) 29.7 A Welding Current Setting Site 5 - 140 A Rated Welding Current 140 (15%) A Open Circuit Voltage 75 VDC V Electrode Diameter 1.60 - 3.20 mm Dimensions (L x W x H) 360 x 120 x 200 mm Weight 4.25 Kg Protection Class IP23 STANDARD ACCESSORY Code Name Size K301100202 GROUND CABLE 16MM2/2MT Standard K301000202 Welding Cable 16mm2/2mt Standard Shipped with Carton Box
