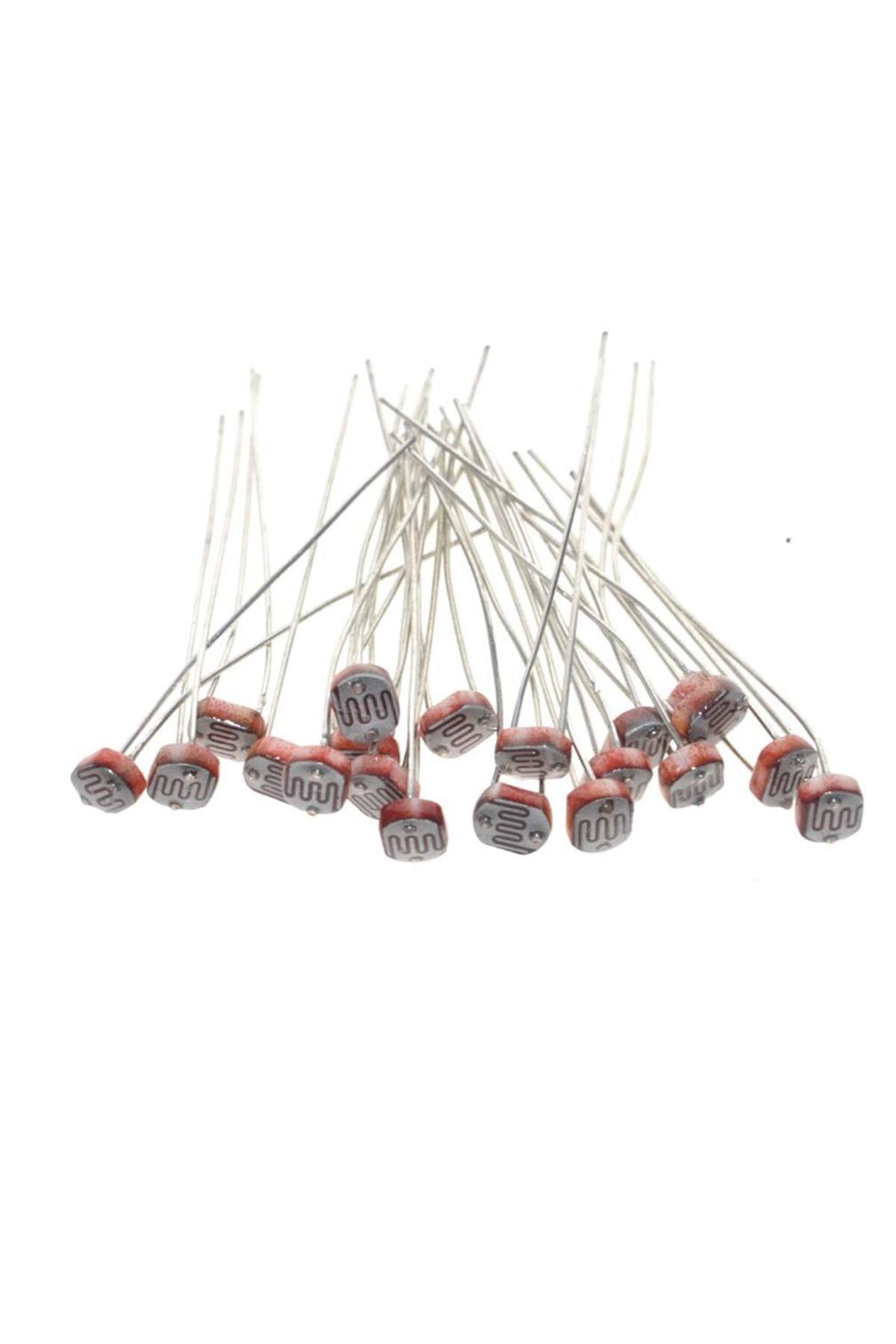

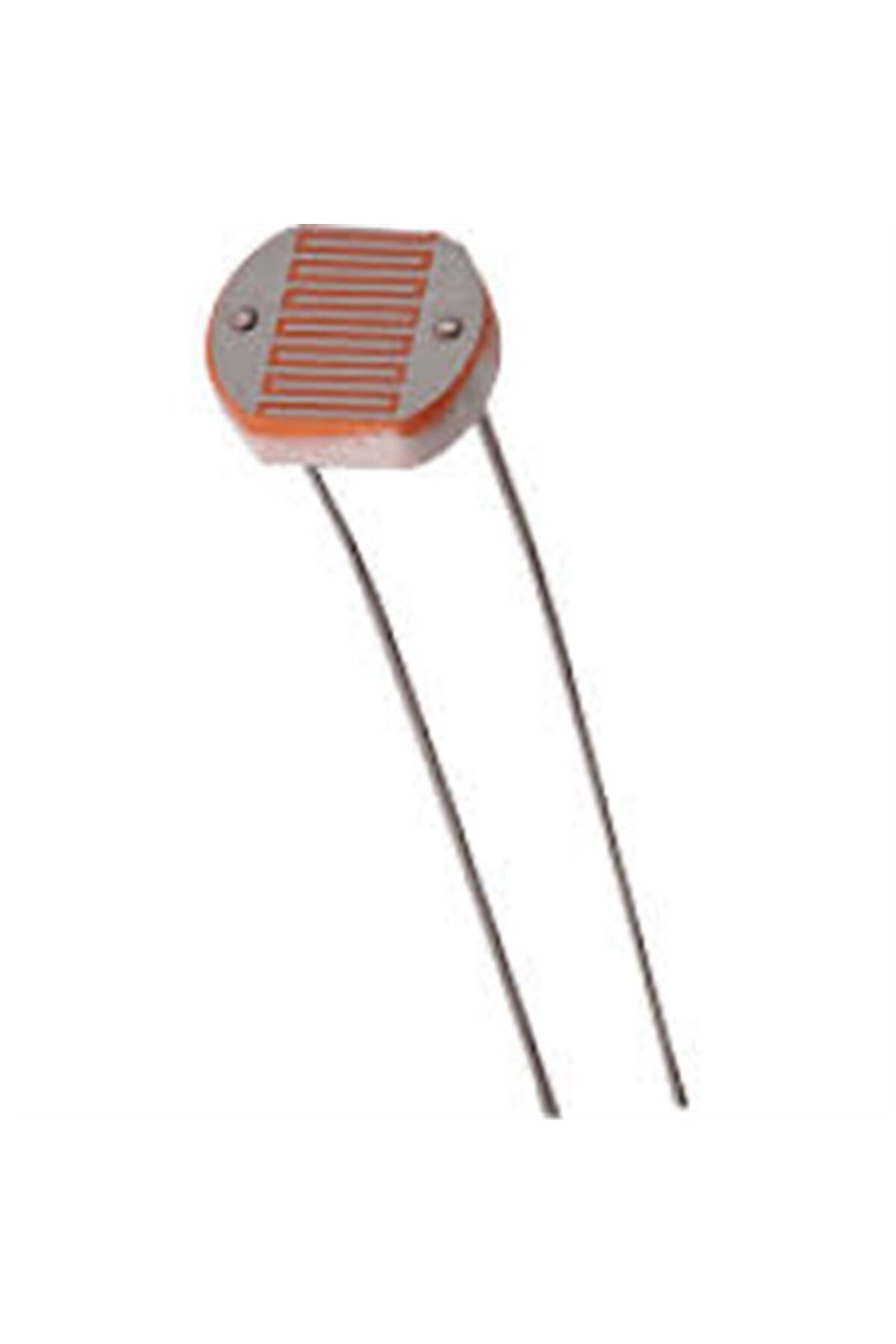

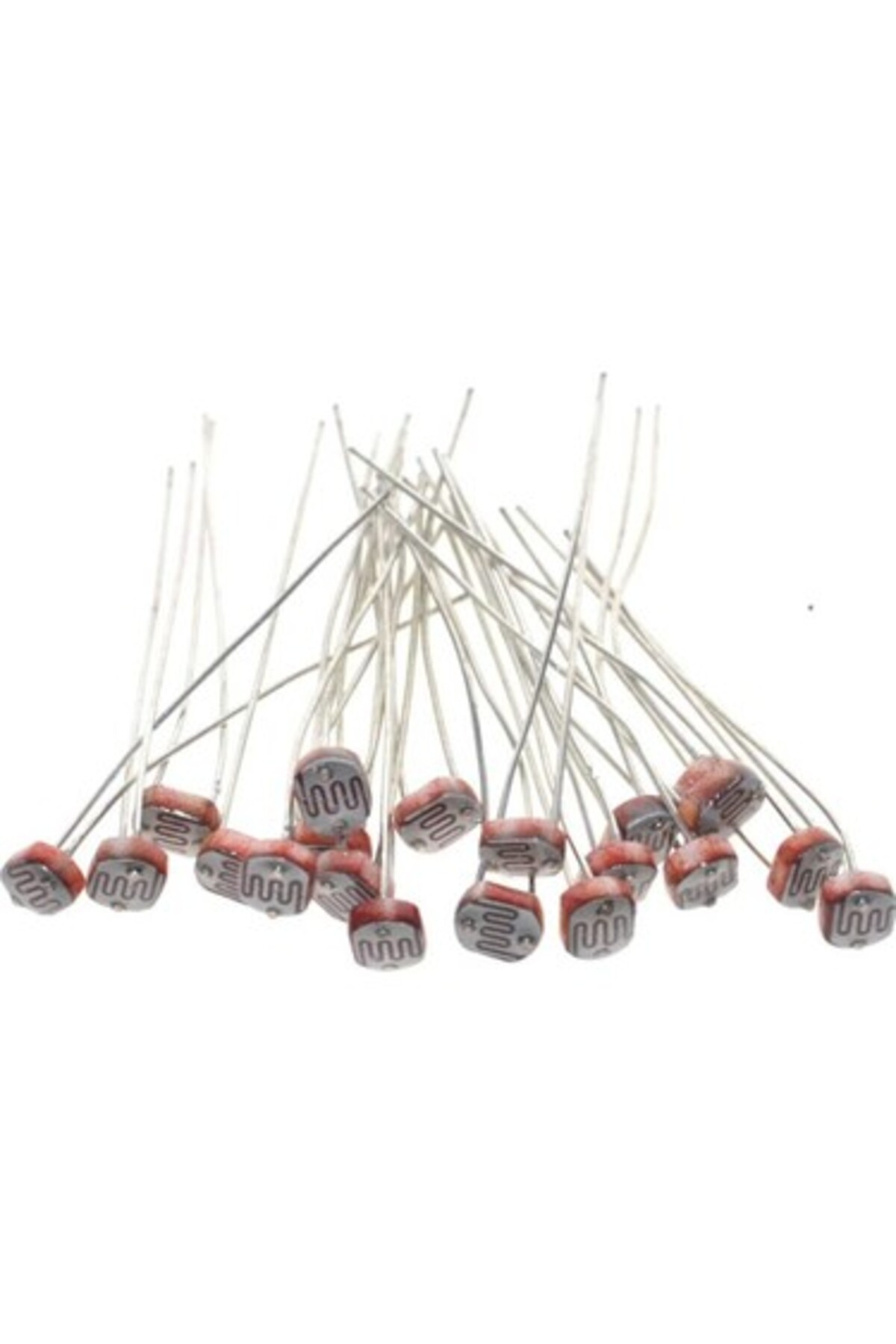

5mm LDR (Light Dependent Resistor), i.e. Photo Resistor, is a basic electronic component that changes the electrical resistance depending on the light intensity.
-
It is one of the most popular and most used sensors of electronic and robotic projects.
-

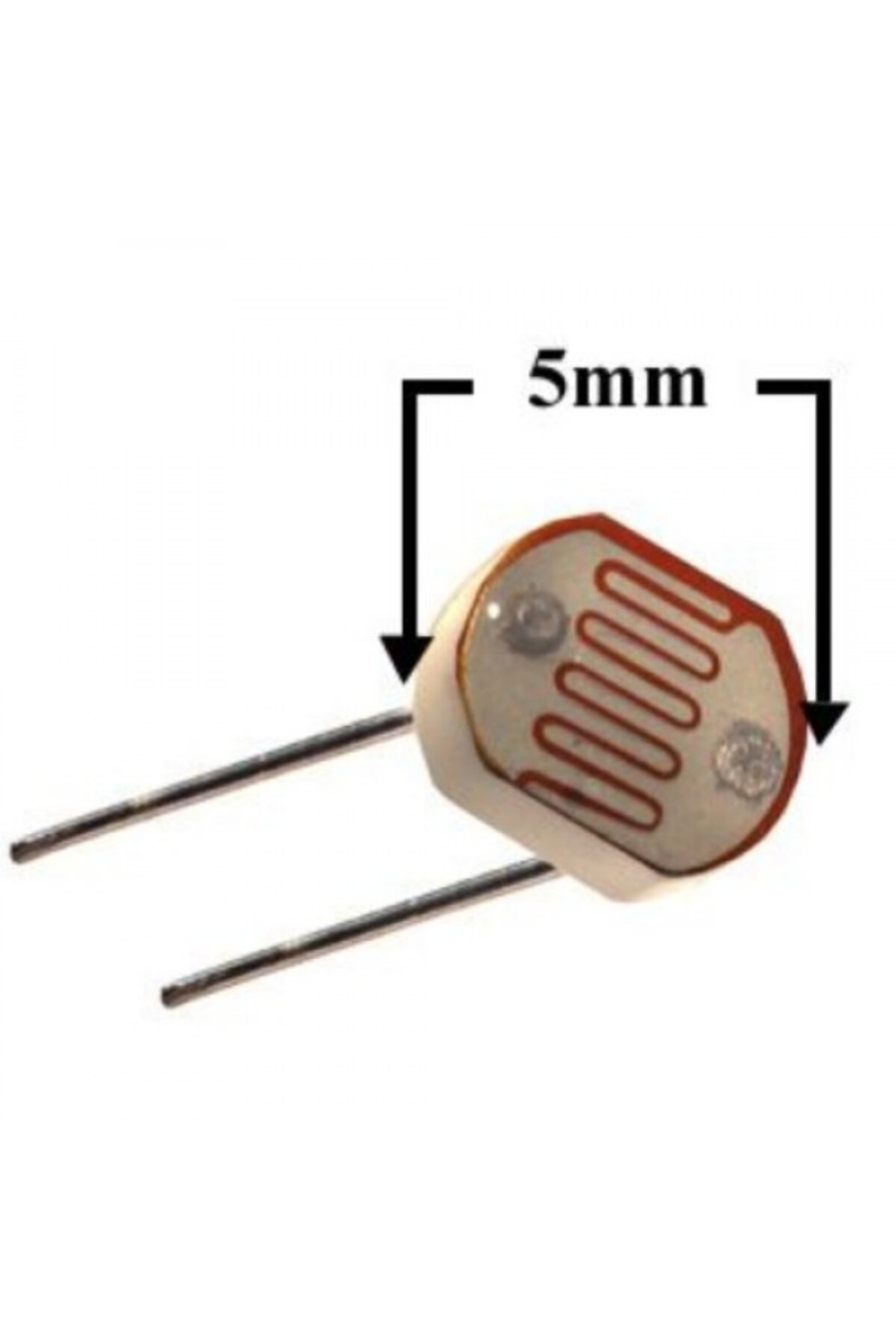

"5mm" refers to the diameter of the sensor (usually the width of the circular, plastic or epoxy protective sleeve).
-
This size is the most preferred type as it provides easy integration into breadboards and circuit boards. Use of 5mm LDR Since LDR is a resistor, it produces a resistance value that cannot be read directly by microcontrollers (such as Arduino) as voltage.
-
A Voltage Divider Circuit needs to be installed to convert this to voltage.
-
Voltage Divider Circuit SetupSerial Connection: The LDR is connected in series with a fixed-value resistor (e.g. 10 k $\Omega$).
-
Voltage Application: A constant voltage (e.g. 5V) is applied to this series circuit.
-
Measurement: The voltage value taken from the point where the LDR and constant resistance meet is connected to the Analog Input Pin of the microcontroller (such as A0-A5 in Arduino).
-
As the light intensity changes, the resistance of the LDR changes, which causes the voltage at the junction of the circuit to change.
-
The microcontroller detects the light level in the environment by reading this voltage.
-
Fields of Application5mm LDRs are used in a wide range of projects thanks to their simple and cost-effective: Smart Lighting Systems (Photocells): Automatically turn on street lights or garden lights when the environment is dark.
-
Robotics: Light-sensitive robots (Line-Followers or robots directed at the light source)Alarm Systems: Detecting the interruption of a light beam.
-
Screen Brightness Adjustment: Automatic adjustment of the device screen brightness according to the ambient light.
