WHEN THE RIGHT LOAD OUTPUT TERMINAL IS IDLE, THERE IS NO VOLTAGE CHANGE AT THE OUTPUT.

CONNECT THE LOAD TO THE OUTLET AND PERFORM YOUR TESTS.

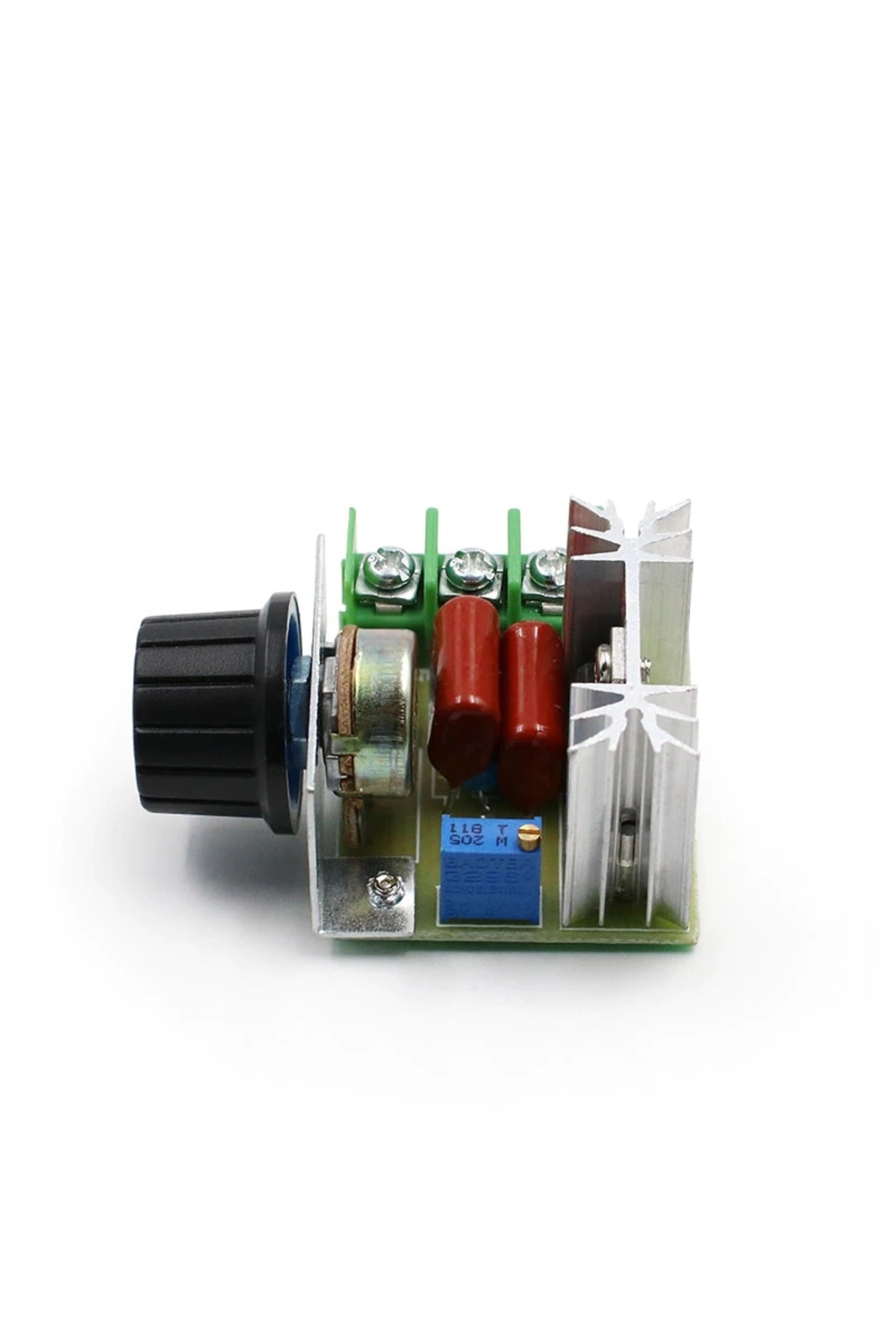

Blue pot is for fine tuning for the lowest level of voltage at the output.

The position of the lowest voltage level between 30-80V is set with this pot.

Normally you can reduce the voltage up to 50V levels.

Moreover, if you want to lower it to a lower voltage or lower it to a higher voltage level, you can adjust it with this pot.

Do not change the setting of this pot if it will not make a difference in your application.

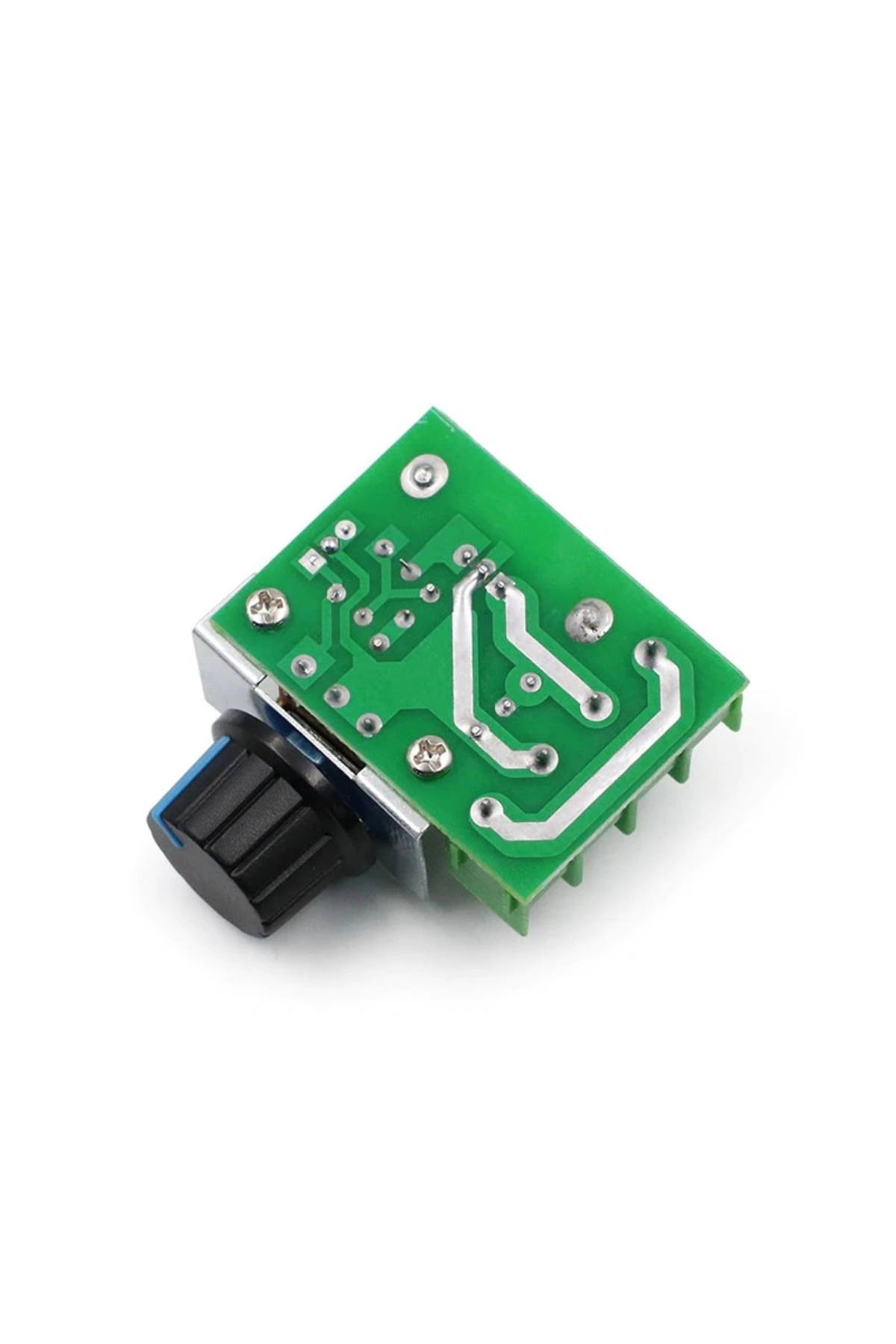

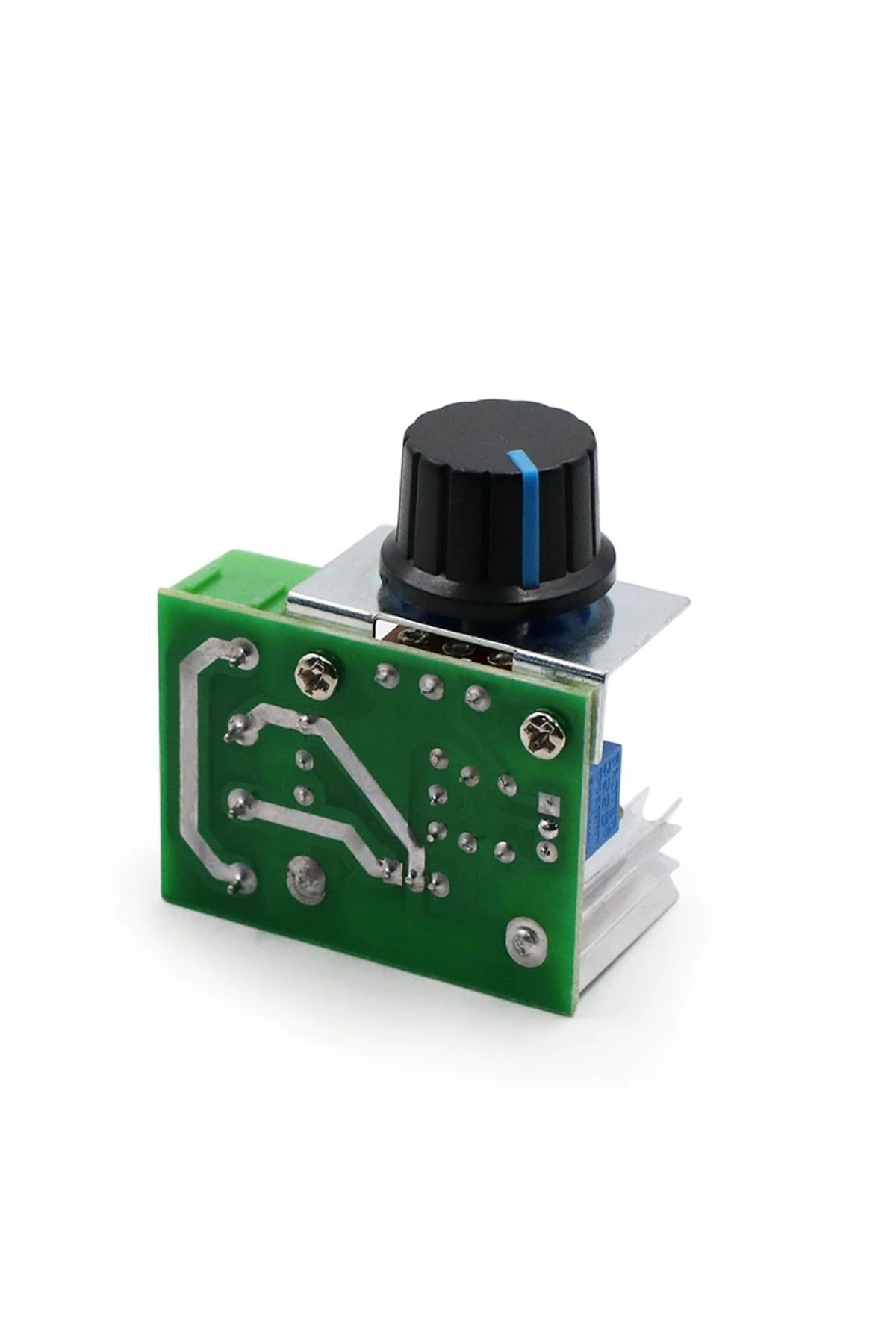

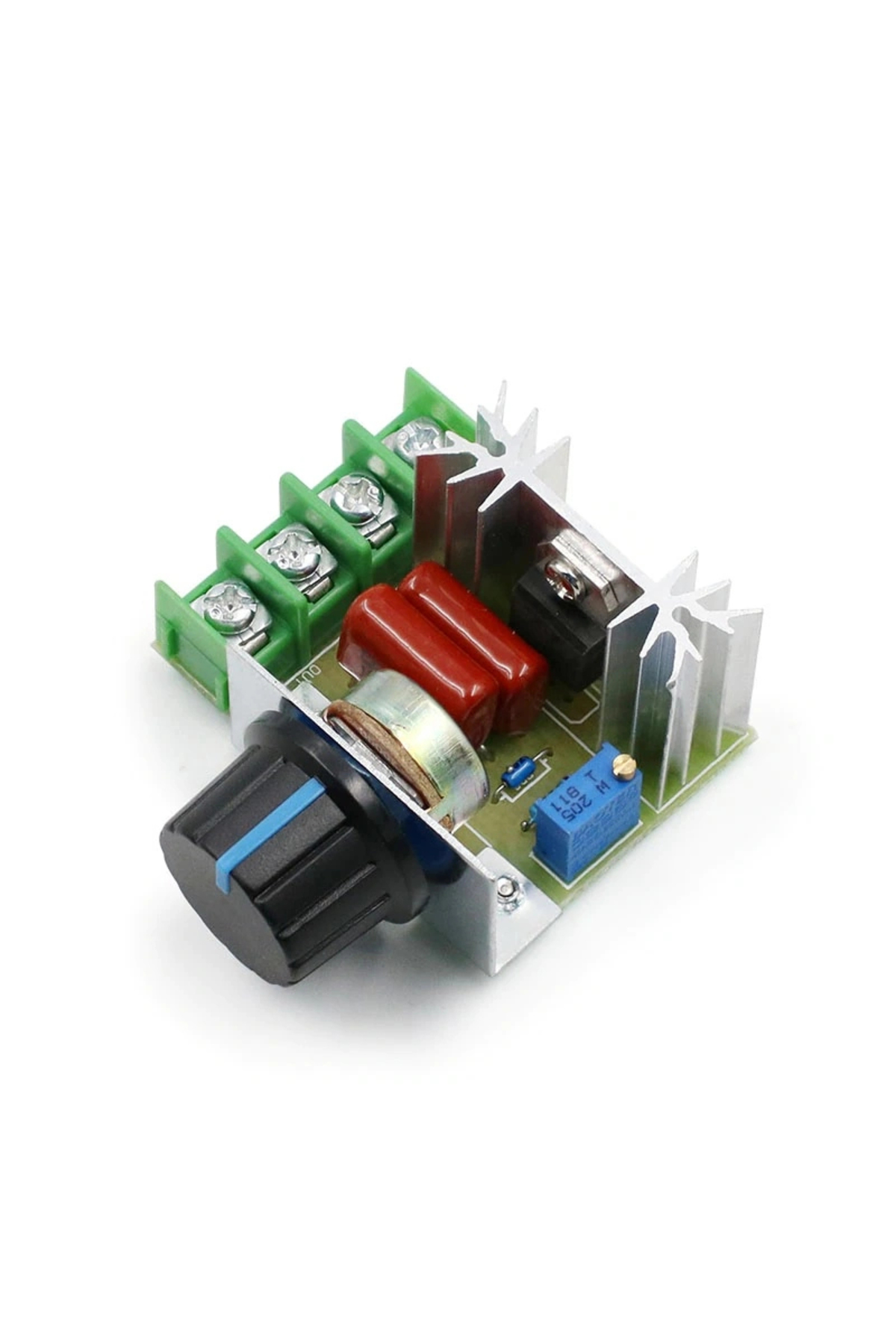

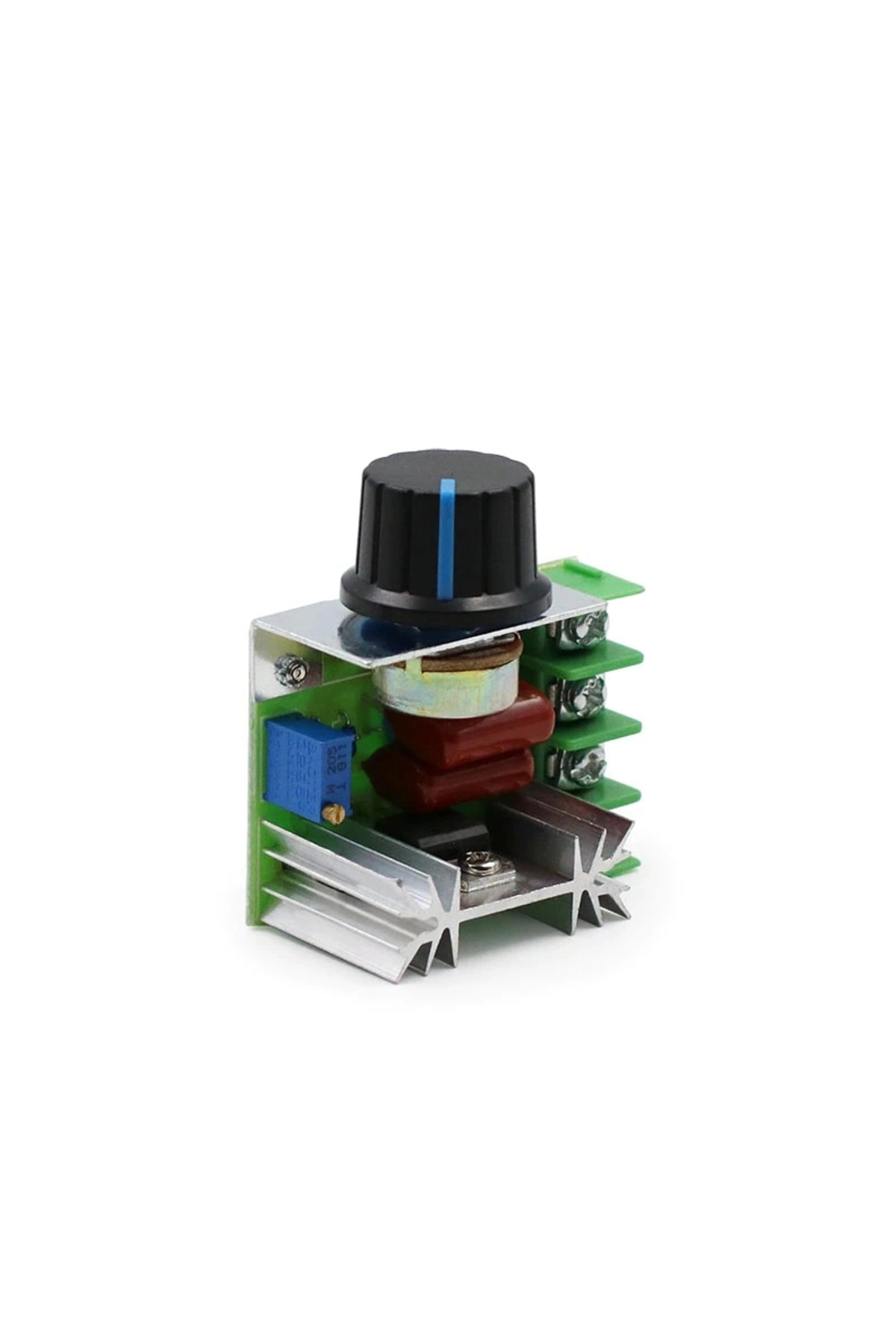

2000W 220V AC DİMMER It can be used for voltage control of devices such as electric oven, resistance, water heater, lamps, fan, motor.

It is a control circuit that you can use to control the power of your devices operating with AC voltage.

Using this circuit, you can control the brightness of your normal incandescent and halogen bulbs, adjust the power of your heaters, and control the speed of your single-phase AC motors (which may not work smoothly on all motors).

It can be used with a maximum resistive load of 4000W.

Allows you to control 220VAC between 10-220V.

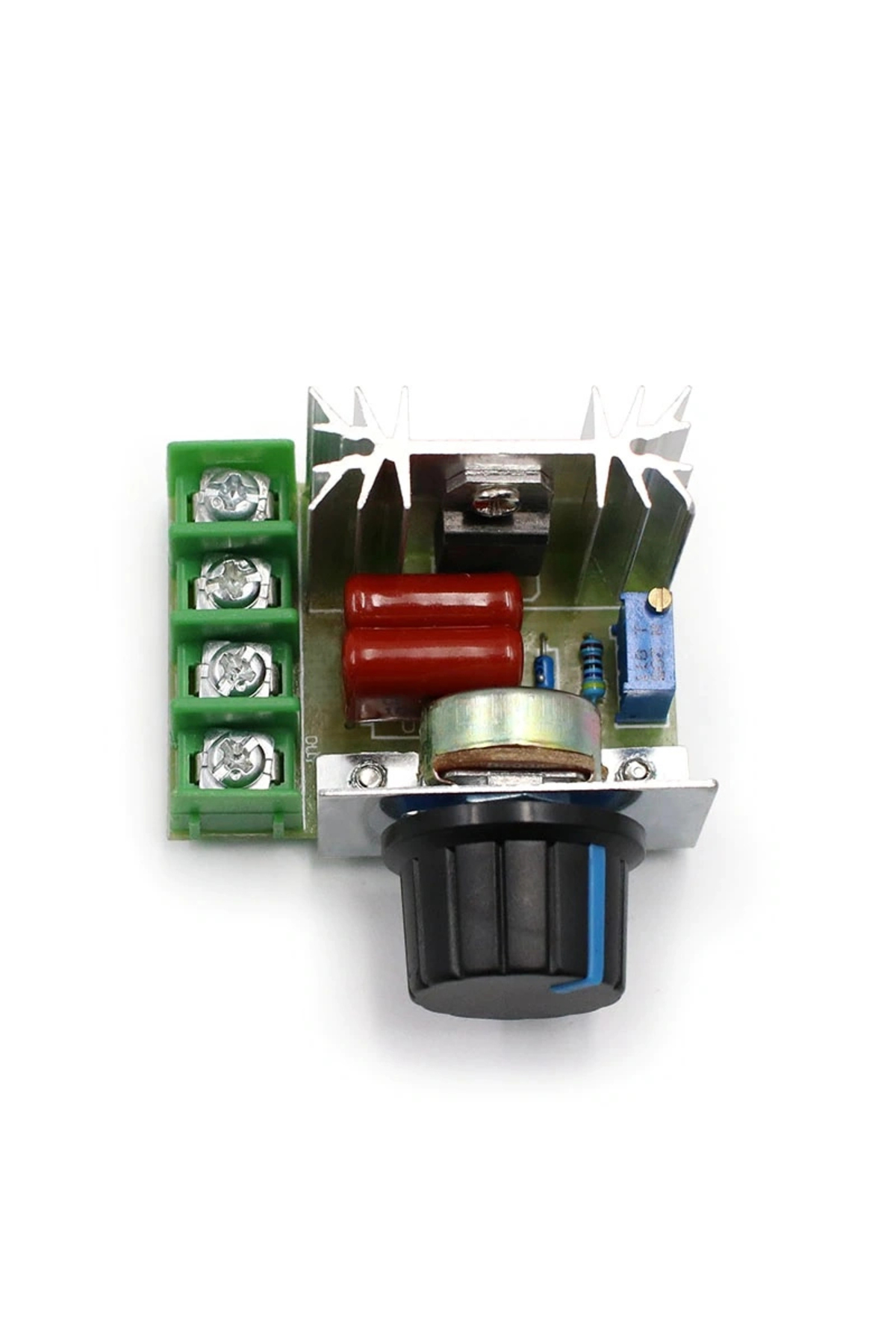

NOTE: The left 2 terminal connections on the module are AC 220V input and the right 2 terminal connections are dimmer load output.

When you measure with a multimeter, you do not see a value, you need to measure under load.

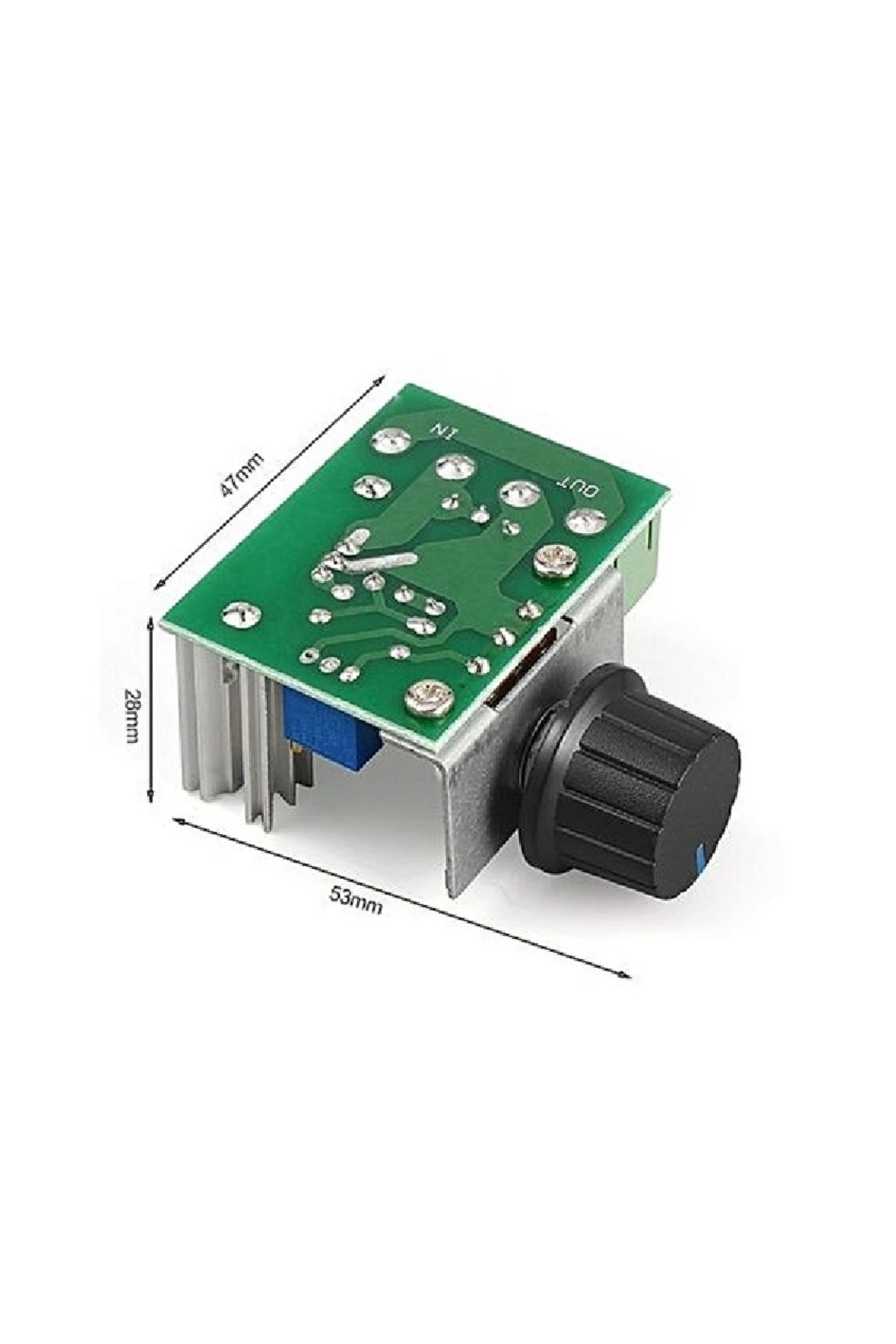

Input Voltage: 220V Maximum Power: 2000W Adjustable Voltage: 50V-220V FR-4 pcb that can withstand high temperature Dimensions: 4.8cm x 5.5cm x 2.7cm.

Package Content: 1 Piece 2000W Dimmer Warranty.

When the product package is opened, it is out of warranty.
