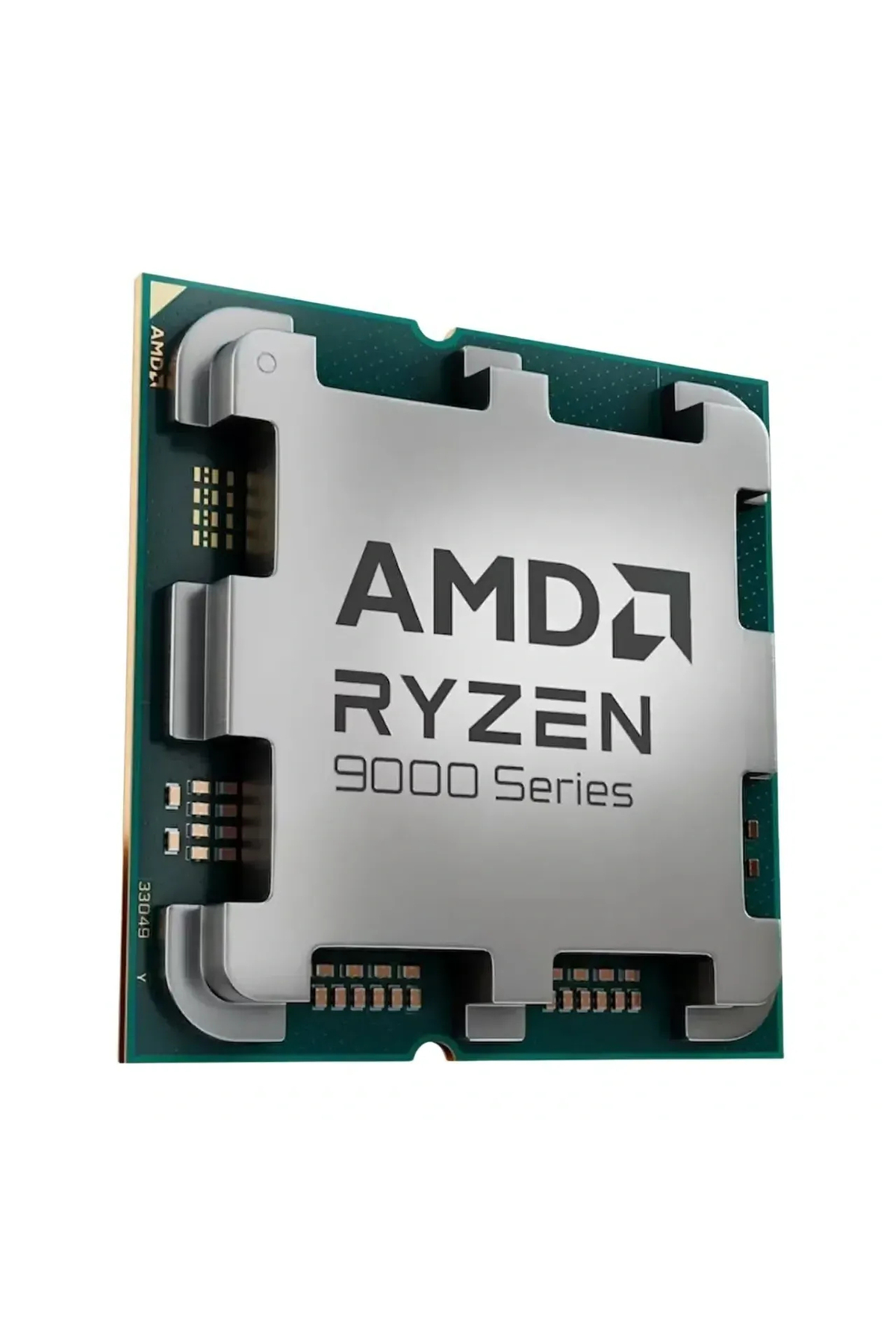

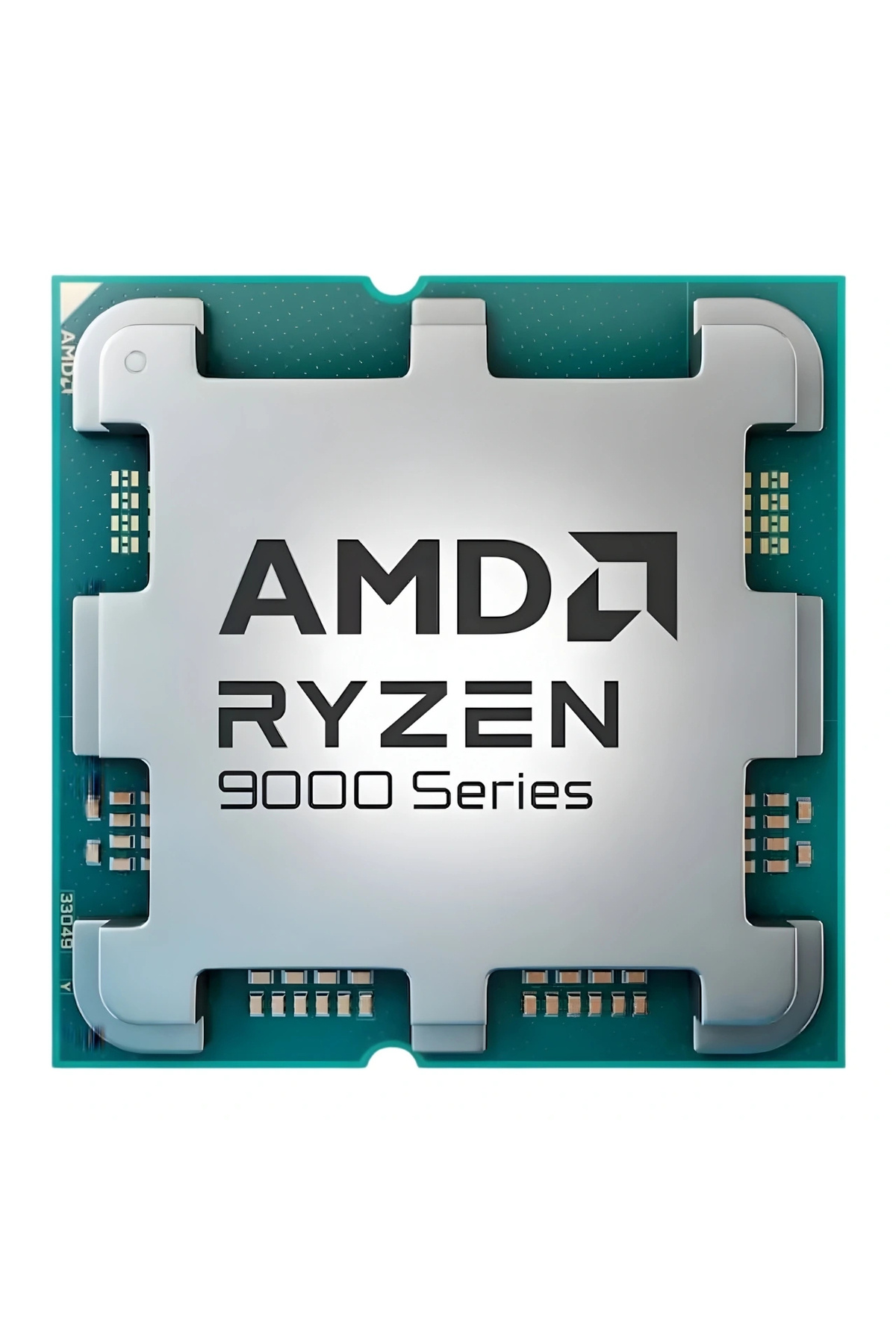

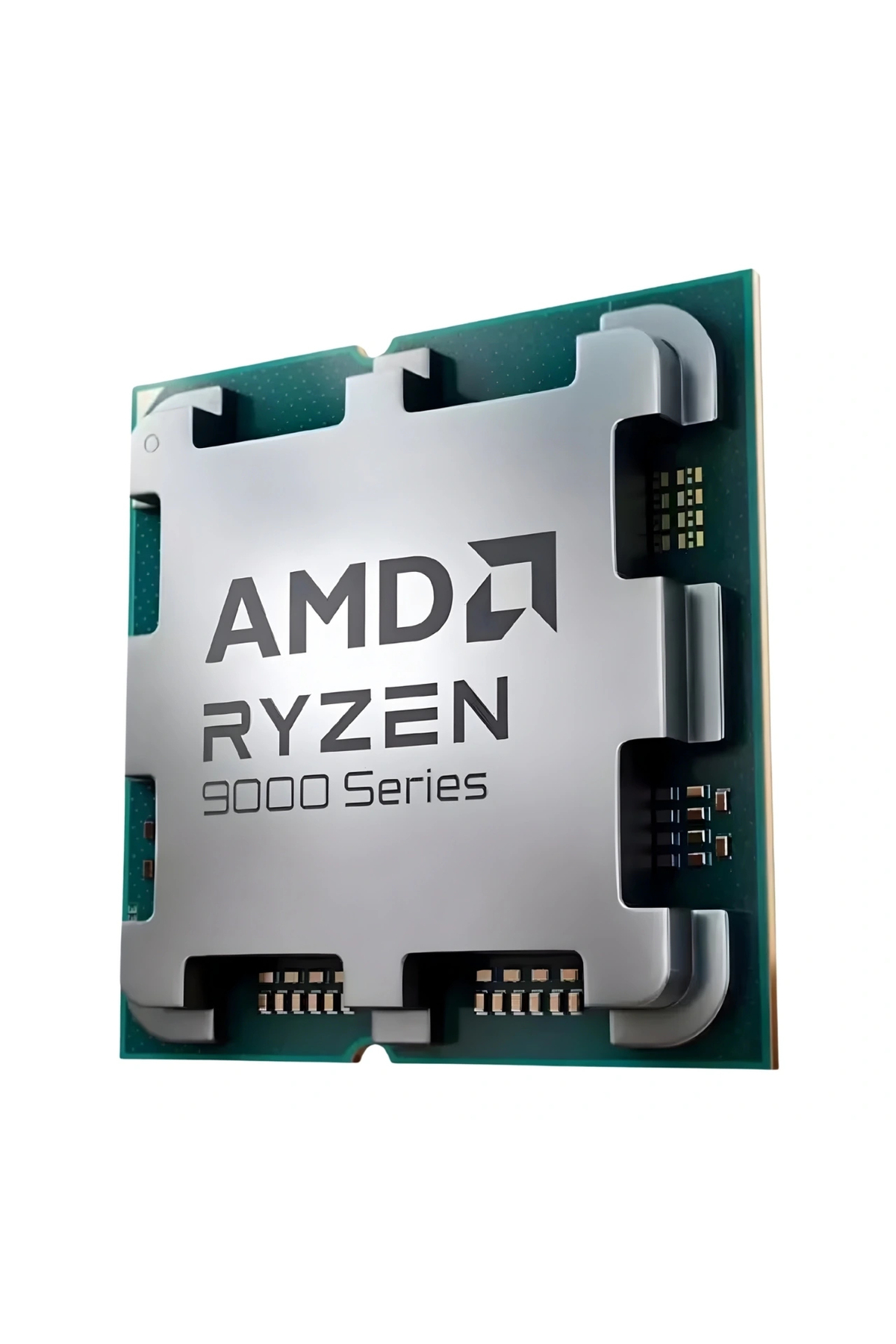

AMD Ryzen 7 9800X3D Octa Core 5.2 GHz 96MB (Without Box/Fan) TRAY Processor General Features Model Name: AMD Ryzen 7 9800X3D Serial: Ryzen 9000 Segment: Enthusiast Desktop - High Performance Desktop User Type: Professional and gaming users Global Use: Available worldwide Architecture: Zen 5 Cores: 8 Threads: 16 Processor Speed: 4.7GHz (Basic) - 5.2GHz (Max.

Boost) Total Cache: 104MB (L1: 640 KB, L2: 8 MB, L3: 96 MB) TDP: 120W Process Technology: TSMC 4nm FinFET Socket: AM5 Chipset Support: A620, X670E, X670, B650E, B650, X870E, X870, B840, B850 Technical Specifications Overclocking Support: Yes AMD EXPO Memory Overclocking Technology: Yes Precision Boost Overdrive: Yes Voltage Optimization: Curve Optimizer Cooling Recommendation: Liquid cooling recommended Maximum Operating Temperature (Tjmax): 95°C PCIe Version: PCIe 5.0 Total PCIe Lanes: 28 (24 usable) RAM Type: DDR5, supports up to 192 GB Memory Channels: 2 Maximum Memory Speed: 2x1R DDR5-5600 2x2R DDR5-5600 4x1R DDR5-3600 4x2R DDR5-3600 ECC Support: Yes (requires motherboard support) Graphics Features: AMD Radeon Graphics, operates at 2200 MHz, features 2 graphics cores Connectivity Features: USB 3.2 Gen 2 (10Gbps) x4, USB 2.0 x1, USB Type-C DisplayPort Mode Featured Highlights High-Performance Processor: Reaching speeds up to 5.2GHz, offers a top-tier solution for gaming and intensive processing needs.

Wide Cache: 104MB cache provides high performance, especially for games and creative applications.

Modern Connection Support: PCIe 5.0 and DDR5 support offers maximum compatibility with next-generation hardware.

AMD EXPO and Precision Boost 2: Memory jamming technologies maximize performance.

Energy Efficiency: TSMC provides high performance while optimizing energy consumption with 4nm FinFET technology
