product description:

Designed for welding works to continuously burn 2.50, 3.25 and 4 mm (max) diameter rod electrodes with inverter technology, direct current (DC) output, rutile and basic character cover.

As a result of the optimization of the inverter technology with its vertical welding characteristic, it provides stable arc and good re-ignition performance.

It is suitable for use with a generator provided that it has a power of at least 7.5 KVA.

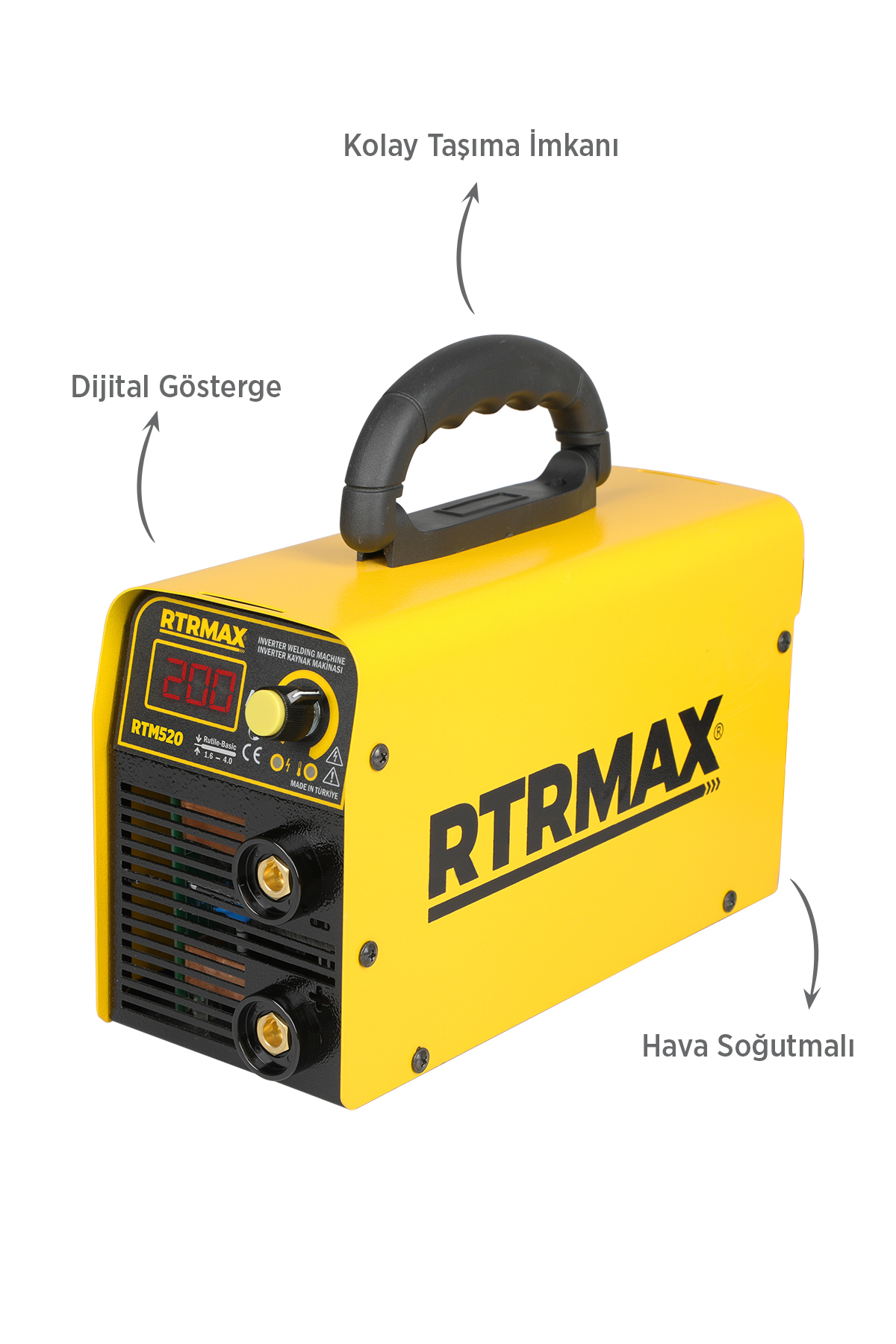

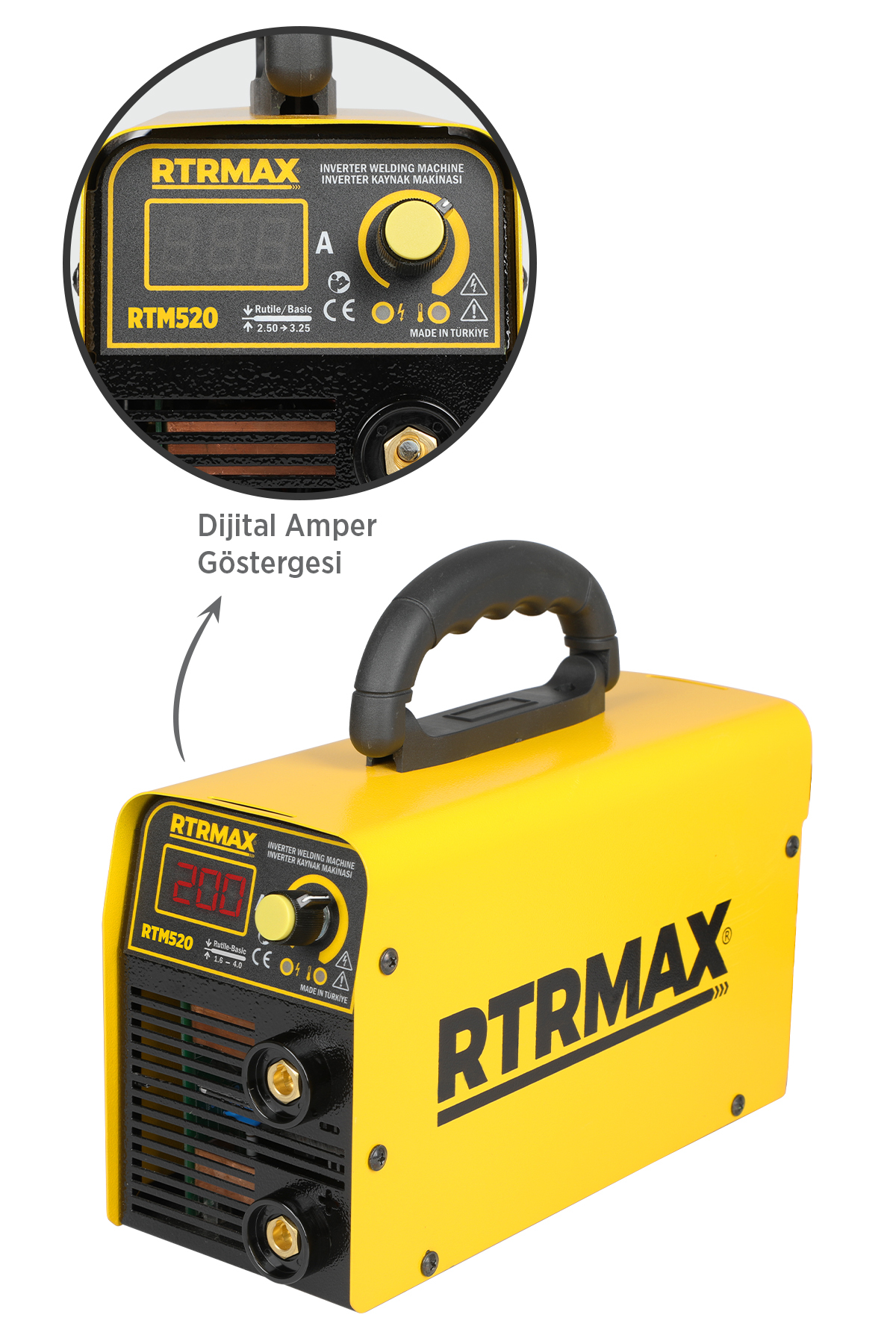

There is a digital current indicator where the set source current can be observed.

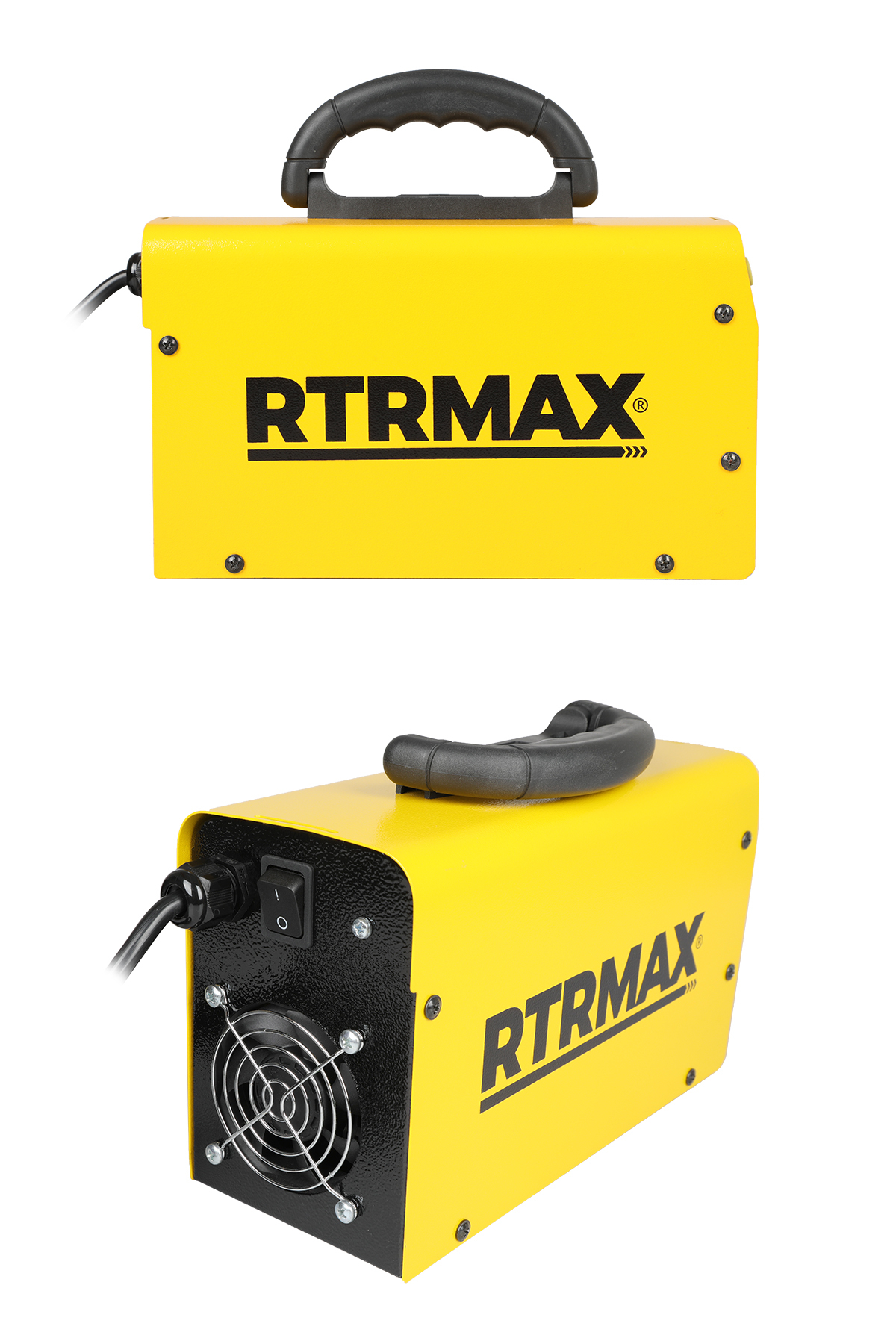

The machine is fan cooled and thermally protected against overheating.

Complies with IP21S standards.

100% Domestic Production.

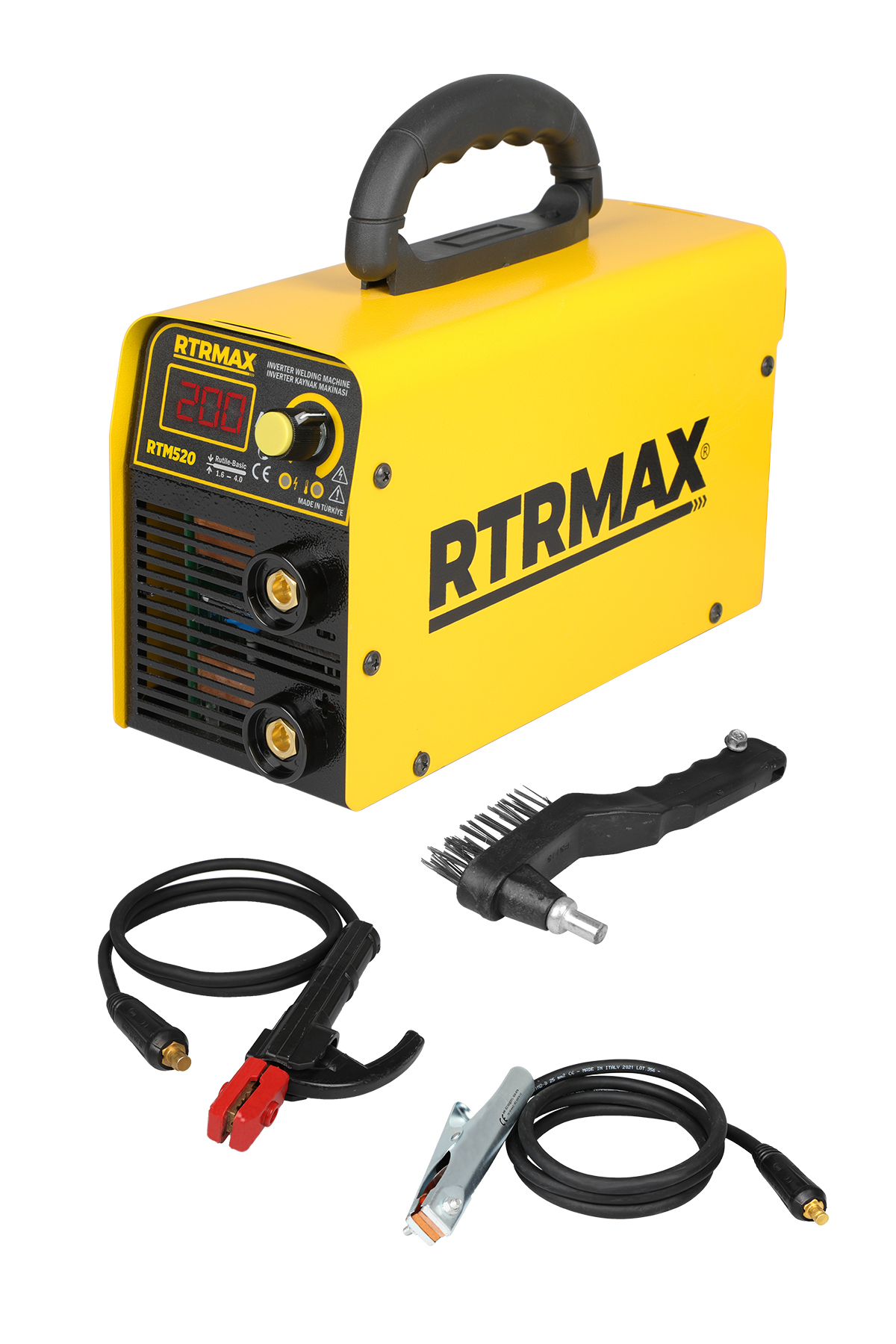

Package Content

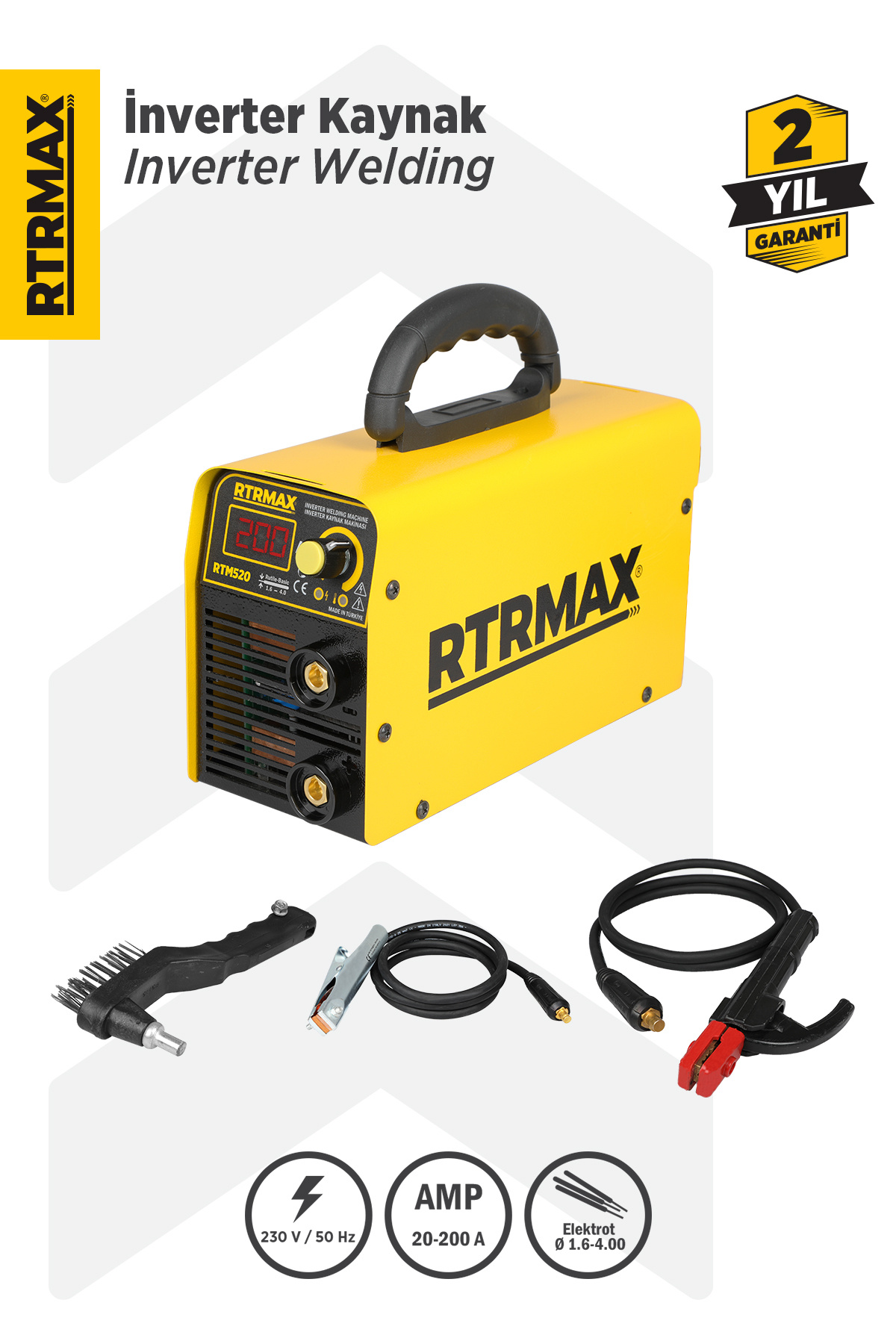

1 Inverter Welding Machine 160 A I.G.B.T.

1 Piece 2.5mt Electrode Pliers Cable(16 mm2)

1 Piece 1.5mt Chassis Pliers Cable (16 mm2)

Warranty Certificate and User Manual

Technical Specifications

Current Range:20-200A

Electrode Diameter: Ø 1.6 – 4.0 mm

Withdrawn Power: 7 Kva

Protection Class:

Operating Voltage: 230 V

Frequency: 50Hz

Weight 3,5 kg
