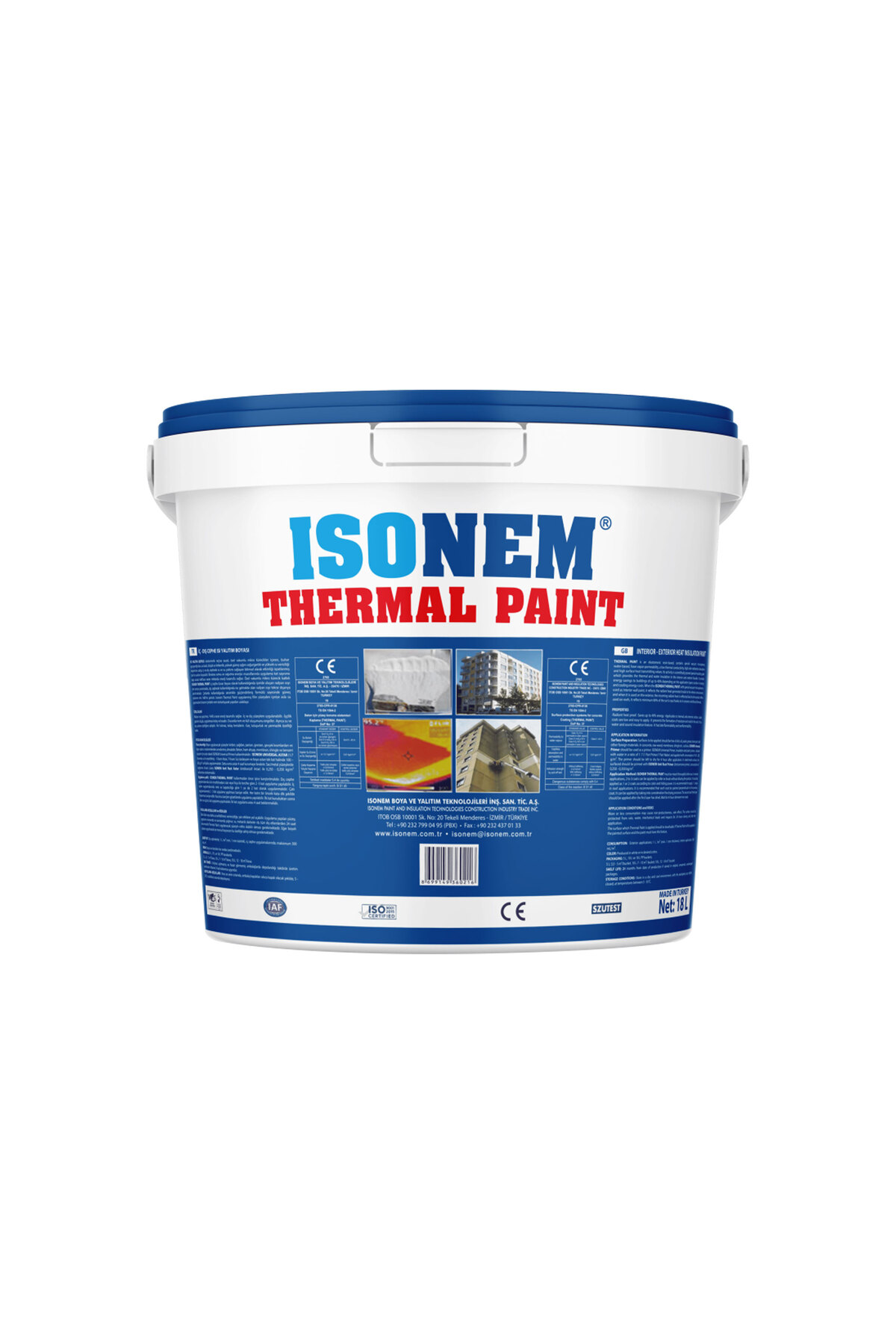

Isonem Thermal Paint 5 lt Insulation Paint It is a scientifically proven special insulation paint that contains elastomeric resin-based, special vacuum microspheres, has vapor permeability, water-based, low thermal conductivity, high sunlight absorbency and high surface heat efficiency values, and provides heat and water insulation on interior and exterior facades.

It saves up to 40% of energy depending on the number of application floors in heating and cooling energy costs of buildings.

When used as a special vacuum microspheres added ISONEM THERMAL paint interior wall paint, it reflects the radiant heat generated inside again, and when used on the exterior, it reflects the incoming radiant heat outside again.

When used on roofs, thanks to its ceramic reinforced formula, sun rays are min.

Reflects 80%.

While the film applied with Isonem Thermal Paint can never pass water through the surface, the moisture inside the building evaporates away from the structure.

FEATURES• Radiant heatproof, energy saving up to 40%.

It can be applied to interior and exterior surfaces, labor costs are low, easy to apply and short.

It prevents the formation of moisture and mold on the wall and also has water and sound insulation feature.

It does not retain dirt, is easy to clean, has late ignition and non-flammability properties.

It can be produced in all desired colors.

TECHNICAL SPECIFICATIONS Density (25°C, g/mL): 0.70 ± 0.15 pH (25°C): 7.0 – 9.0 Viscosity (25°C, mPa.

s): 12500 - 13500 Solids Ratio (Wt %): 48 ± 2 Solids Ratio (Volumetric %): 68 ± 2 Water transfer rate (kg/ m2. h0,5): <

0.1 CLASS W3 Adhesion strength by pull-off test (N/mm2): Crack closure or flexible systems ≥ 0.8 N/mm² Water vapor permeability without traffic load (m): 5 ≤ SD ≤ 50 CLASS II Class: COLD CLIMATE PAINT Brightness: N/A (value not sought) Mourning scouring resistance (μm): CLASS II Covering strength (m²/L): CLASS I Dry film thickness: CLASS E5 Grain size: CLASS S2 Resistance to impact: No cracking, no rupture Solvent: Water Crack covering property (μm): Value not sought, CLASS A Carbon dioxide permeability (g/m².

d): No value is sought, CLASS C ∇ Surface heat transfer value: min.

0.80 Absorption value of sunlight: 0.820, min.

0.80 Thermal paint surface resistance (RS): 0.0495 ± 1.5% Thermal conductivity coefficient (W/mK: 0.023, λ<

.060
