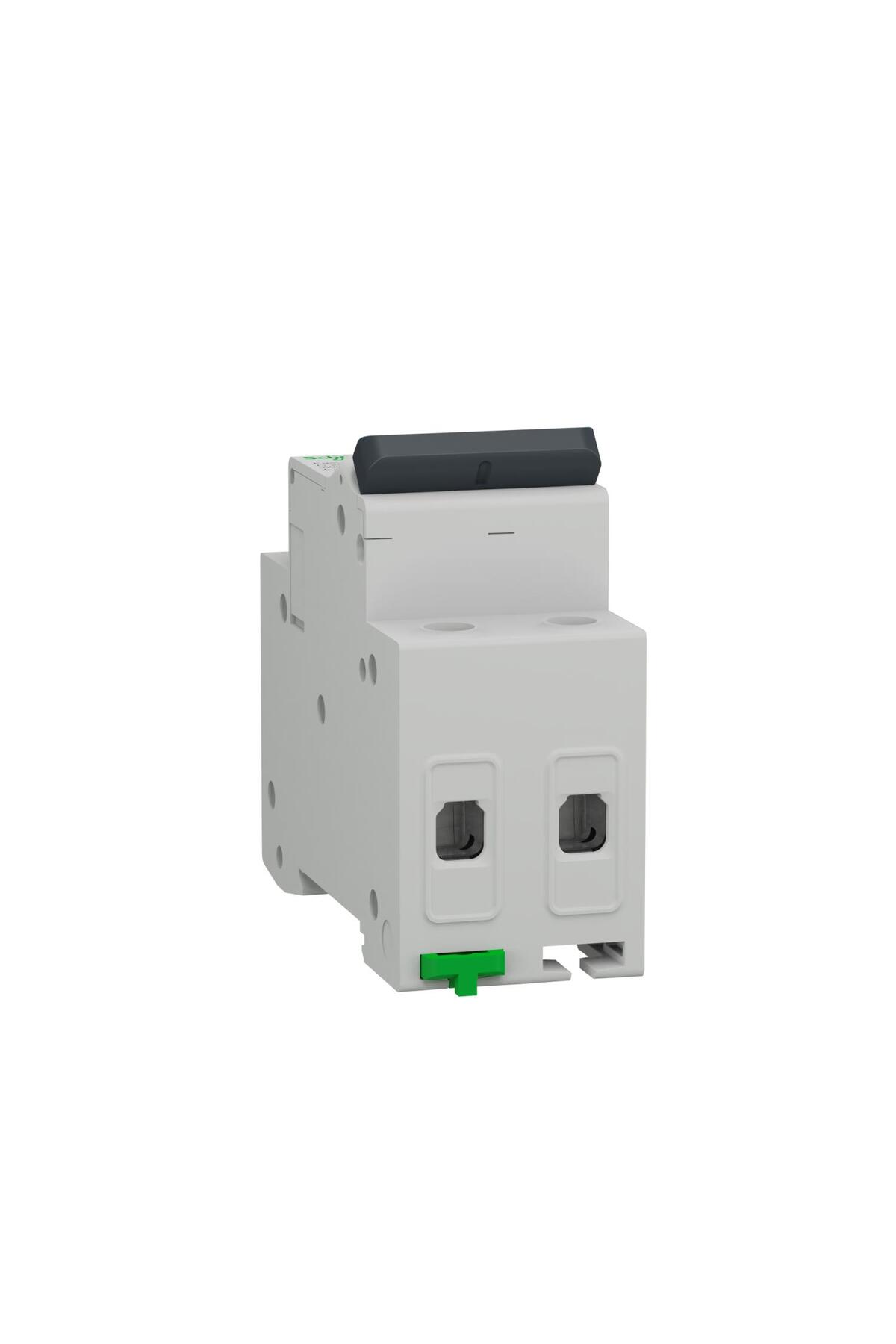

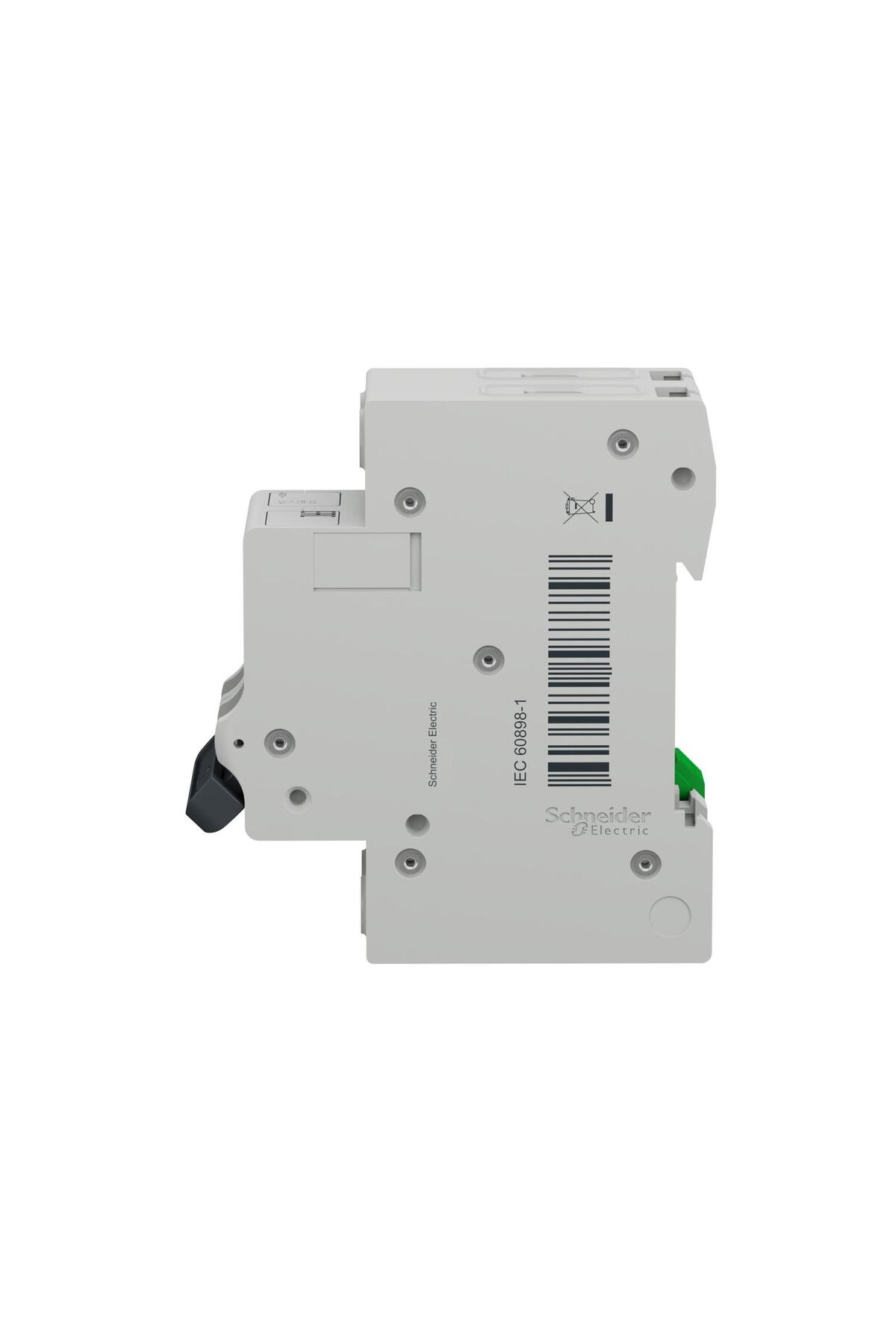

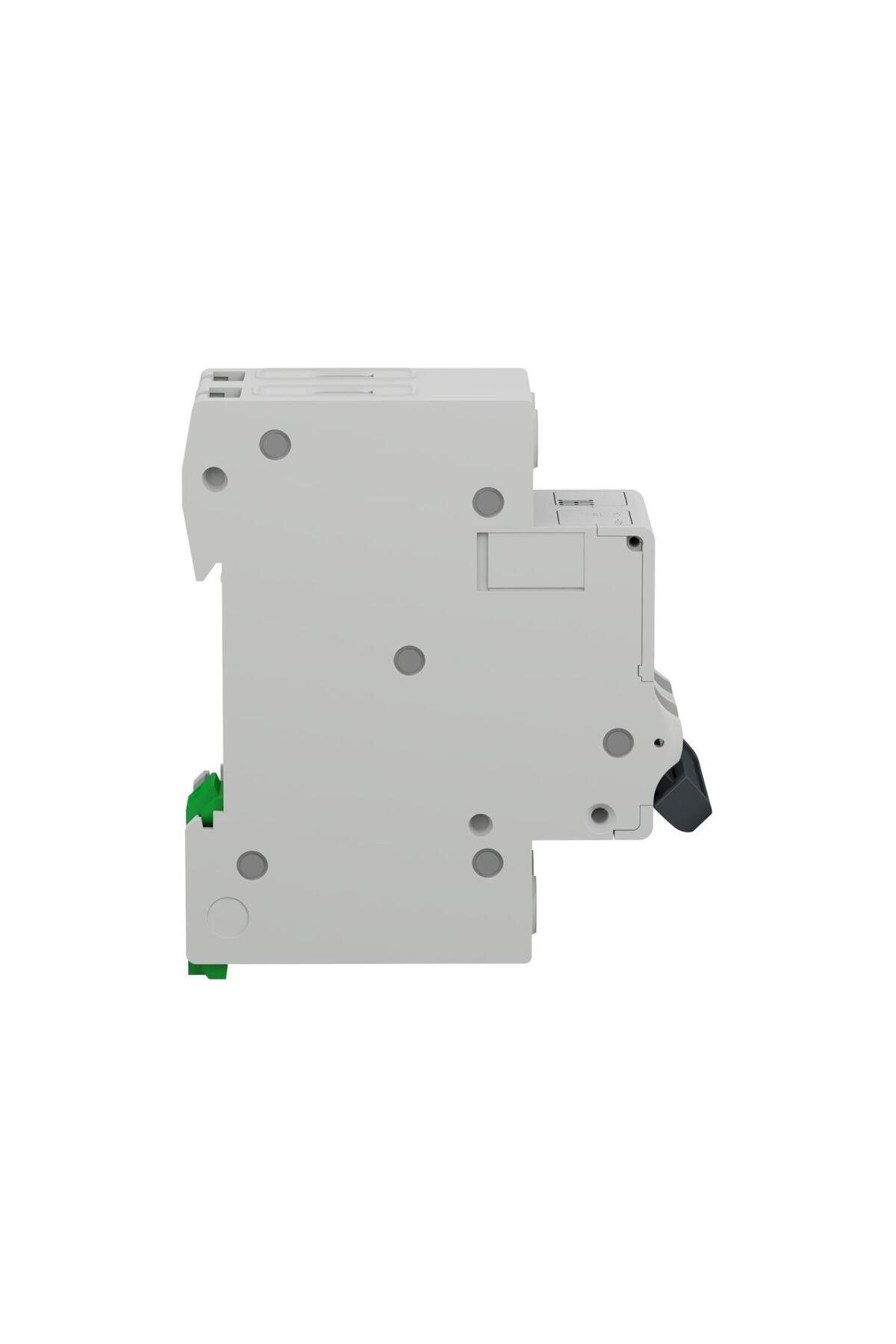

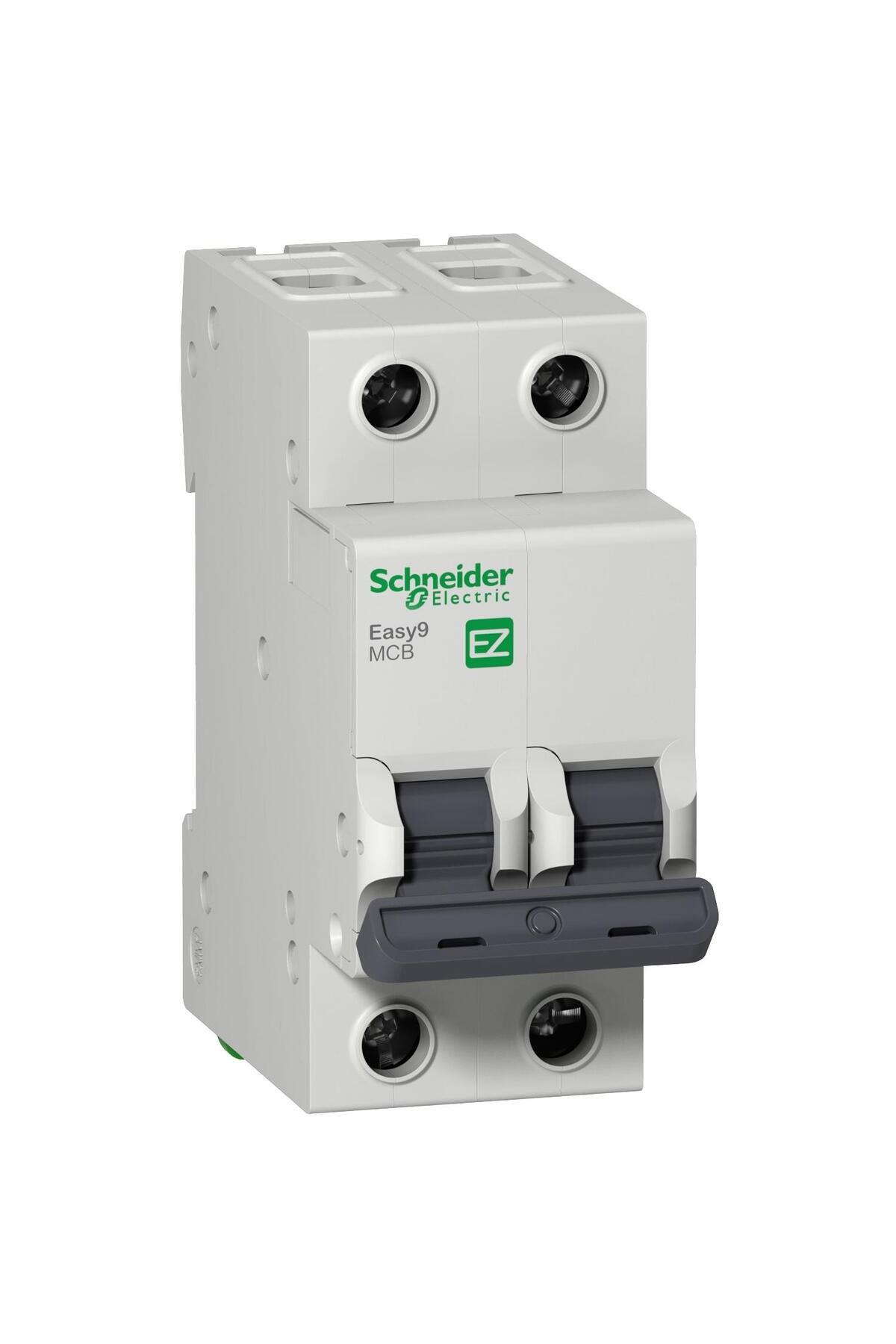

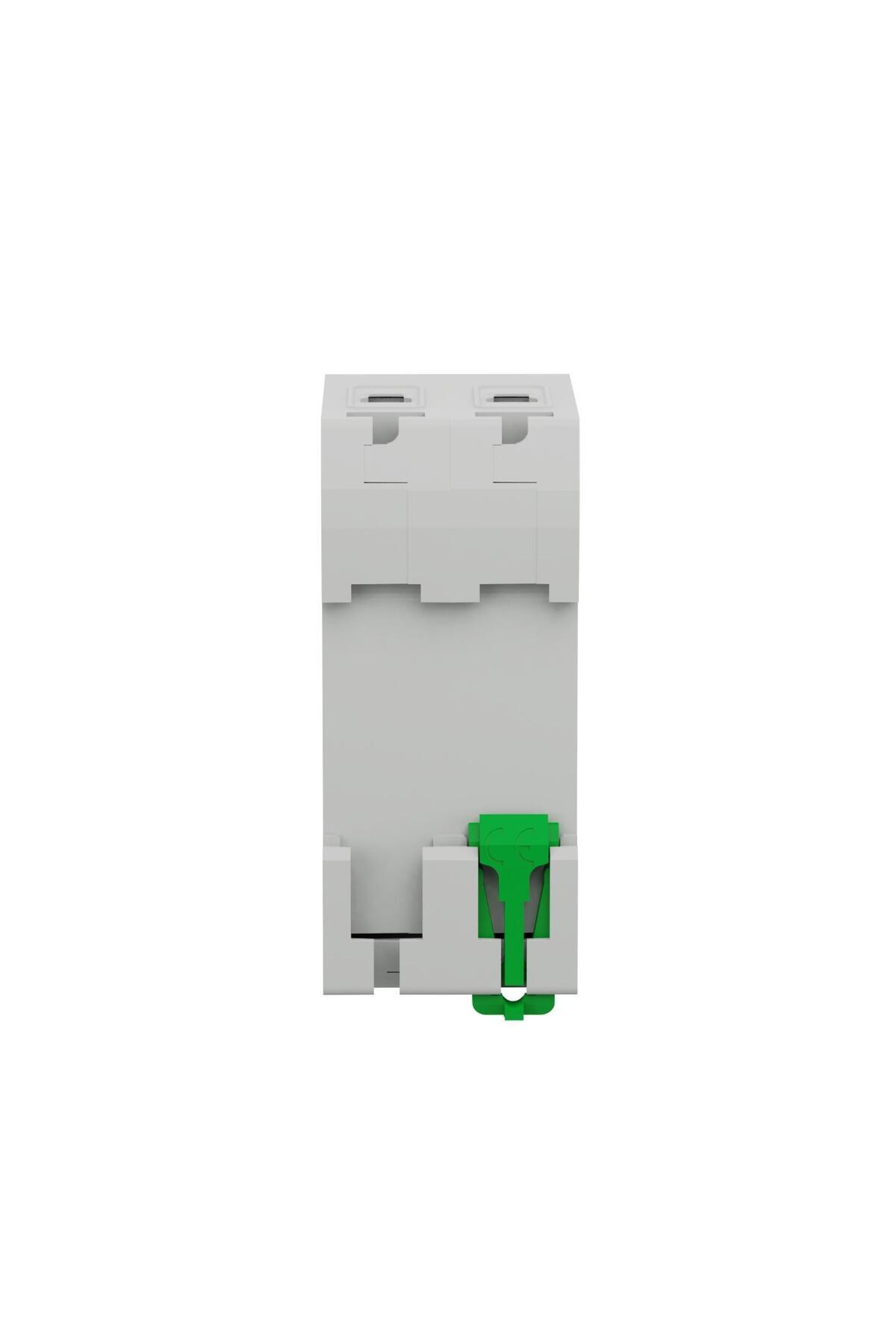

series Easy9 device application Distribution Product or component type Miniature circuit breaker Product group Easy9 MCB Poles 2P number of protected poles 2 [In] rated current 63 A Mains type AC trip unit technology Thermal Magnetic inclination code C breaking capacity 10000 A 220 V AC 50/60 Hz per IEC 60898-1 6000 A 400 V AC 50/60 Hz per IEC 60898-1 insulation compliance Yes per IEC 60898-1 Supplementary Mains frequency 50/60 Hz [Ue] rated operating voltage 220 V AC 50/60 Hz 400 V AC 50/60 Hz magnetic trip limit 5..

.10 x In [Ics] nominal service breaking capacity 6 kA 100 % x In accordance with 230 V AC 50/60 Hz IEC 60898-1 [Ui] nominal insulation voltage 500 V AC 50/60 Hz IEC 60898-1 [Uimp] nominal impulse withstand voltage 4 kV IEC 60898-1 contact position indicator Yes Control type Toggle Mounting Type without on-board signaling Mountable mounting support DIN rail 9 mm screw pitch 4 Height 81 mm Width 36 mm Depth 66.5 mm color Grey (RAL 7035) Mechanical durability 10000 cycles electrical durability 4000 cycles connections - terminals Tunnel type terminal (top or bottom) 1…25 mm² flexible Tunnel type terminal (top or bottom) 1…35 mm² hard tightening torque 3.5 N.

m upper or lower earth leakage protection No Ambient Standards IEC 60898-1 Product certificates CE IP protection degree IP20 conforming to IEC 60529 pollution degree 2 tropical climate 2 relative humidity at 95% -5…60 °C Rated operating ambient temperature -5…60 °C Storage ambient conditions -40…85 °C Packaging units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 7.6 cm Package 1 Width 3.6 cm Package 1 Length 8.5 cm Package 1 Weight 246 g Unit Type of Package 2 BB1 Number of Units in Package 2 6 Package 2 Height 8 cm Package 2 Width 8.8 cm Package 2 Length 22.8 cm Package 2 Weight 1.545 kg Unit Type of Package 3 S03 Number of Units in Package 3 72 Package 3 Height 30 cm Package 3 Width 30 cm Package 3 Length 40 cm Package Weight 3 17.712 kg
