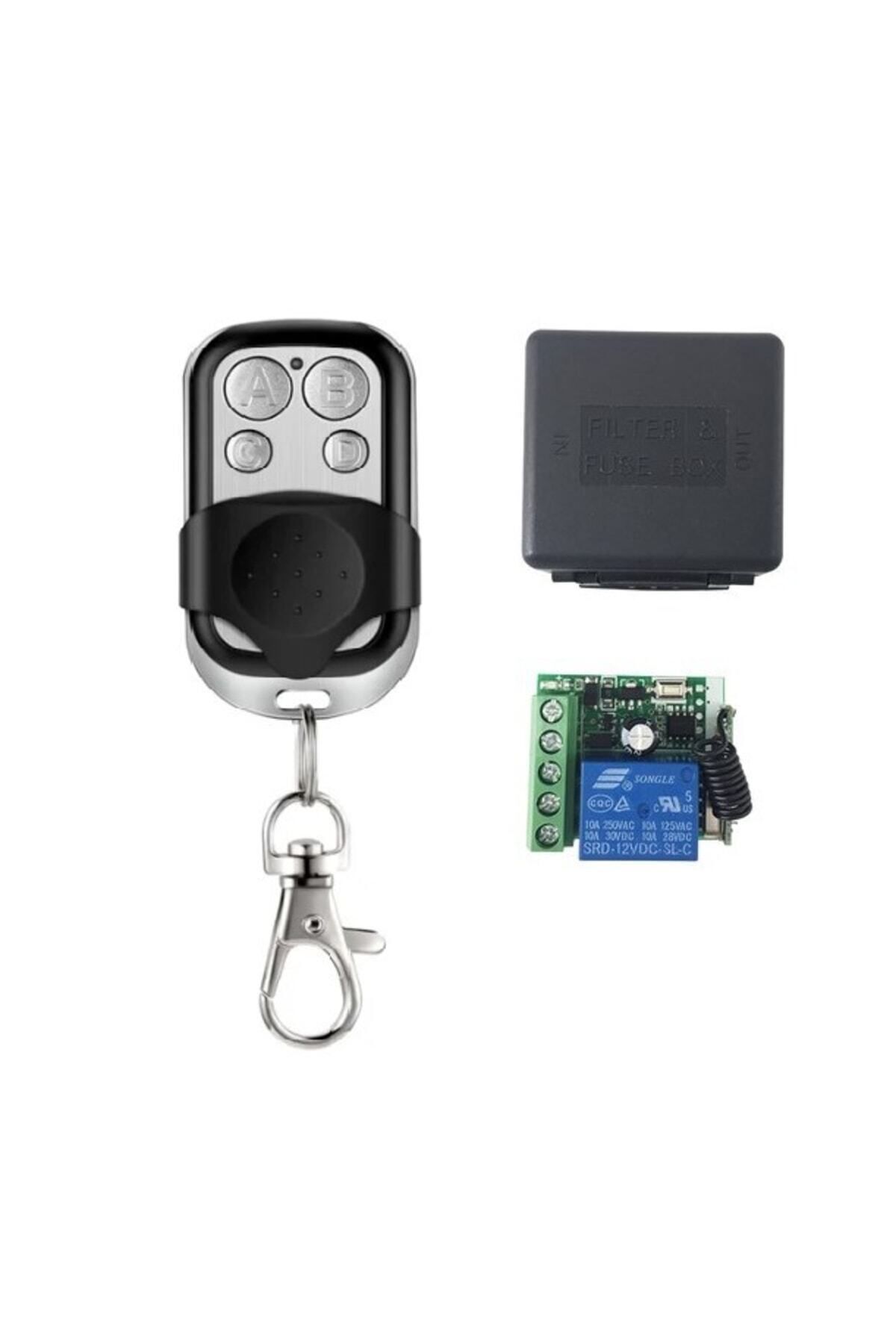

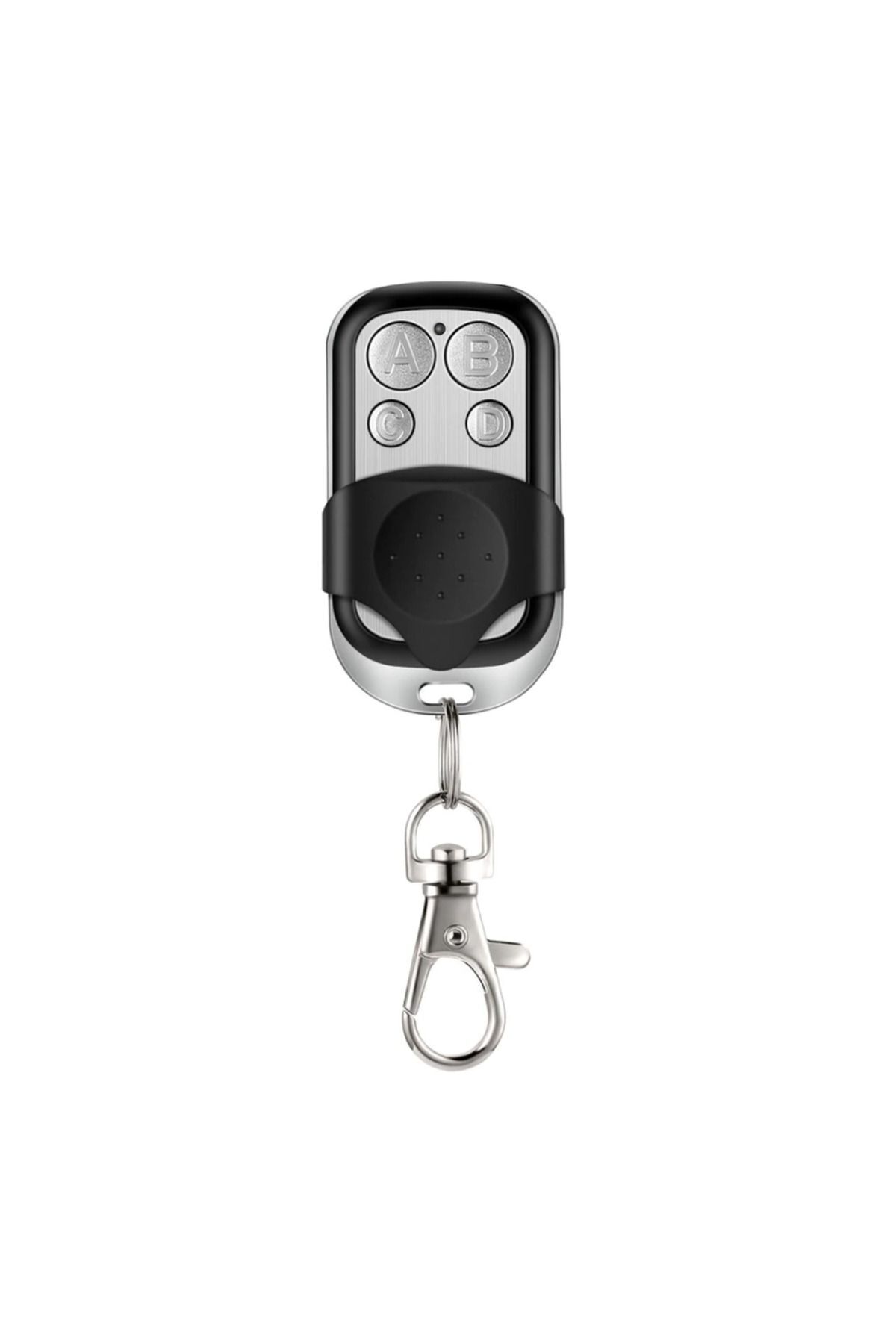

Electrimax RF Remote Control 10a RF Transceiver Transmitter Receiver 12V 1 Channel 1 Channel Remote control distance: 0

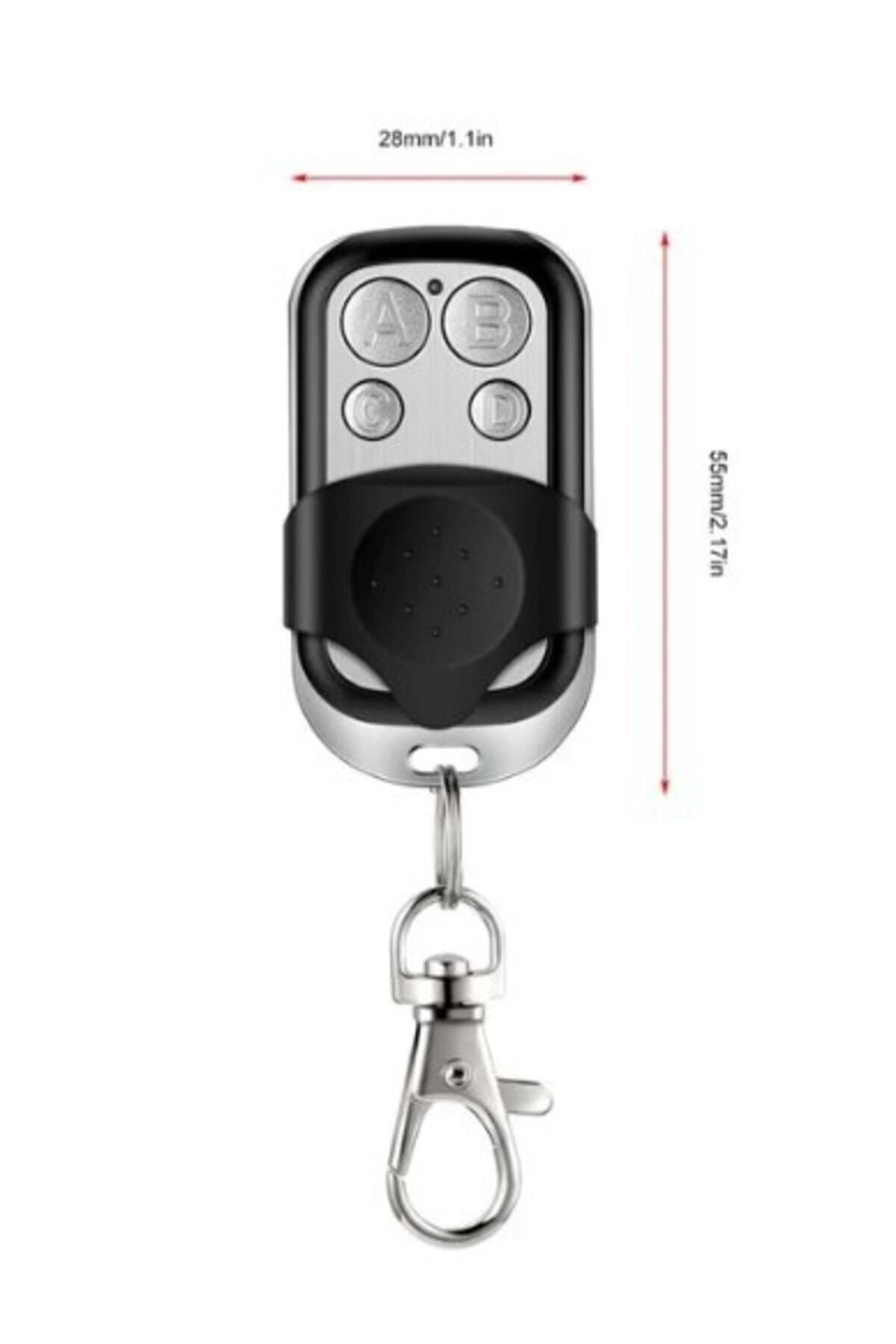

50 m Encoding: EV1527 Frequency: 315 or 433 MHz Size: 55mm x 30mm x 13mm Power supply: 1X12 V/23a battery 2

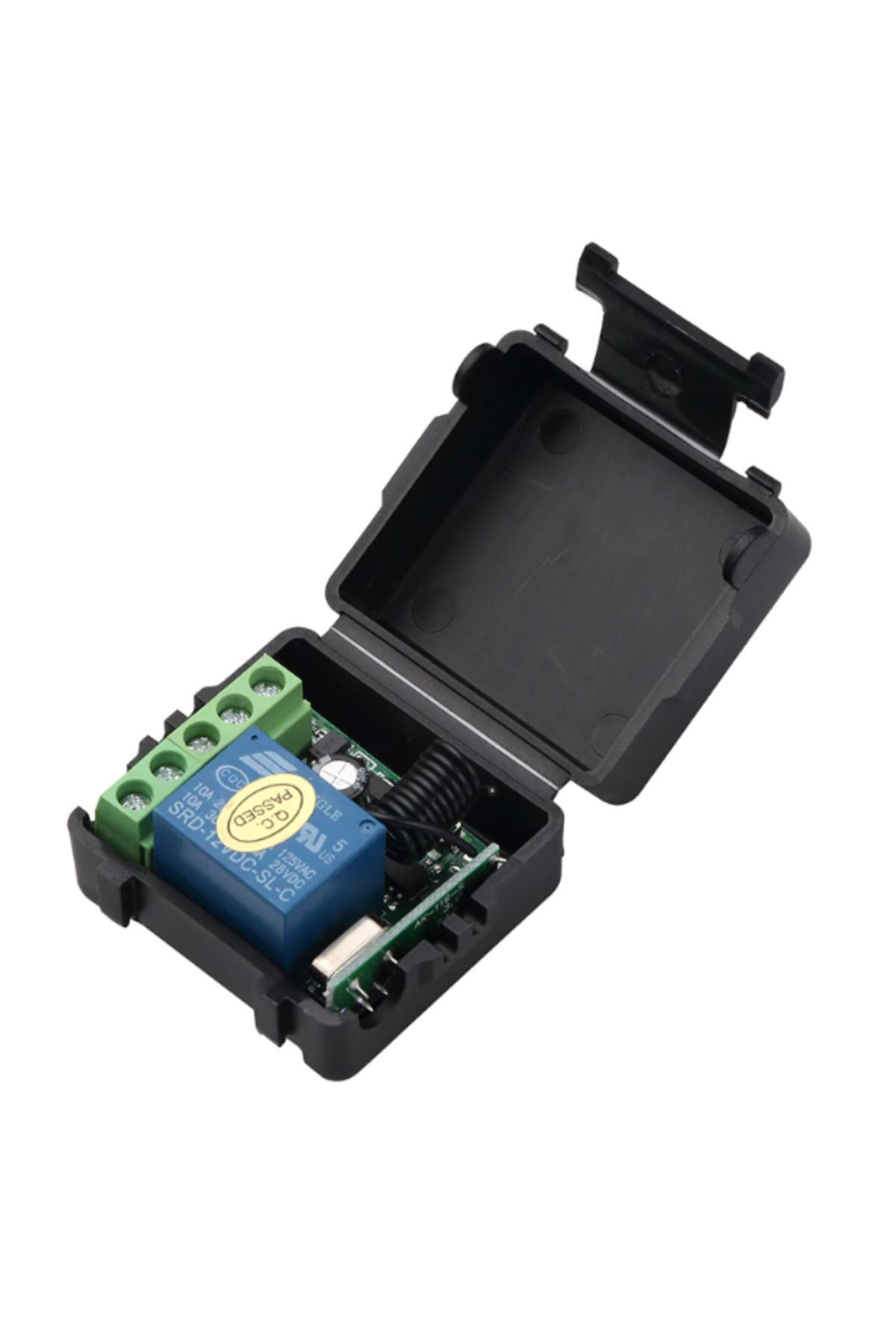

receiver Coding type: learning code Control type: pass-through, instantaneous, permanent Operating voltage: DC12V Operating current: le10mA Operating frequency: 315.433 MHz Operating temperature:

10 ~ + 70 ? Receiver sensitivity: ge

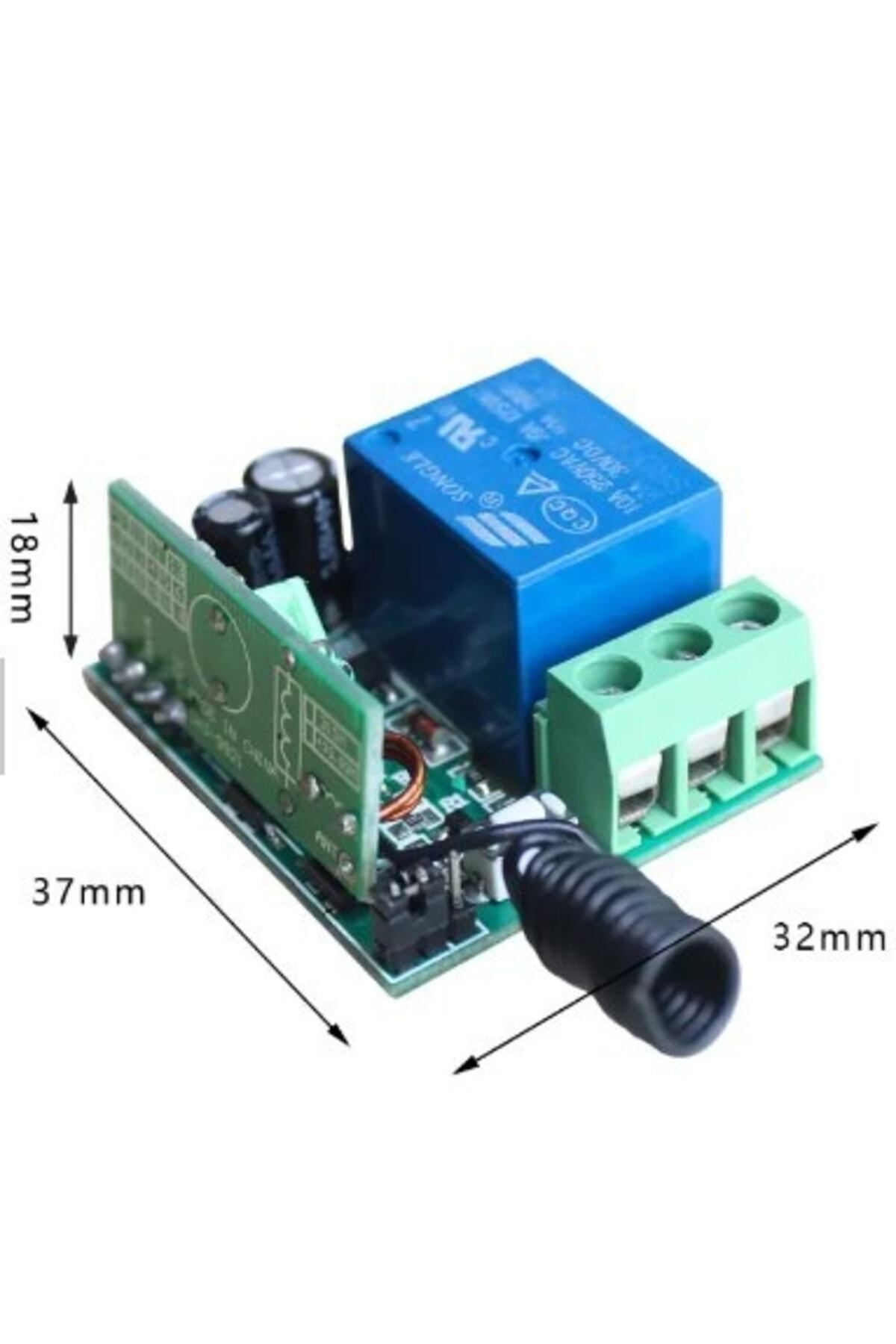

100dBm Output voltage: AC/DC (optional) Output current: le 10a PCB size (l x w x h): 35

32

17mm 3

function: Jog/instant: press one button running/on

relax your finger on the same button stop/off

1 channel switch 1 button needs remote control) Self-locking/toggle: press one button once/running

Press the same button again stop/off

(1 channel switch 1 button remote control required) Inter

lock/permanent: press one button running/ON, press another button stop/off

(one channel switchneed 2 buttons remote control) 4

learning and open code: Learning code: Press the learning button for 3 seconds, the indicator light is off

Then press any button of the transmitter

The indicator flashes 3 times and the indicator light comes on, it means that the learning is successful

Remove code: Approximately 5 to the learn button

Press for 8 seconds, the indicator turns on, it means that the codes have been removed successfully
