RFID Encrypted Door Lock card access control system is a professional security solution designed for home and office use, offering easy installation and practical installation.

Encrypted door lock provides controlled access by preventing unauthorized access thanks to card access control.

The device is compatible with proximity keychains and cards operating at 125 kHz frequency and responds quickly and reliably thanks to its high-precision reader structure.

Supports three different operating modes: RFID encrypted door lock card, password and card plus password.

According to the settings set by the administrator, the door can be opened only with the card, only with the password or using the card and password together.

With a card identification capacity of up to 1000 users, it is suitable for intensive use in apartments, sites, offices, warehouses, workplaces and similar areas.

Thanks to Wiegand 26 interface support, it works compatible with access control panels.

The illuminated and audible confirmation and warning system provides the user with feedback during the operation.

Adding and deleting cards can be easily done by scanning the card, entering the card number or using the administrator password.

Master card or identification card is not needed and all management operations are carried out with a password for security purposes.

Thanks to the NO and NC relay output, it works in harmony with different door locks and electrical lock systems.

Ring button connection support is available.

Adjustable relay time can be configured between 1 and 250 seconds.

The operating voltage is DC 12V and consumes approximately 1.2A of current, and the lock relay is DC 12V 3A.

Card reading distance is between 5 and 15 cm.

Supports EM ID card technology and is stable in the operating temperature range of -15 to 60 degrees.

It provides reliable use with its durable outer body and long-lasting electronic structure.

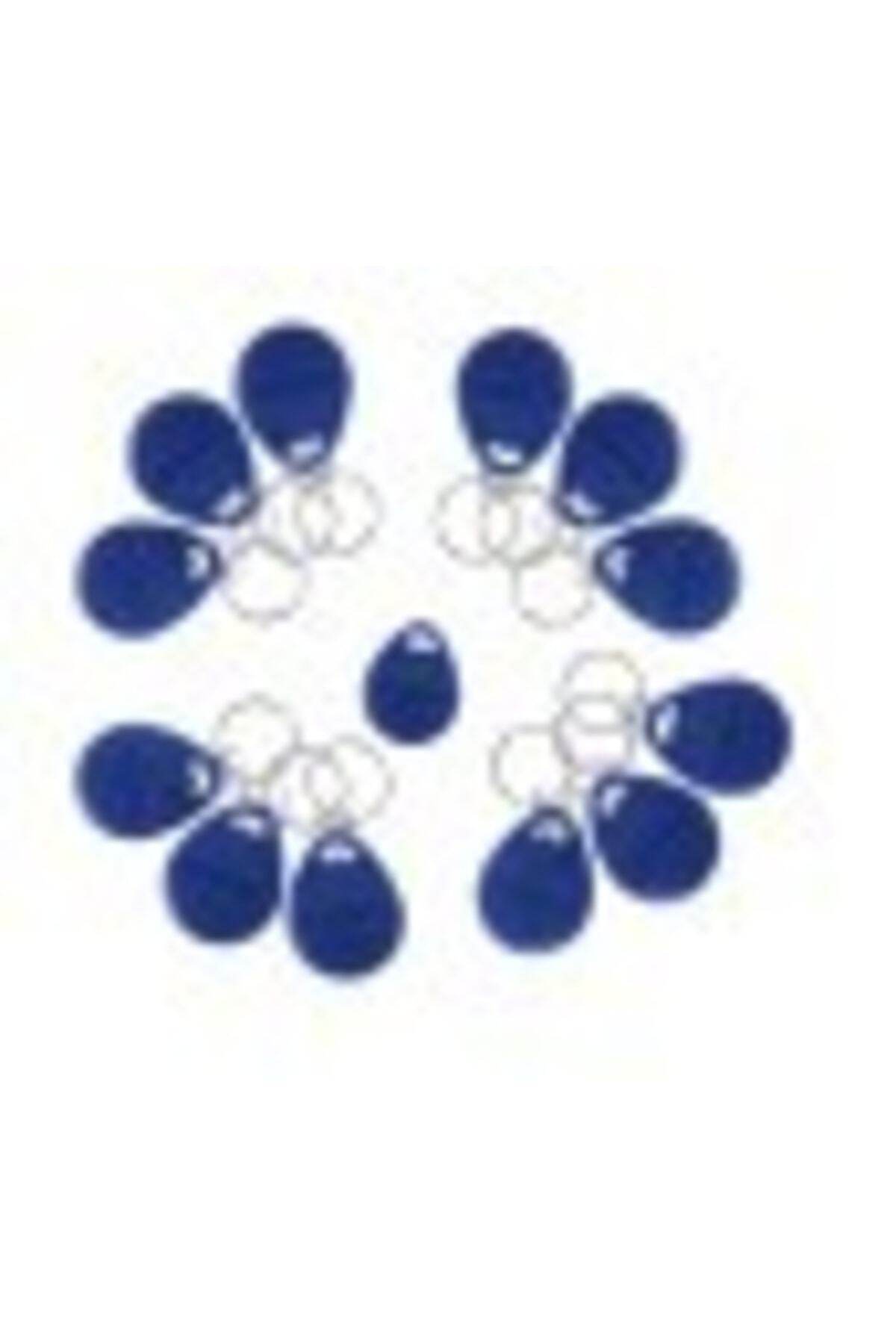

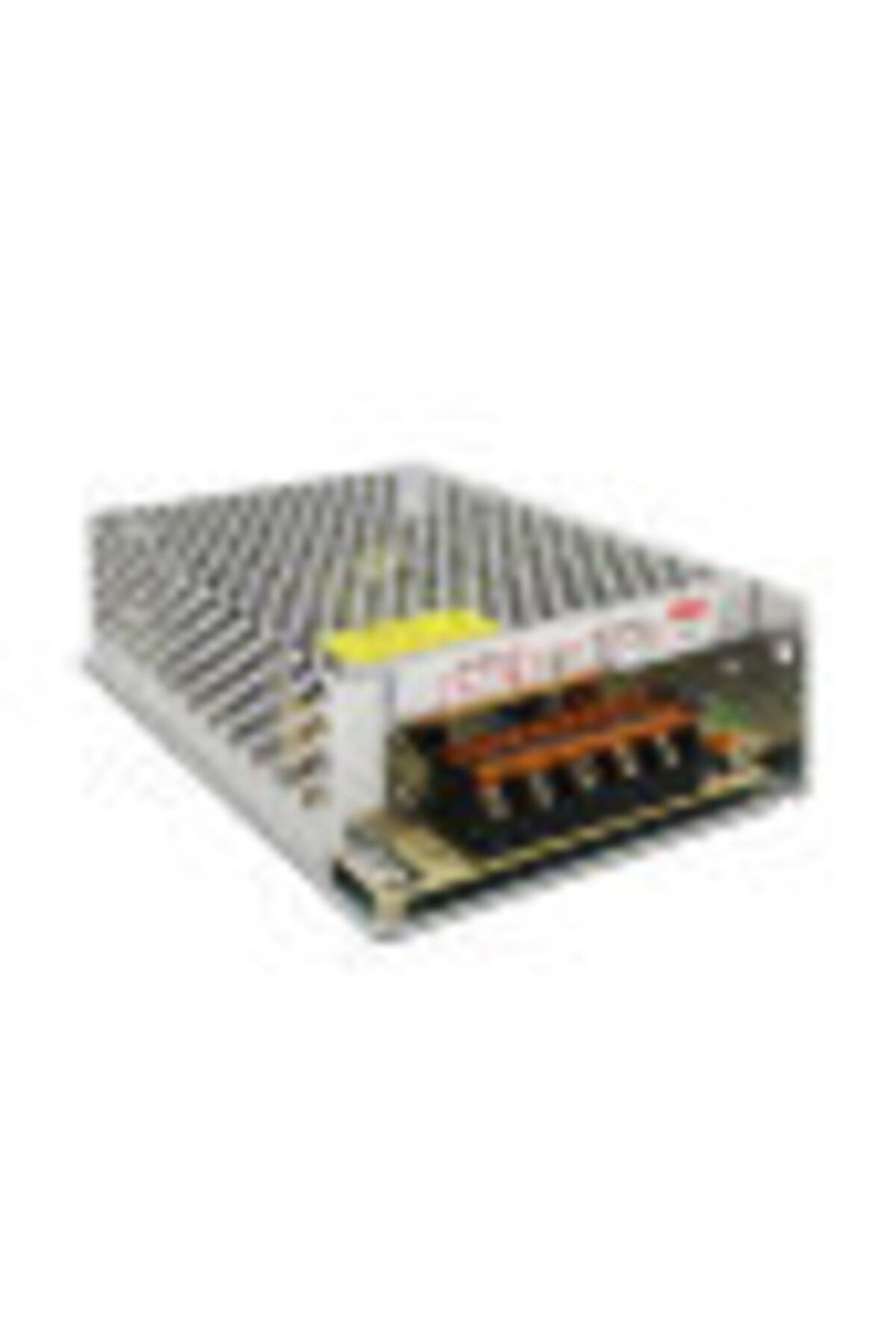

Package includes 1 RFID encrypted door lock, 1 electric door vending machine, 1 12V 3A adapter, 10 proximity key fobs and user manual.
