In closed circuit heating systems, in case of lack of water in the installation or during the filling of the heating installation, air may remain in the pipes and radiator.
-
Since hot water cannot reach the remaining air areas of the installation, that area does not heat up.
-
In this case, air throwers called purgators are used to remove air from the installation.
-
Thanks to the manual purge jets installed on the top of the casting or panel radiators, the air of the radiators can be removed with the help of a switch.
-
In case the installation makes air in the storey buildings, since the air will be collected in the top area of the installation, there is usually a problem of non-heating in the apartments on the top floor.
-

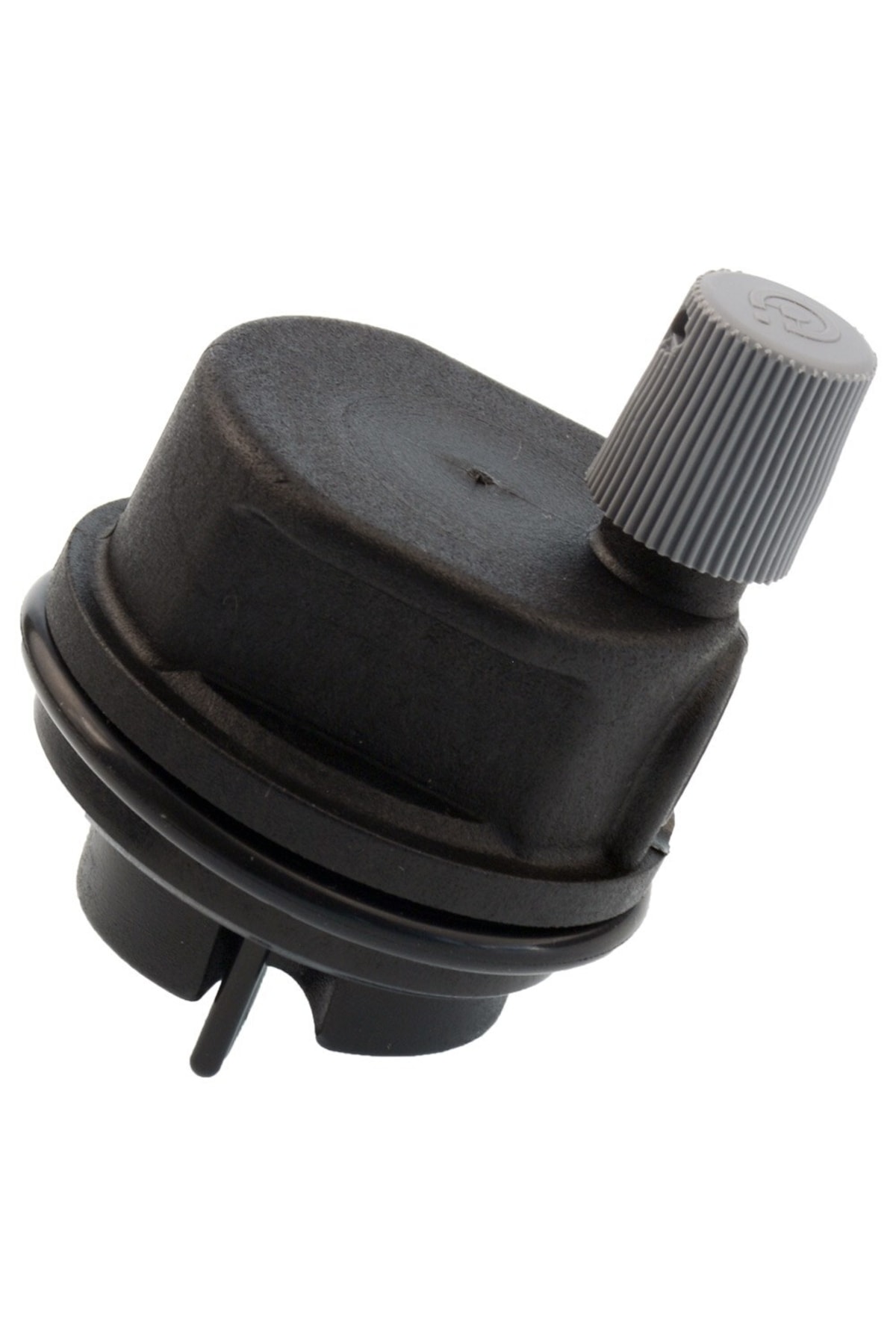

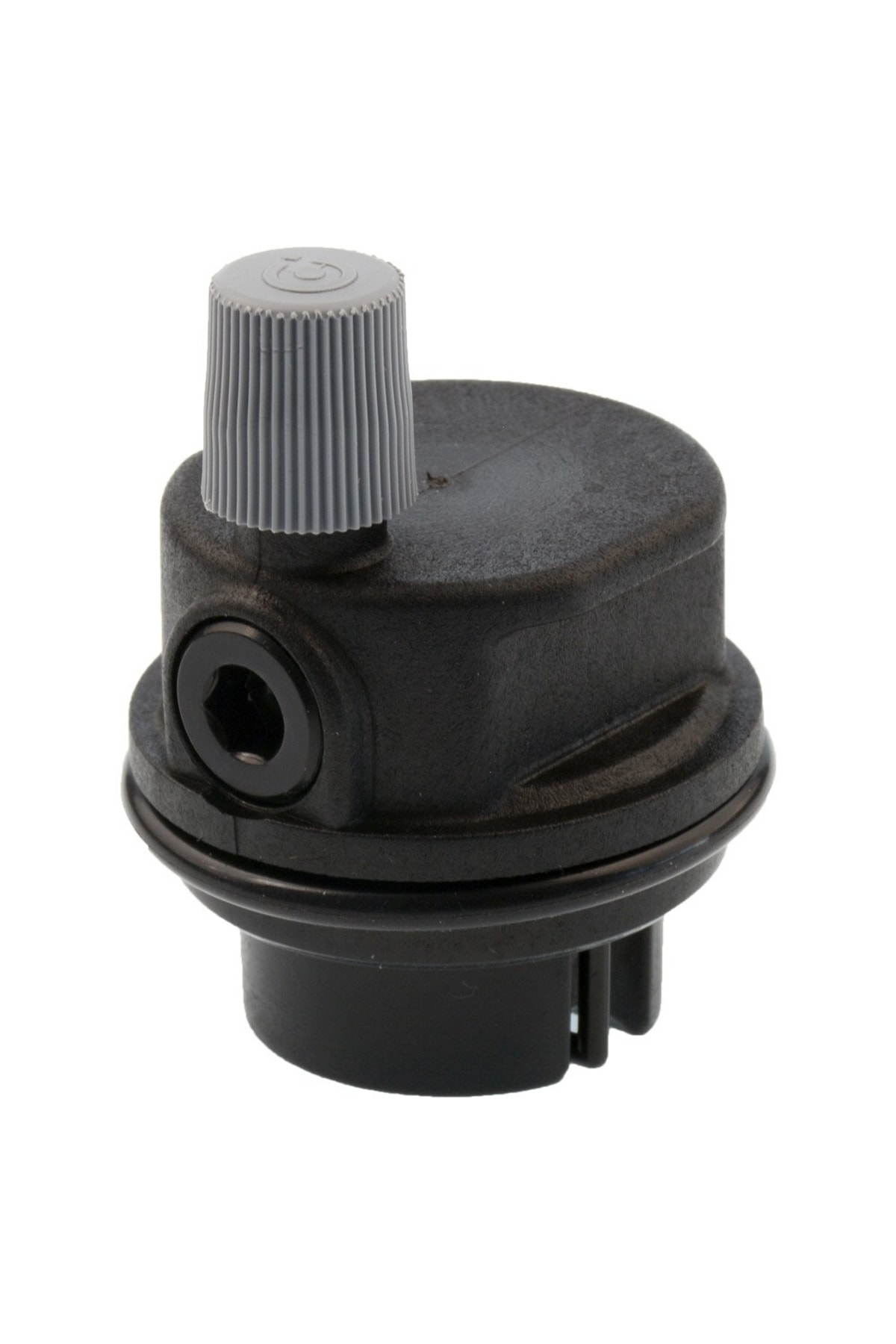

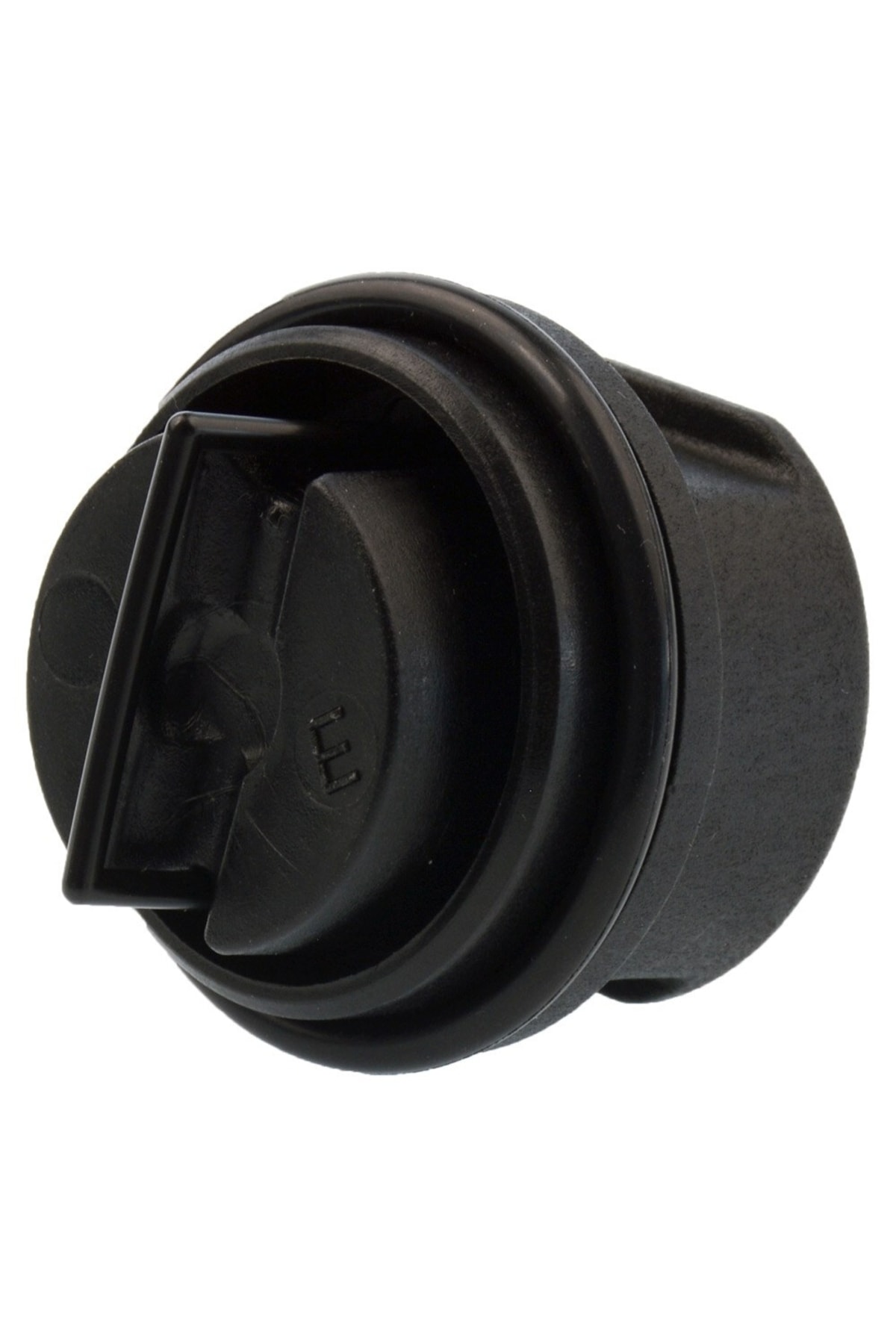

In these cases, automatic air purifiers are attached to the top points of the heating installations and allow the air formed to be discharged automatically.
-
In large buildings such as apartments, an automatic air purifier has to be installed at the top of each column line ( usually corresponding to the roof).
-
It is recommended to place an appropriate volume of air tube under the purifiers so that the air can be collected faster and disposed of in series.
-
Air tube products are also available on our site.
-
Again, in domestic applications, it is appropriate to install an automatic air purifier on the top radiator ( usually the radiator or towel radiator in the bathroom is on top).
-
A check valve or ball valve has to be used just below the purge valve, taking into account the situations where maintenance and replacement of the automatic air purge may be required.
-
Thus, purge maintenance or replacement can be performed without the need for draining the installation.
-
In this product, the check valve is supplied with the product.
-
Compatible with MICROGENUSPLUSSYSTEM21RI, MICROGENUSII24MI, TECIN23MFFI, MICROGENUSPLUS28MFFI, MICROGENUSPLUS28MI, SELECTAINCONDENS27MFFI, MICROGENUSII28MI, MICROGENUSII28MFFI, MICROGENUSII24MFFI, MODULA23MI, MICROGENUSPLUS24MI, SELECTED24MFFIMET, MICROGENPLUS24MFFI, MICROGENUSPLUS24MFFI, SELECTEDIN28MFFI, MICROGENUSPLUS31MFFI, SELECTA24MFFI, SELECTA28MMFFI, SELT28MFFI, SELT28MFFI, SELECT28MFFI, SELECT24MFFI, MODULA23MFFI, ACOFF35RIFF, SELECT24MFFI, MODEFFI, MODEFFIULTIALUSPLUSMFFI, MECROGENUSPLUSPLUS28MFFI, MECROFFI, MECROGENUSPLUSPLUSPLUSS27MFFI, SELTOFFI
