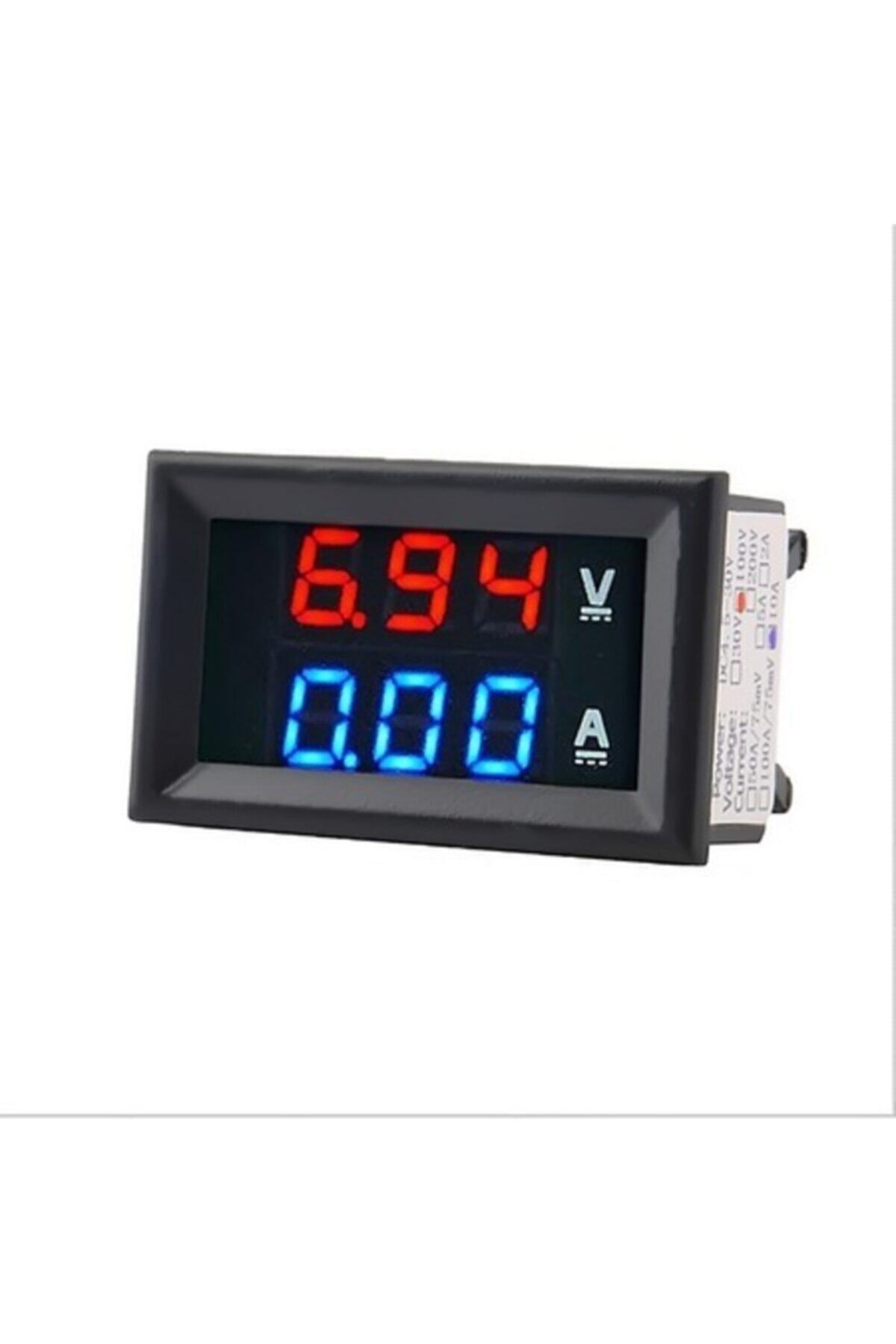

0-100V / 0-10A - Digital Voltmeter product is a panel type measuring instrument. To use the product, you need to mount it on a board or box. It is a very useful solution for measuring voltage and current in compensation or power panels. You can also use the product as a normal gauge by placing it in a small box and connecting a probe. You can read two values after the point in the range of 0-10V. If it is in the range of 10-99V, a value can be read after the point. 0-100V / 0-10A - Digital Voltmeter Technical Specifications Operating voltage: 4.5-30V DC

Operating current: ?20mA

Display: 0.28Inch Bi-color blue and red

Measuring range: DC 0-100V0-10A

Minimum resolution (V): 0.1V

Refresh rate: ?100mS / time

Measuring accuracy: 1% (± 1 digit)

Minimum resolution (A): 0.01A

Operating temperature: -15 to 70 ° c

Working pressure: 80 to 106 kPa

Size: 47 × 28 × 16 mm / 1.85 * 1.10 * 0.63 "

Net Weight: 19 g

Weight: 29 g
