Cuppon SN

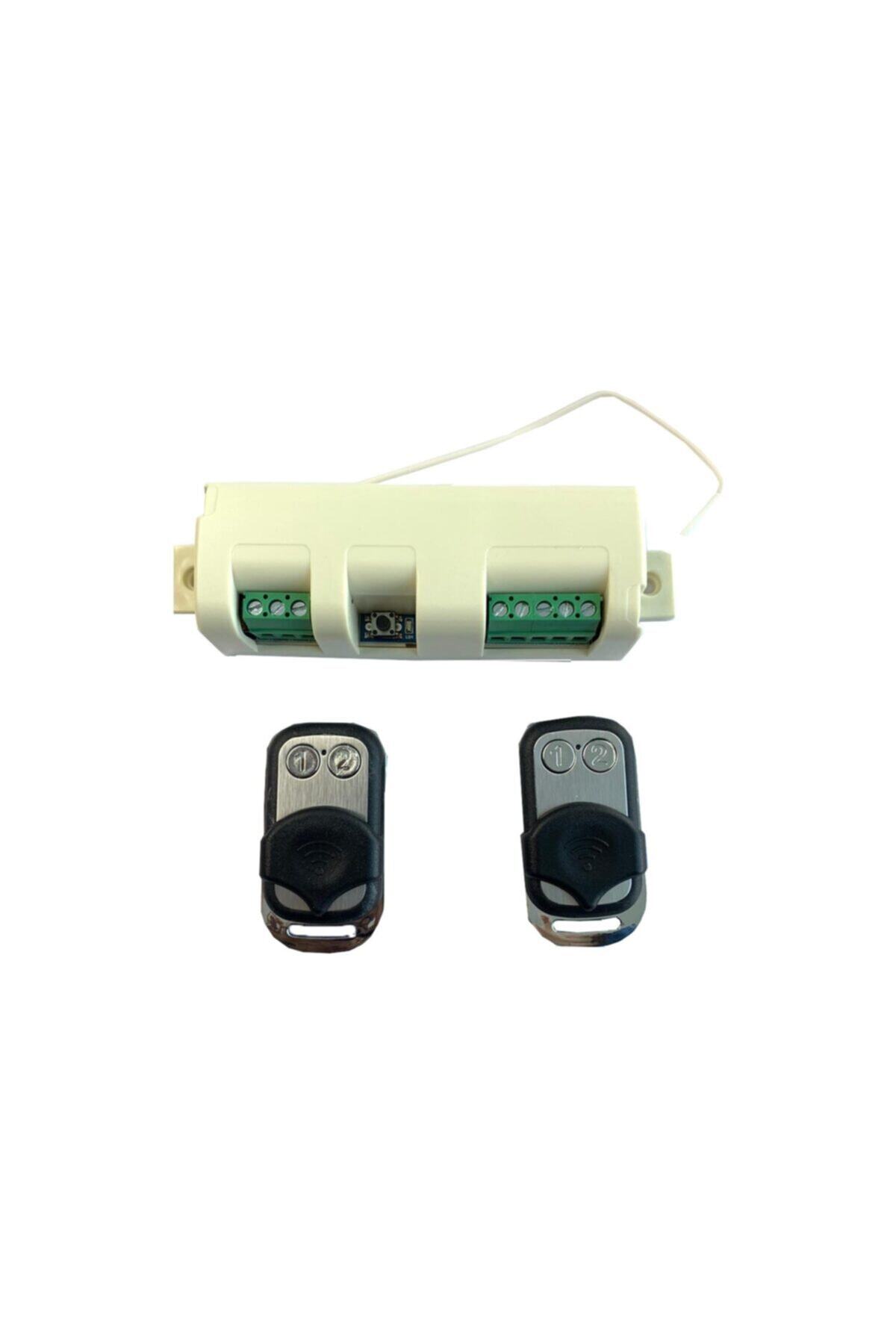

32 2 Operated Roller Shutter Receiver Compatible Brands CUPPON , REMCO , OPTİMUM , KEPMOT RECEIVER CARD

ROLLING SHUTTER AND ROLLING SHUTTER RECEIVER TECHNICAL SPECIFICATIONS:

Product Code SN

32 Plus

Number of Channels: 2 Channels

Frequency: 433.92 MHZ

Operating Voltage: 220 V AC 50Hz

Contact Output: 220V

Can be used on 10a, 2-way motors

Controller Registration: Rolling Code:30, FixCode:42 password identification feature

Code Structure: Rolling Code

Fix Code

Appearance: Polyester, cream

Blue

orange color variant

Dimensions: 132 x 40 x 30 mm

Usage area: shutter, shutter, automation TECHNICAL SPECIFICATIONS IN control room:

PRODUCT CODE: 2BK

NUMBER OF CHANNELS: 2 Channel

FREQUENCY: 433.92 MHZ

OPERATING VOLTAGE: 12V 27A

POWER CONSUMPTION: 5 mW

DISTANCE: 30 Meters

CONTROL MODE: Microprocessor Controlled

EXTERNAL APPEARANCE: Stainless Surface, Chrome Border, Cream

White Color Variety

PASSWORD Upload: UPLOADING a Custom Password for Companies with the Loading Device

DIMENSIONS: 30 x 55 x 15 mm

AREA OF USE: Presentation control Shutter, Shutter, Barrier, Garden Gate, Automation
